Ubiquiti

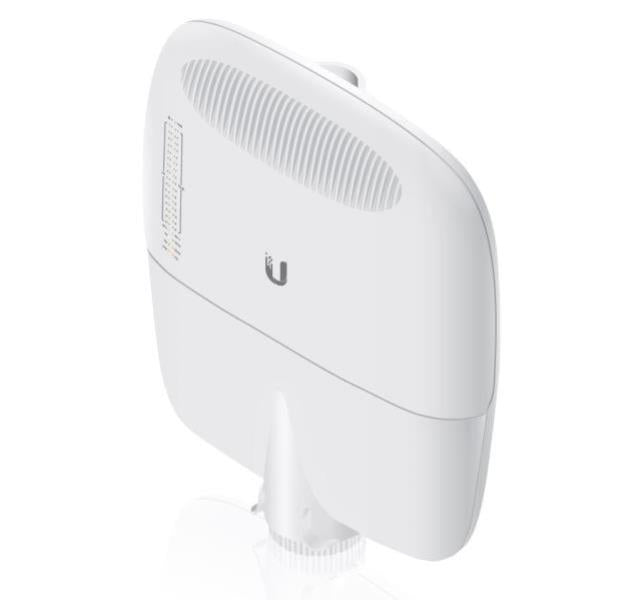

NEW Ubiquiti EdgePoint Outdoor Switch with 16 Gigabit PoE Ethernet Ports and Two SFP+ 10Gbps ports - NEW MODEL

NEW Ubiquiti EdgePoint Outdoor Switch with 16 Gigabit PoE Ethernet Ports and Two SFP+ 10Gbps ports - NEW MODEL

EP-S16

$1,350.00 NZD
$1,350.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
NEW Ubiquiti EdgePoint Outdoor Switch with 16 Gigabit PoE Ethernet Ports and Two SFP+ 10Gbps ports - NEW MODEL
NEW - Ubiquiti EdgePoint Outdoor S16, EP-S16 Application-specific WISP control point with (16) Gigabit PoE Ethernet ports and (2) 10Gbps SFP+ ports.

supports both 24V and 54V 2 Paid and 4 Pair PoE. NEW MODEL!
Features
  • 54VDC, 6A Terminal Block with Dual Power input (Terminal Block + PoE Input)
  • 16 x Gigabit Ethernet Ports and 2 SFP+ Ports
  • PoE Input 54V - 1.5A Passive PoE Input or 54 or 24V, 1.4A Passive PoE
  • PoE Output - (4) 54 or 24V, 1.4A 4-Pair or (12) PoE/PoE+ or 24V/0.7A, 2-pair
  • Outdoor WISP Applications
  • Two 10 Gbps SFP+ Ports
Details
Manufacturer's Code EP-S16
Networking interface (1) RJ45 serial port, (16) 10/100/1000 RJ45 ports, (2) 1/10 Gbps SFP+ ports
Power method (1) DC terminal block, 54V DC, 6A input, *Self-correcting polarity protection on DC terminal block only, diode red protection on all power inputs.
Power supply Min. 54V / 0.8A (Excludes PoE output)
Passive PoE input (2) 54V / 1.5A, 4-pair (+1, 2, 4, 5; - 3, 6, 7, 8) passive PoE, ports 1 and 2, *Do NOT configure port 1 or 2 in PoE output mode if you are using PoE input power sources.
Passive PoE output (4) 54V or 24V /1.4A, 4-pair (+1, 2, 4, 5; - 3, 6, 7, 8) passive PoE, ports 1 to 4, (12) PoE/PoE+ or 24V/0.7A, 2-pair (+ 4, 5; - 7, 8) passive PoE, ports 5 to 16
Power monitoring (1) DC terminal block, input power, (2) RJ45, ports 1 and 2, PoE input or output power, (14) RJ45, ports 3 to 16, PoE output power
supported voltage range 42–56V DC (-48V is NOT supported)
Max. power consumption 40W (Excludes PoE output)
Button Factory reset
LEDs System: power, RJ45 ports: speed/link/activity, PoE, SFP ports: speed/link/activity
Dimensions Without wall-mount: 326.6 x 382.7 x 88.8 mm (12.9 x 15.1 x 3.5"), With wall-mount: 326.6 x 382.7 x 105.5 mm (12.9 x 15.1 x 4.2")
Weight Without wall-mount: 3.4 kg (7.5 lb), With wall-mount: 3.8 kg (8.4 lb)
Enclosure material Diecast aluminum alloy, UV-resistant polycarbonate
Mount Pole/wall mount
Wind loading 153 N at 200 km/h (34 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Ambient operating temperature -40 to 65° C (-40 to 149° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
NDAA Compliant Yes
Details
Warranty Standard 12 Month RTB
