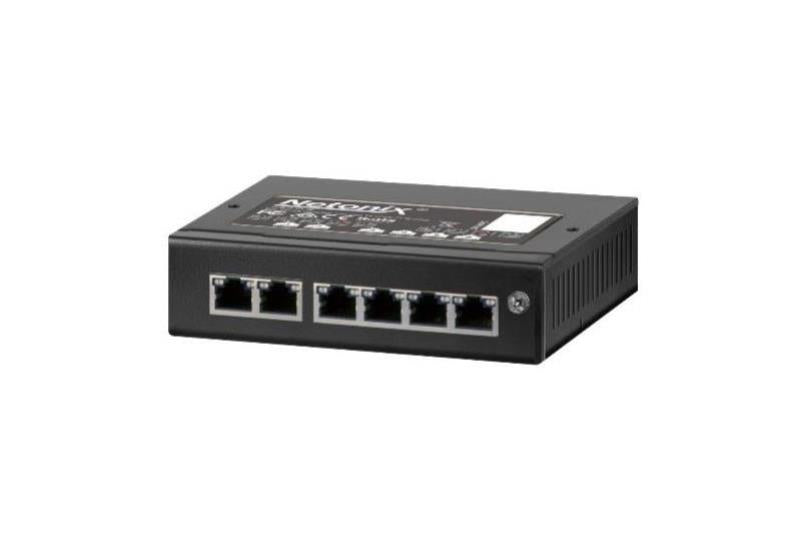

Netonix WS-6-MINI Passive Ethernet PoE Switch

Netonix 6 Port Manged PoE Ethernet Switch WS-6-MINI The Netonix® WISP Switch™ model WS-6-MINI is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range.. i.e. 48VH Ports should only be used by compatible devices such as Ubiquiti airFiber (AF24, AF5), Mimosa (B5, B5c), Cambium (PTP670, PTP820S).. Features Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH) The only switch line on the market that has current sensors on all passive POE ports Port 1 will accept passive 48VH (48-53V) using all 4 pairs like a POE injector used to power an airFIBER 24 GHz DO NOT power the WS-6-MINI with a standard passive POE adapter that only supplies 48V power on 2 pairs If powering the WS-6-MINI with a 48-53V barrel connector power supply port 1 has no POE options, it is just a standard Ethernet port If powering the WS-6-MINI with a barrel connector power supply be sure to connect the ground screw to Earth Ground for ESD protection Details Manufacturer's Code WS-6-MINI Operating Temperature - 24V PoE Ports Pins 4,5 (+) Pins 7,8 (-) Ports 03-06 48V PoE Ports Pins 4,5 (+) Pins 7,8 (-) Ports 03-06 48VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-) Port 02 Dimensions 127mm x 118mm x 32mm Details Mounting Hardware Desktop / Wall mount Key features 25 to 55°C It features a simple yet powerful user interface providing the software features WISPs need in a switch Important: Check device POE type and pinout before enabling 48VH Setting!

Key features

• Note: Stock is Rev F and newer, this model no longer supports a 24VH output
