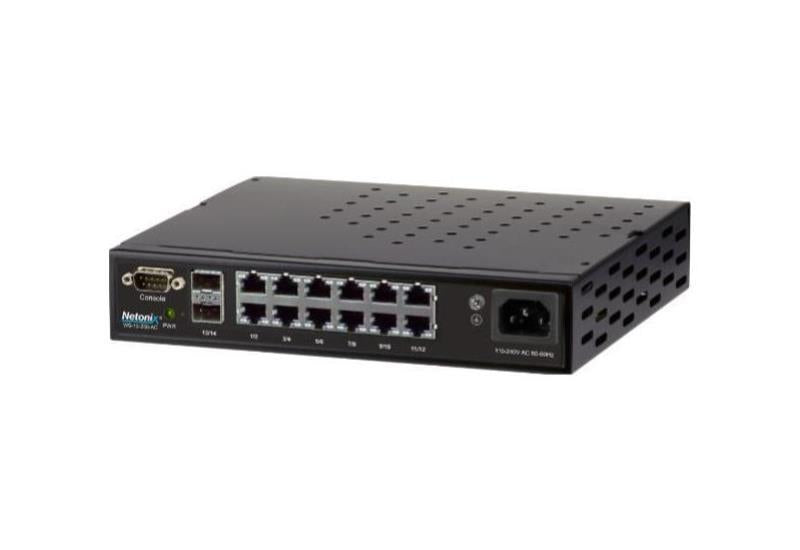

Netonix WS-12-250-AC Managed PoE Switch

Netonix Managed Passive POE Switch 110 / 220 VAC 250 Watt Power Supply (12) Gbps POE Ports (2) SFP Uplink Ports Powers airFIBER / Mimosa / SAF WS-12-250-AC The Netonix® WISP Switch™ model WS-12-250-AC is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range.. i.e.. Features Highest density of PASSIVE POE ports per cubic inch on the market for those small equipment boxes The only switch line on the market that can deliver 1.5A of 24V or 48V on all 4 pairs (24VH and 48VH) The only switch line on the market that has current sensors on all passive POE ports Details Manufacturer's Code WS-12-250-AC Power Input 210-230 VAC Max. Power Consumption 250 Watts Operating Temperature - 24V PoE Ports Pins 4,5 (+) Pins 7,8 (-) 01-12 48V PoE Ports Pins 4,5 (+) Pins 7,8 (-) 01-12 24VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-) 01-04 48VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-) 01-04 Ethernet Ports (12) Gbps POE Ports, (2) SFP Uplink Ports Dimensions 223 mm x 181 mm x 44 mm Details Power Supply IEC Power Cord Mounting Hardware Desktop / Wall Mount Warranty Standard 12 Month RTB Key features 25 to 55°C It features a simple yet powerful user interface providing the software features WISPs need in a switch Important: Check device POE type and pinout before enabling 24VH or 48VH Settings!

Key features

• 24VH Ports should only be used for devices like AF-5X, 48VH Ports should only be used by airFiber (AF24, AF5) and Mimosa (B5, B5c)
