Netonix

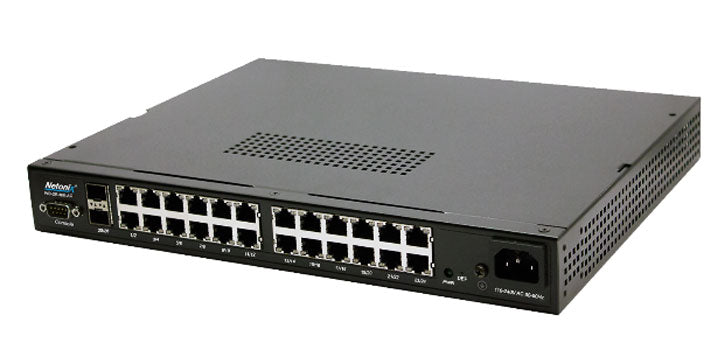

Netonix 24 Port Manged POE Switch + 2 SFP Uplink Ports

Netonix 24 Port Manged POE Switch + 2 SFP Uplink Ports

WS-26-400-AC

$1,672.00 NZD
$1,672.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Netonix 24 Port Manged POE Switch + 2 SFP Uplink Ports
Netonix 24 Port Manged AC Powered POE Switch + 2 SFP Uplink Ports. The Netonix WISP Switch model WS-26-400-AC is designed specifically for the WISP industry with a rugged chassis and extended operating temperature range. It features a simple yet powerful user interface providing the software features WISPs need in a switch.
Features
  • Manufactured and Assembled in North America
  • Standard Desktop / Wall mount
  • Optional 19” rack mount kit
  • Dimensions 343 mm x 273 mm x 44 mm
  • Operating temperature -25 to 55°C
  • Serial console port
  • Passive PoE current sensors on each port
  • Multiple PoE standards supported on one device!
Details
Manufacturer's Code WS-24-400-AC
Power Input 210-230 & 110-120 VAC
Max. Power Consumption 400 Watts
Operating Temperature -25 to 55°C
Passive PoE Configured Per Port via UI 24V 0.75A pins 4,5(+) 7,8(-), 48V 0.75A pins 4,5(+) 7,8(-), 24VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-), 48VH 1.5A pins 1,2,4,5(+) 3,6,7,8(-)
PoE Out Voltage Range 48-50 VDC / 22-24 VDC
Passive PoE Current Sensors Per Port Yes
24V PoE Ports Pins 4,5 (+) Pins 7,8 (-) Ports 01-24
48V PoE Ports Pins 4,5 (+) Pins 7,8 (-) Ports 01-24
24VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-) Ports 01-02
48VH PoE Ports Pins 1,2,4,5 (+) Pins 3,6,7,8 (-) Ports 01-06
Ethernet Ports (24) 10/100/1000 Ethernet Ports, (2) SFP Ports
