Dragino

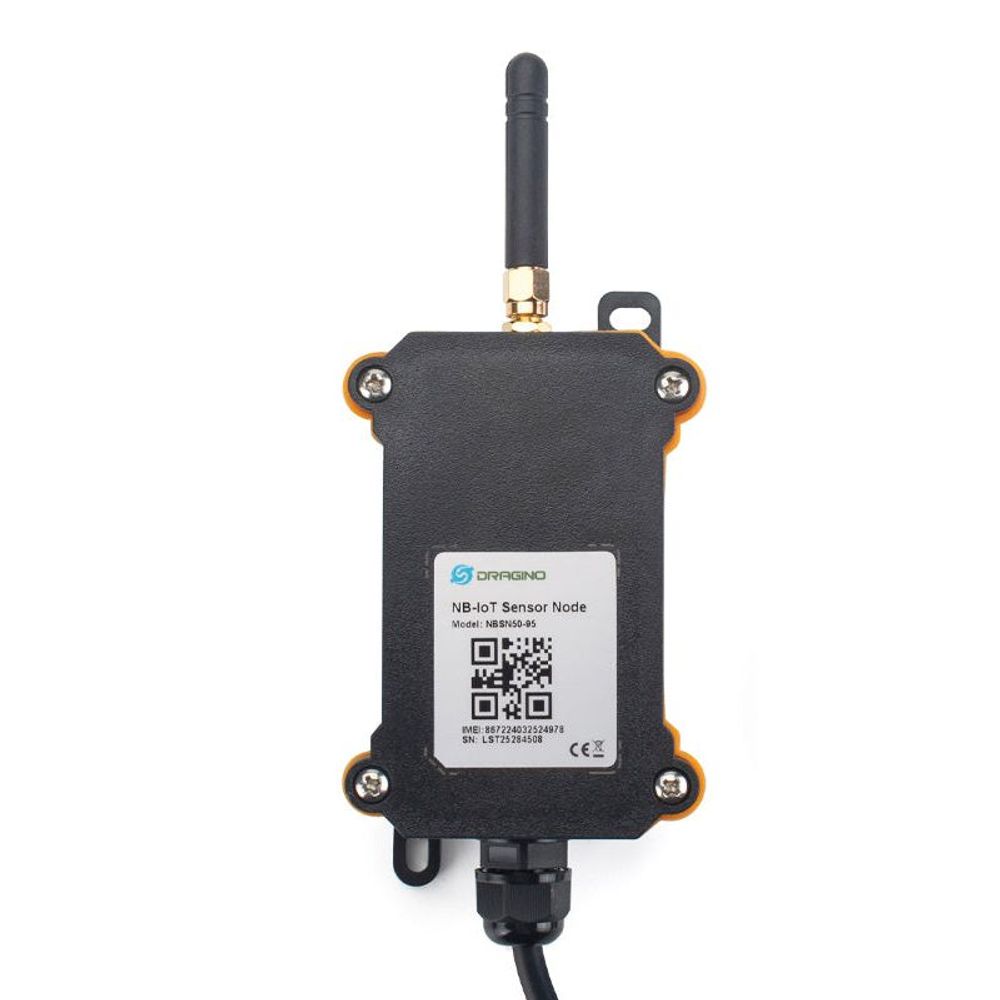

NBSN95 - Dragino NBSN95 Waterproof Long Range Wireless NB-IoT Sensor Node

NBSN95 - Dragino NBSN95 Waterproof Long Range Wireless NB-IoT Sensor Node

NBSN95

$117.00 NZD
$117.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
The Dragino NBSN95 is a Long Range NB-IoT Sensor Node. It is designed for outdoor data logging and powered by an 8500mAh Li/SOCl2 battery for long term use and secure data transmission. System Integrators can use NBSN95 to rapidly deploy NB-IoT sensor nodes for their IoT solutions. The NBSN95 is easy to program, to create and connect things everywhere.

Narrow Band-Internet of Things (NB-IoT) is a standards-based low power wide area (LPWA) technology developed to enable a wide range of new IoT devices and services. NB-IoT significantly improves the power consumption of user devices, system capacity and spectrum efficiency, especially in deep coverage

Need help selecting the right IoT solution?

.

Features
  • STM32L072xxxx MCU
  • NB-IoT Bands: B1/B3/B8/B5/B20/B28 @H-FDD
  • Pre-load bootloader on USART1/USART2
  • MDK-ARM Version 5.24a IDE
  • I2C, LPUSART1, USB, SPI2
  • 3x12bit ADC, 1x12bit DAC
  • 20xDigital I/O
  • Open-source hardware / software
  • IP66 Waterproof Enclosure
  • Ultra-Low Power consumption
  • AT Commands to change parameters
  • Micro SIM card slot for NB-IoT SIM
  • 8500mAh Battery for long term use
Details
Product Code NBSN95
Module Quectel BC95-G
Protocol CoAP, UDP, MQTT
Support Bands B1 @H-FDD: 2100MHz, B3 @H-FDD: 1800MHz, B8 @H-FDD: 900MHz, B5 @H-FDD: 850MHz, B20 @H-FDD: 800MHz, B28 @H-FDD: 700MHz
MCU Spec STM32L072CZT6, Flash:192KB, SRAM:20KB, EEPROM:6KB, Clock Speed: 32Mhz
Supply Voltage 1.8v ~ 3.6v
Operating Tempature -40 ~ 85°C
I/O pins Refer STM32L072CZT6 datasheet
Power Consumption STOP Mode: 10 µA @ 3.3v, See Power Analyze Document for more.
Battery Li/SOCI2 unchargable battery, Capacity: 8500mAh, Self Discharge: <1% / Year @ 25°C, Max continuously current: 500mA, Max boost current: 2A, 1 second
Device Size 14.5 x 8 x 5 cm
Device Weight 180 g
Details
Contains 1 x NBSN95 NB-IoT Sensor Node, 1 x External NB-IoT antenna





Specifications





Details
Product Code NBSN95
Module Quectel BC95-G
Protocol CoAP, UDP, MQTT
Support Bands B1 @H-FDD: 2100MHz, B3 @H-FDD: 1800MHz, B8 @H-FDD: 900MHz, B5 @H-FDD: 850MHz, B20 @H-FDD: 800MHz, B28 @H-FDD: 700MHz
MCU Spec STM32L072CZT6, Flash:192KB, SRAM:20KB, EEPROM:6KB, Clock Speed: 32Mhz
Supply Voltage 1.8v ~ 3.6v
Operating Tempature -40 ~ 85°C
I/O pins Refer STM32L072CZT6 datasheet
Power Consumption STOP Mode: 10 µA @ 3.3v, See Power Analyze Document for more.
Battery Li/SOCI2 unchargable battery, Capacity: 8500mAh, Self Discharge: <1% / Year @ 25°C, Max continuously current: 500mA, Max boost current: 2A, 1 second
Device Size 14.5 x 8 x 5 cm
Device Weight 180 g
