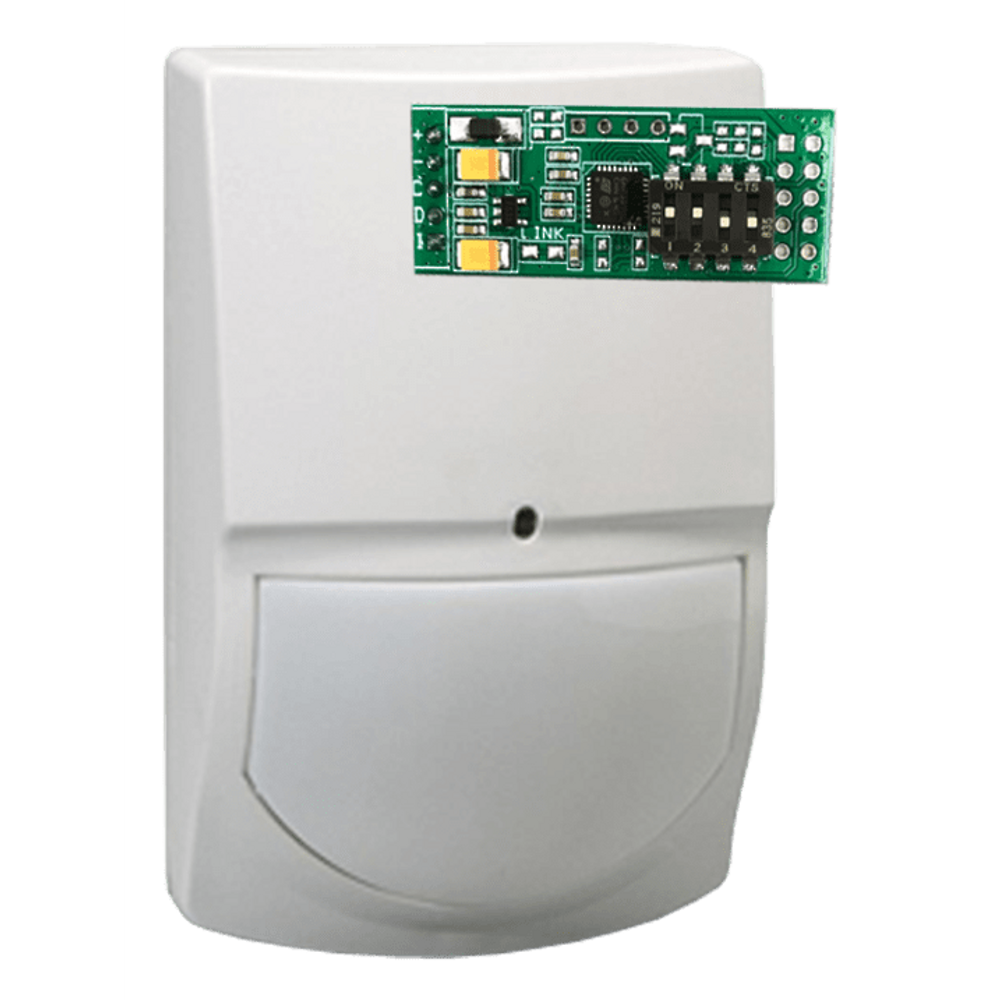

NANO-SWAN QUAD - SWAN QUAD with Mini Zone Expander that wires directly onto keypad bus of ESL & ESX

SWAN QUAD with Mini Zone Expander that wires directly onto keypad bus of ESL & ESX

    Specifications:

Compatible with: ESL, ESX, Elite-S, Elite S-Lite
Power: 9-16VDC, 20mA
Communication Protocol: Freelink (supervised)
Cable Run: 100m Max. (on 0.2mm 4-Core)

    Features:

NANO-Z1 Pre installed inside Swan Quad
Monitored Alarm Contact
Monitored Tamper Contact
Supervised, if the device is disconnected from the system a fault is triggered
Multiple Nano Swan Quads can be connected to the same system
Allows extra detectors to be added, without using zone doubling
Each device take up one radio zone slot

NANO-SWAN QUAD Paperwork

See NANO-Z1 for more ideas and information
