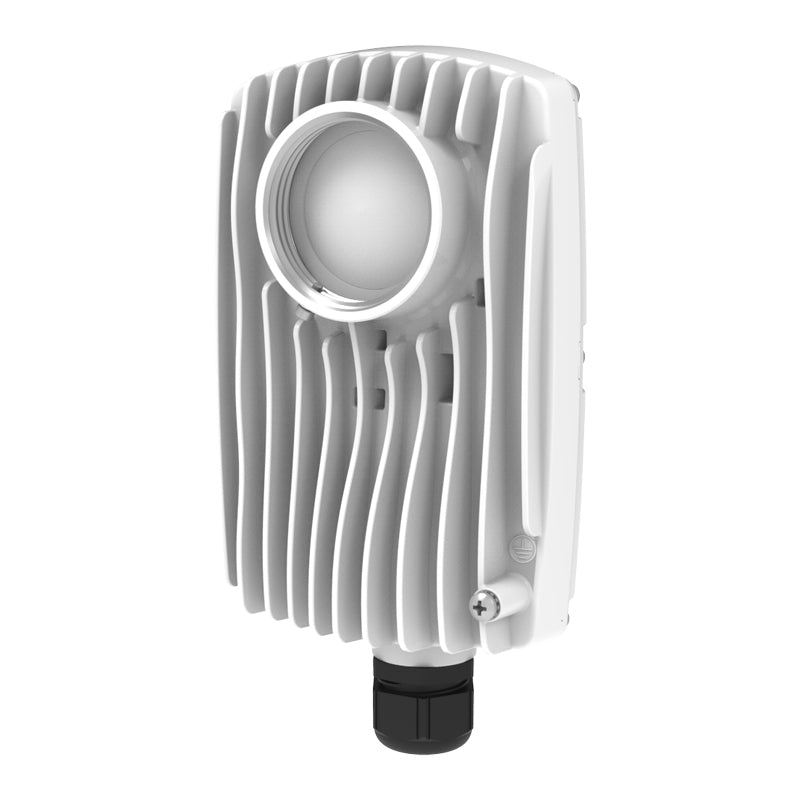

Mimosa C6x PTMP Client/PTP Backhaul Radio

The Mimosa C6x WISP CPE sets a new bar for affordable speed, as well as interference reduction. With the latest in Wi-Fi 6E OFDMA technologies, and access to new 6 GHz bands (which varies by country), the C6x achieves extremely low latency speeds of up to 1.75 Gbps. The C6x can be used as a directional PTP (point-to-point) backhaul, or PTMP (point-to-multipoint) client radio. A license key is required for PTP operation.

The C6x’s native 8 dBi gain can be increased to 12, 16, 20, or 25 dBi using Mimosa’s modular X-series twist-on antennas, offering the ease and simplicity of integrated radios, but with so much more flexibility for short to long range deployments.

The C6x reduces in-band noise impact across the operating channel with dramatically smaller 2 MHz resource units (RU) sizes instead of legacy OFDM solutions, where any noise impacted the full channel. Thanks to Wi-Fi 6E and OFDMA, the C6x can even be used in dense, urban environments.

Achieving up to 1.75 Gbps in PTMP (point-to-multipoint) deployments, the C6x pairs together with new multi-user OFDMA scheduling and beamforming technologies on the A6 access point to enable massive subscriber scaling, advanced noise management, and access to the new, low-noise 6 GHz band.

The C6x is IP67 rated, which means it can withstand the harshest elements and environments. Coupled with next-gen RF noise fighting features and new low-noise 6 GHz band support, the C6x leads the way in dependable connectivity.
