Milesight IoT

MIlesight UR32 LIte 3G/4G Industrial Cellular Router

MIlesight UR32 LIte 3G/4G Industrial Cellular Router

UR32L-L00AU

$324.00 NZD
$324.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

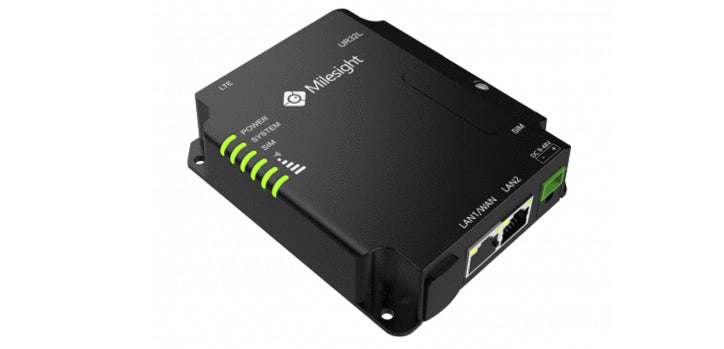

MIlesight UR32 LIte 3G/4G Industrial Cellular Router
MIlesight UR32 LIte 3G/4G Industrial Cellular Router. The Milesight UR32L is a cost-effective industrial cellular router with embedded intelligent features that are designed for multifarious M2M/IoT applications. Global WCDMA and 4G LTE carrier supported make this drop-in connectivity a great help for operators in maximizing uptime. UR32L also has 2 fast Ethernet ports, which delivers users an uninterrupted internet access

Integrating watchdog and multi-link failover detection, UR32L provides stable communications. Combining DeviceHub and MilesightVPN, UR32L can help you manage network easily and efficiently.

Easy deployment and comprehensive remote device management makes UR32L versatile in most of IoT/M2M applications.
Features
  • Lite Industrial Cellular Router
  • Reliable, Secure and Manageable
  • Heavy Cast Aluminum Casing
  • Industrial-grade Design
  • -40°C to 70°C Operating Temperature
  • Fit Into Limited Space with a Compact Size
  • 150 Mbps Downlink & 50 Mbps Uplink
  • Global 4G/3G Frequency Bands Compatibility
  • Stateful Firewall VPN
  • VPN (OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE)
  • SNMP v1/v2c/v3
Details
Product Code UR32L-L00AU
CPU ARM Cortex-A7?528 MHz
Memory 128 MB DDR3 RAM and 128MB Flash
Interfaces 1 × WAN + 1 × LAN or 2 × LAN
Data Rate 10/100 Mbps
Connectors 1 × 50 ? SMA Connectors (Center PIN: SMA Female)
SIM Slots 1 (Mini SIM-2FF?
Freq bands 3G:B1/B2/B5/B8 WCDMA, 4G:B1/B2/B3/B4/B5/B7/B8/B28@FDD LTE, B40@TDD LTE
Digital IO 1 × DI + 1 × DO
VPN DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
Network Protocols IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS,VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
Power Input Connector 2-pin with 5.08 mm terminal block
Input Voltage 9-48 VDC, with Surge-Protection and Reverse Polarity Protection
Power Consumption Typical 1.8 W, Max 2.2 W
Ingress Protection IP30
Housing & Weight Metal, 271 g
Dimensions 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
Mounting Desktop, Wall or DIN Rail Mounting
Details
Contains UR32L, 1 x PSU (48v), 1 x SMA mobile antennas, DIN rail mount, Ethernet cable, screw pack, warranty card
