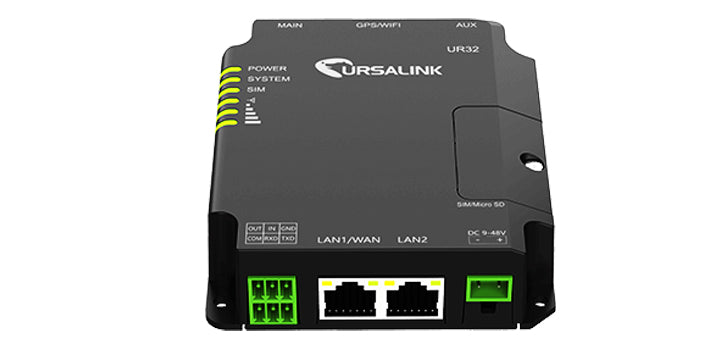

Milesight UR32 Industrial 3G/4G/LTE PoE DIN Mountable Router with I/O, Serial and Wi-Fi

Milesight UR32 Industrial 3G/4G/LTE PoE DIN Mountable Router with I/O, Serial and Wi-Fi

UR32-L00AU-W-P

$612.00 NZD
$612.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Milesight UR32 Industrial 3G/4G/LTE PoE DIN Mountable Router with I/O Serial and Wi-Fi
Milesight UR32 Industrial 3G/4G/LTE PoE DIN Mountable Industrial Router with Wi-Fi. The Milesight UR32 is a cost-effective industrial cellular router with embedded intelligent software features that are designed for multiple M2M/IoT applications. Global WCDMA and 4G LTE carrier support makes this great for operators when maximizing uptime. Integrating an embedded cellular modem and dual SIM function, the UR32 provides 3G/4G connectivity with up to 150 Mbps download and 50 Mbps uplink, it also has 2 fast Ethernet ports and supports 802.11b/g/n WiFi. Easy deployment and comprehensive remote device management makes the UR32 versatile in most IoT/M2M applications.



. .

Features
  • Dual SIM cards for backup between multiple carriers
  • Ethernet, I/O, serial port, Wi-Fi, GPS for connecting diverse field assets
  • Rugged enclosure, optimized for DIN rail or shelf mounting
  • 3-year warranty included
Details
Product Code UR32-L00AU-W-P
CPU 528 MHz, ARM Cortex A7
Memory 128 MB Flash, 128 MB DDR3 RAM
Storage 1 × Micro SD
Interfaces 1 × WAN + 1 × LAN or 2 × LAN (PoE PSE Optional)
Data Rate 10/100 Mbps (Auto-Sensing)
Connectors 2 × 50 ? SMA (Center PIN: SMA Female)
SIM Slots 2
Freq bands 3G:B1/B2/B5/B8 WCDMA, 4G:B1/B2/B3/B4/B5/B7/B8/B28@FDD LTE, B40@TDD LTE
WiFi Modes AP or client
Serial 1 × RS232 Terminal block ( RS485 Optional) Baud Rate 300bps to 230400bps
Digital IO 1 × DI + 1 × DO
Network Protocols PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH
Power Input Connector 2-pin with 5.08 mm terminal block
Input Voltage 9-48 VDC (48 V power input is needed for PoE output)
Power Consumption Typical 1.9 W, Max 2.4 W (In Non-PoE mode)
Power Output 2 × 802.3 af/at PoE output
Ingress Protection IP30
Housing & Weight Metal, 271 g
Dimensions 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
Mounting Desktop, Wall or DIN Rail Mounting
Details
Contains UR32, 1 x PSU (48v), 2 x SMA mobile antennas, 1 x RP-SMA Wifi Antenna, DIN rail mount, Ethernet cable, screw pack, warranty card
