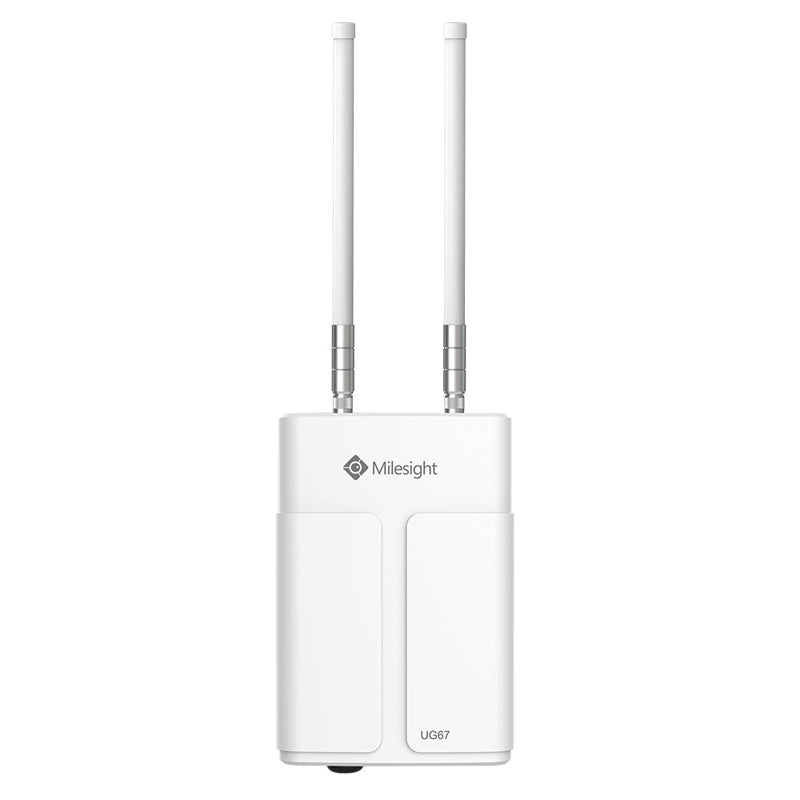

Milesight UG67 Indoor/Outdoor EU868/IN865 LoRaWAN Base Station with WiFi, GPS and PoE Support

Milesight UG67 Indoor/Outdoor EU868/IN865 LoRaWAN Base Station with WiFi, GPS and PoE Support

UG67-868M

$295.00 NZD
$295.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Ursalink UG67 Indoor/Outdoor EU868/IN865 LoRaWAN Base Station with WiFi, GPS and PoE Support
The latest and greatest! The Milesight UG67 is a robust 8-channel outdoor LoRaWAN gateway. Adopting the SX1302 LoRa chip and high-performance quad-core CPU, the UG67 supports connections with more than 2000 sensors.

UG67 has line of sight of 10km+ and an IP67 waterproof case, which is ideally suited to smart agriculture, smart metering, smart city and many other outdoor applications. The UG67 supports multiple back-haul options with Ethernet or Wi-Fi and also has integrated mainstream network servers (such as TTN, ChirpStack, etc.) and its own built-in network server.

With the addition of the latest Semtech LoRa Chip the SX1302, the UG67 can handle a higher amount of traffic with lower power consumption. The SX1302 can also support SF5 and SF6.



. .

Features
  • Quad-core industrial processor
  • Equipped with the latest Semtech SX1302 chip
  • 8 half/full-duplex channels
  • IP67 waterproof enclosure
  • Wall or pole mounting
  • PoE capable
  • Capacitor for sending alarms in case of power failure
  • supports Ethernet and WiFi backhaul
  • Devicehub and Milesight IoT Cloud ready
  • Compatible with mainstream network servers
  • Embedded Python SDK
  • Integrated LoRa Antenna, external antennas sold separately
  • Easily onboard and monitor 100’s of LoRaWAN Gateways with the Scopious onboarding tool
Details
CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory 512 MB DDR4 RAM
Flash 8 GB eMMC
LoRaWAN® Antennas Fully Integrated Internal Antenna, External antennas sold separately
Channels 8
Frequency Band RU864/IN865/EU868
Sensitivity -140dBm Sensitivity @292bps
Output Power 27dBm Max
Protocol V1.0 Class A/Class C and V1.0.2 Class A/Class C
Ethernet Port 1 × RJ45 (PoE PD supported)
Physical Layer 10/100/1000 Base-T (IEEE 802.3)
Mode Full or Half Duplex (Auto-Sensing)
Wi-Fi Antenna Fully Integrated Internal Antenna
Standards IEEE 802.11 b/g/n
Tx Power 13-18dbm
GPS Antenna Internal Antenna
Sensitivity -167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition
Position Accuracy <2.5 m CEP
Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2
Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management Web, CLI, On-demand dial up, DeviceHub, Milesight IoT Cloud
Reliability WAN Failover
Power Supply 802.3 af PoE input or 12 VDC with M12 Connector
Consumption Typical 3.6 W, Max 4.8 W
Ingress Protection IP67
Dimensions 250 x 172 x 92 mm
Mounting Wall or Pole Mounting
Built-in Watchdog, RTC, Timer
Certification CE, FCC
Operating Temperature -40°C to +70°C (-40? to +158?)
Relative Humidity 0% to 95% (non-condensing) at 25°C/77?
Details
External Antennas Sold Separately
