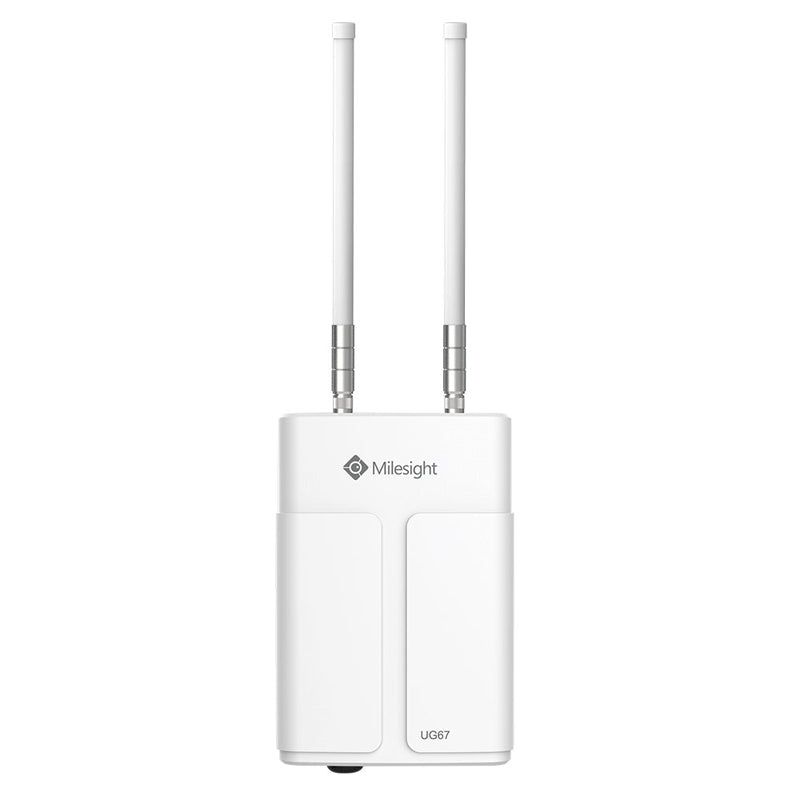

Milesight UG67 Indoor/Outdoor AS923 LoRaWAN Base Station with WiFi, GPS, PoE Support and Cellular connectivity

Milesight UG67 Indoor/Outdoor AS923 LoRaWAN Base Station with WiFi, GPS, PoE Support and Cellular connectivity

UG67-L00AU-915M

$1,944.00 NZD
$1,944.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Milesight UG67 Indoor/Outdoor AS923 LoRaWAN Base Station with WiFi, GPS, PoE Support and LTE/4G Cellular connectivity
The Milesight UG67 is a robust 8-channel outdoor AS923/AU915 LoRaWAN gateway with 4G/LTE Cellular backhaul built in. Adopting the SX1302 LoRa chip and high-performance quad-core CPU, the UG67 supports connections with more than 2000 sensors.

UG67 has line of sight of 10km+ and an IP67 waterproof case, which is ideally suited to smart agriculture, smart metering, smart city and many other outdoor applications. The UG67 supports multiple back-haul options with Ethernet, Wi-Fi and cellular connectivity and also has integrated mainstream network servers (such as TTN, ChirpStack, etc.) and its own built-in network server.

With the addition of the latest Semtech LoRa Chip the SX1302, the UG67 can handle a higher amount of traffic with lower power consumption. The SX1302 can also support SF5 and SF6.
Please Note this Gateway does not include External LoRa Antennas we normally recommend the ANT-281 for normal use or the ANT-282 for a high Gain antenna option. You will need a N-Male to N-Male Coax Cable to Connect these Antennas to the Gateway, a good option for this would be the P-31 (100cm Lead) .



. .

Features
  • Quad-core industrial processor
  • Equipped with the latest Semtech SX1302 chip
  • 8 half/full-duplex channels
  • IP67 waterproof enclosure
  • Wall or pole mounting
  • PoE capable
  • Capacitor for sending alarms in case of power failure
  • Multiple backhaul backups with Ethernet, cellular(4G/3G) and Wi-Fi
  • Devicehub and Milesight IoT Cloud ready
  • Compatible with mainstream network servers
  • Embedded Python SDK
  • Integrated LoRa Antenna, external antennas sold separately
  • Easily onboard and monitor 100’s of LoRaWAN Gateways with the Scopious onboarding tool
Details
CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
Memory 512 MB DDR4 RAM
Flash 8 GB eMMC
LoRaWAN® Antennas Fully Integrated Internal Antenna, External antennas sold separately
Channels 8
Frequency Band US915/AU915/KR920/AS923
Sensitivity -140dBm Sensitivity @292bps
Output Power 27dBm Max
Protocol V1.0 Class A/Class C and V1.0.2 Class A/Class C
Ethernet Port 1 × RJ45 (PoE PD supported)
Physical Layer 10/100/1000 Base-T (IEEE 802.3)
Mode Full or Half Duplex (Auto-Sensing)
Wi-Fi Antenna Fully Integrated Internal Antenna
Standards IEEE 802.11 b/g/n
Tx Power 13-18dbm
Cellular Antenna Fully Integrated and Internal Antenna
SIM Slot 1
Cellular Channels B1/B2/B3/B4/B5/B7/B8/B28/B40
GPS Antenna Internal Antenna
Sensitivity -167dBm@Tracking, -149dBm@Acquisition, -161dBm@Re-acquisition
Position Accuracy <2.5 m CEP
Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc.
VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Access Authentication CHAP/PAP/MS-CHAP/MS-CHAPV2
Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Management Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud
Reliability WAN Failover
Power Supply 802.3 af PoE input or 12 VDC with M12 Connector
Consumption Typical 3.6 W, Max 4.8 W
Ingress Protection IP67
Dimensions 250 x 172 x 92 mm
Mounting Wall or Pole Mounting
Built-in Watchdog, RTC, Timer
Certification CE, FCC
Operating Temperature -40°C to +70°C (-40? to +158?) Reduced Cellular Performance Above 60°
Relative Humidity 0% to 95% (non-condensing) at 25°C/77?
Details
External Antennas Sold Separately
