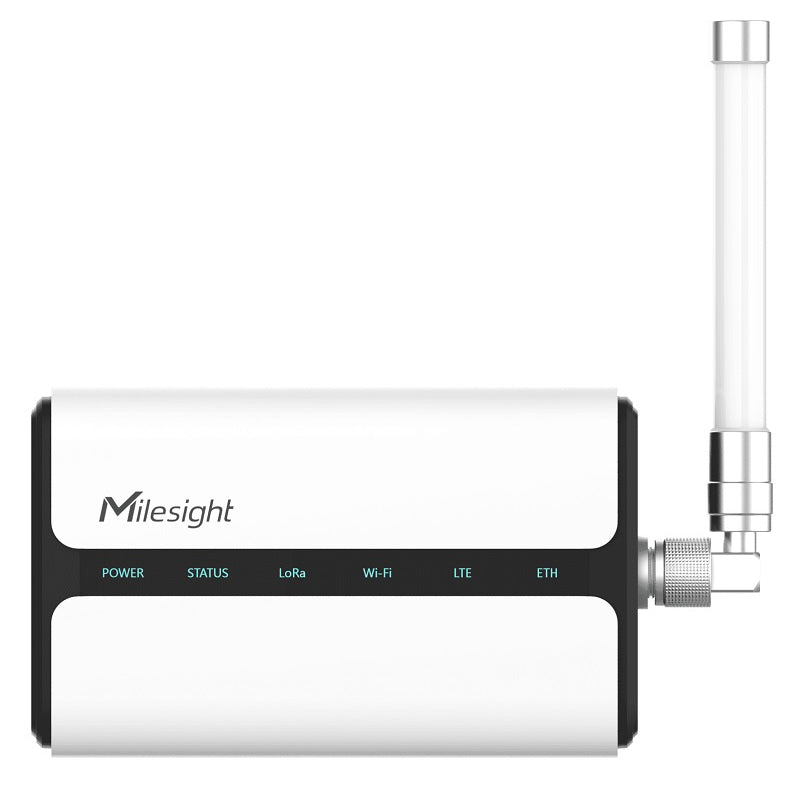

Milesight UG65 Indoor AS923 LoRaWAN IoT Gateway with WiFi and PoE Support

Milesight UG65 Indoor AS923 LoRaWAN IoT Gateway with WiFi and PoE Support The Milesight UG65 is an affordable 8-channel indoor LoRaWAN IoT gateway.. The UG65 has line of sight up to 10km and can cover about 2km in an urbanized environment, which is ideally suited to smart offices, smart buildings and many other indoor applications. The UG65 supports multiple back-haul backups with Ethernet, Wi-Fi connections and has integrated mainstream LoRa network servers (such as TTN, ChirpStack, etc.).... Features IP65 Rating NXP Quad-Core Processor Semtech SX1302 LoRa Chip Multiple Backhaul Connectivity options Embedded Network Server Compatible with Multiple Network Servers Milesight Cloud compliant supports 2000+ end devices Details Manufacturer's Code UG65-915M-EA CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53 Memory 512 MB DDR4 RAM Flash 8 GB eMMC LoRaWAN Antenna Internal Antenna and 1 × 50 ? N-Female External Connector) Channels 8 Frequency Bands AU915/AS923 Sensitivity - Output Power 27dBm Max Protocol V1.0 Class A/Class C and V1.0.2 Class A/Class C Ethernet 1 × RJ45 (PoE PD support) Data Rate 10/100/1000 Mbps (Auto-Sensing) Mode Full or Half Duplex (Auto-Sensing) Wi-Fi Antenna Integrated and Internal Antenna Standards IEEE 802.11 b/g/n Tx Power 13-18dbm Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS,HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. VPN OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter Power Supply DC Jack Connector for 9-24 VDC power supply or 802.3 af PoE input Consumption ? 4.2W Ingress Protection IP65 Dimensions 180 x 110 x 56.5 mm Mounting Desktop, Wall or Pole Mounting Reset Button 1 × RST Console Port Type-C Port Operating Temperature - Storage Temperature - Relative Humidity 0% to 95% (non-condensing) at 25°C/77? Firmware & Datasheets and User Guides Blog Wiki Knowledge Base Case Studies IoT Academy Details Includes Mounting Bracket (Pole/Wall), Mounting Screws, RA External Antenna, 12V 1A Power Supply included, Ethernet Cable and Warranty Card

Key features

• 140dBm Sensitivity @292bps
• 40°C to +70°C (-40? to +158?)
• 40°C to +85°C (-40? to +185?)
• Adopting the SX1302 LoRa chip and a high-performance quad-core CPU, the UG65 supports connections with more than 2000 nodes
• The UG65 also has a built-in network server and Ursalink Cloud for easy deployment
