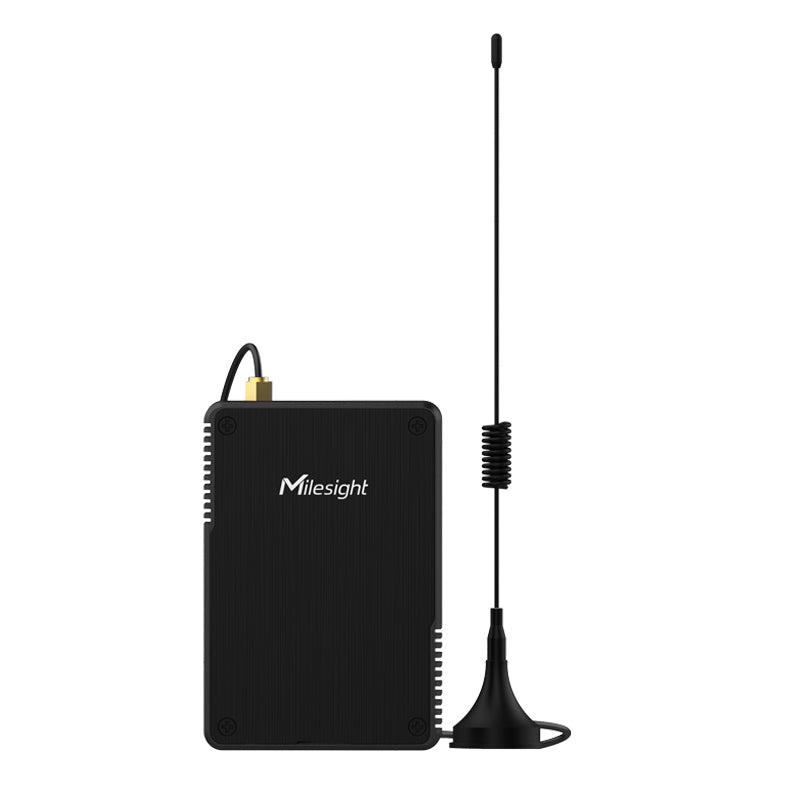

Milesight UG56 Industrial AS923/AU915 LoRaWAN IoT gateway with PoE support

Milesight UG56 Industrial AS923/AU915 LoRaWAN IoT gateway with PoE support Milesight UG56 Industrial AS923/AU915 LoRaWAN IoT gateway with PoE support... The compact size makes it possible to embed UG56 into a small equipment cabinet. Users can install the magnetic antenna or fiber-glass antenna (optional) at a signal-optimized place to cover more areas. The Gateway Fleet feature enables multiple agent gateways to transmit received data to one controller gateway, which facilitates the deployment and management of LoRaWAN network. UG56 supports Listen Before Talk which makes it possible for multiple devices to share the same channel, reduce channel conflict and improve the overall transmission environment. With support for BACnet/IP, real-time data can be seamlessly integrated into existing Building Management System (BMS). These gateways are also compatible with Scopious IoT... Features Industrial-Grade Design Listen Before Talk Gateway Fleet Free Embedded Network Server Multiple Backhaul Connectivities Global LoRaWAN Frequency Plans Quad-core CPU Semtech SX1302 LoRa chip support for BACnet/IP Details Manufacturer's Code UG56-915M CPU Quad-core 1.3 GHz, 64-bit ARM Cortex-A35 Memory 512 MB DDR3 RAM Flash 8 GB eMMC Extendable Storage 1 × Micro SD Slot (Internal) LoRaWAN Antenna Connector 1 × 50 Ohm SMA Connector (Center PIN: SMA Female) Channels 8 (Half-duplex) Frequency Bands AU915/AS923-1&2&3&4 Sensitivity - Output Power 27 dBm Max (500mW) Protocol V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class CLBT support Ethernet Interface Port 1 × RJ45 (PoE PD supported) Physical Layer 10/100 Base-T (IEEE 802.3) Data Rate 10/100 Mbps (Auto-Sensing) Interface Auto MDI/MDIX Wi-Fi Antenna Internal Standards IEEE 802.11b/g/n, 2.4 GHz Mode AP or Client mode Security WPA/WPA2 authentication, WEP/TKIP/AES encryption Reset Button 1 × RST (Internal) Console Port 1 × Type-C Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter Apps Python SDK, Node-RED Power Input 1 × 802.3 af PoE Input or 5V, 2A by Type-C Port Power Consumption Typical 1.8 W, Max 6.9 W Ingress Protection IP30 Housing & Color Metal, Black Dimensions 110 x 75 x 24 mm Installation Desktop, Wall Mounting Operating Temperature - Storage Temperature - Relative Humidity 0% to 95% (non-condensing) at 25°C Manufacturer Website Firmware & Downloads Datasheets and User Guides Blog Wiki Knowledge Base Case Studies IoT Academy Details Includes UG56, Wall/ceiling mounting kit, QSG, warranty card and LoRaWAN Mag base Antenna

Key features

• 140 dBm Sensitivity @292bps
• 20°C to +60°C
• 40°C to +85°C
• Penetrate three floors up and down in the building, and cover a radius of up to 2 km in urban areas and 15 km in rural areas
• Adopting Semtech SX1302 LoRa chip, UG56 supports connection with more than 2000 LoRaWAN nodes
