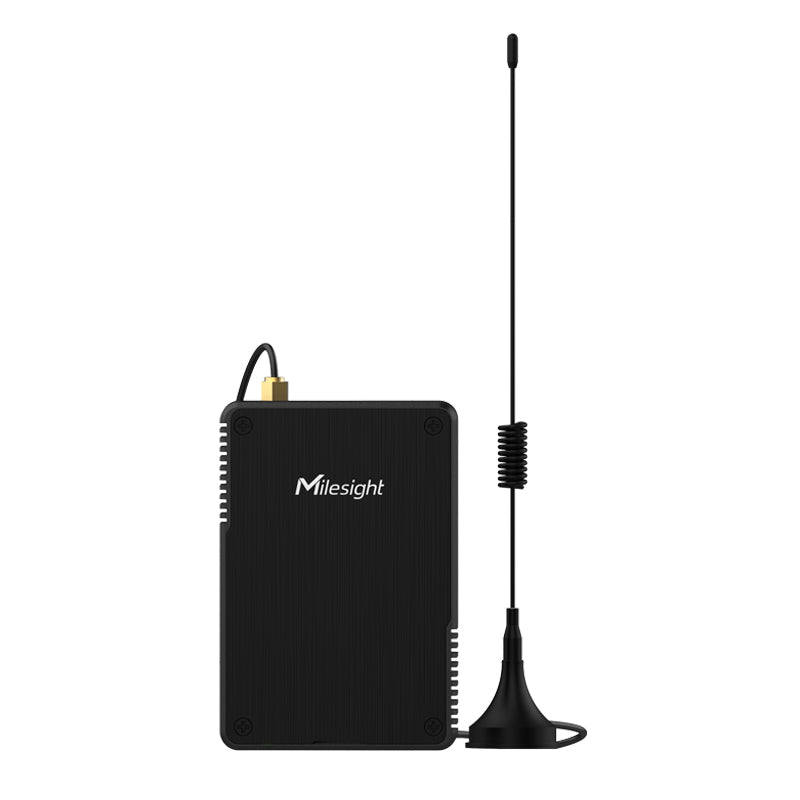

Milesight UG56 Industrial AS923/AU915 LoRaWAN IoT gateway with Cellular Backhaul and PoE support

Milesight UG56 Industrial AS923/AU915 LoRaWAN IoT gateway with Cellular Backhaul and PoE support

UG56-L04AU-915M

$713.00 NZD
$713.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Milesight UG56 Industrial AS923 LoRaWAN IoT gateway with Cellular Backhaul and PoE support
The Milesight UG56 is a robust 8-channel indoor LoRaWAN AU915/AS923 IoT gateway. Adopting the SX1302 chip and a high-performance quad-core CPU, the UG56 supports connection with more than 2000 nodes. It also has line of sight up to 15 km and can cover about 2 km in urban environments, which is ideally suited to smart buildings, smart industries and many other indoor applications. The UG56 supports not only multiple back-haul backups with Cellular, Ethernet and Wi-Fi, but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.), and a built-in network server and Milesight IoT Cloud for easy deployment. These gateways are also compatible with Scopious IoT.



. .

Features
  • Quad-core industrial processor with big memory
  • NXP Quad-Core Processor
  • Semtech SX1302 LoRa Chip
  • 4g Cellular Backhaul
  • Multiple Backhaul Connectivity options
  • Embedded Network Server
  • IP30 Rated
  • Compatible with Multiple Network Servers
  • supports Listen Before Talk (LBT)
  • Milesight Cloud compliant
  • supports 2000+ end devices
Details
Manufacturer's Code UG56-L04AU-915M
CPU Quad-core 1.3 GHz, 64-bit ARM Cortex-A35
Memory 512 MB DDR3 RAM
Flash 8 GB eMMC
Extendable Storage 1 × Micro SD Slot (Internal)
LoRaWAN Antenna Connector 1 × 50 ? SMA Connector (Center PIN: SMA Female)
Channels 8 (Half-duplex)
Frequency Bands AU915/AS923-1&2&3&4
Sensitivity -140 dBm Sensitivity @292bps
Output Power 27 dBm Max
Protocol V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class CLBT support
Ethernet Interface Port 1 × RJ45 (PoE PD supported)
Physical Layer 10/100 Base-T (IEEE 802.3)
Data Rate 10/100 Mbps (Auto-Sensing)
Interface Auto MDI/MDIX
Wi-Fi Antenna Internal
Standards IEEE 802.11b/g/n, 2.4 GHz
Mode AP or Client mode
Security WPA/WPA2 authentication, WEP/TKIP/AES encryption
Reset Button 1 × RST (Internal)
Console Port 1 × Type-C
Network Protocols PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter
Apps Python SDK, Node-RED
Power Input 1 × 802.3 af PoE Input or 5V, 2A by Type-C Port
Power Consumption Typical 1.8 W, Max 6.9 W
Ingress Protection IP30
Housing & Color Metal, Black
Dimensions 110 x 75 x 24 mm
Installation Desktop, Wall Mounting
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +85°C
Relative Humidity 0% to 95% (non-condensing) at 25°C
Cellular 4G Connectivity
Details
Includes UG56 Cellular, Wall/ceiling mounting kit, QSG, warranty card, LoRawan and Cellular Mag Base antenna
