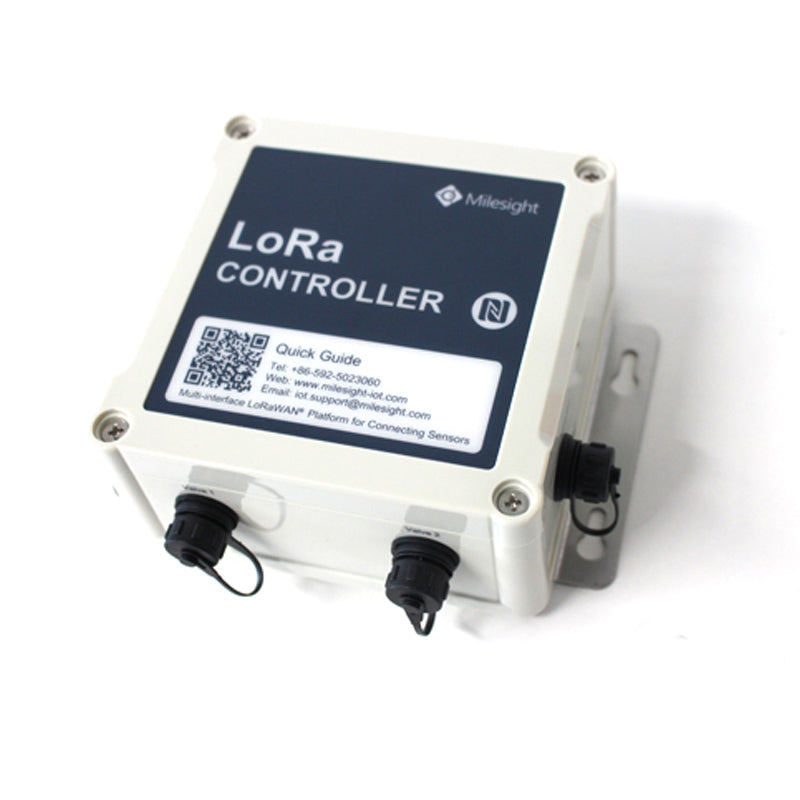

Milesight UC512 AU915/AS923 LoRaWan IoT Controller with Latching Solenoids and Pulse Meter support

Milesight UC512 AU915/AS923 LoRaWan IoT Controller with Latching Solenoids and Pulse Meter support

UC512-DI-915M

$432.00 NZD
$432.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Milesight UC512 AU915/AS923 LoRaWan IoT Controller with Latching Solenoids and Pulse Meter support
The UC512 Battery Powered LoRaWAN® wireless IoT controller is a device used to control the status of DC latching solenoids. It contains 2 solenoid interfaces and 1 pulse interface, which supports 2 pulse meters. The UC511 can be easily and quickly configured by NFC or USB-C. For outdoor applications, it is equipped with an IP67-rated enclosure and M12 connectors to protect from water and dust under harsh environments.

The UC512 is perfect for multiple use cases including Golf Course/Farm/Lifestyle irrigation, Dust suppression, frost suppression, etc.



. .

Features
  • Compatible with standard DC latching solenoids
  • Transmission distance up to 11km with line of sight
  • Waterproof design including IP67 case and M12 connectors
  • Solar powered
  • Quick wireless configuration via NFC
  • Data visualization and remote management via Milesight IoT Cloud
Details
Manufacturer's Code UC512-DI-915M
Frequency AU915/AS923
Tx Power 20dbm
Sensitivity -147dBm @300bps
Mode OTAA/ABP
Interface type M12 A-coded Male
Ports 2 × Solenoid Interfaces
Solenoid support 2 wires 12V DC latching solenoids
Cable Length 1.5m
Pulse Interface 1 × Pulse Interface, support 2 pulse meters
Logical Level Low: 0~0.9V, High: 2.5~3.3V
Cable Length 1.5m
Power On/Off NFC, power button (Internal)
Configuration Mobile APP(via NFC) or PC software(via USB Type-C)
Operating Temperature -20°C to +60°C
Ingress Protection IP67
Dimension 120.1 × 120.1× 55.4 mm
Power Supply 19000mAh replaceable Li-SOCL2 battery + 5-24 VDC supply
Details
Included 2 × DC Solenoid Cables, 1 × Data Cable, Mounting screws, Screwcaps, Warranty Card
