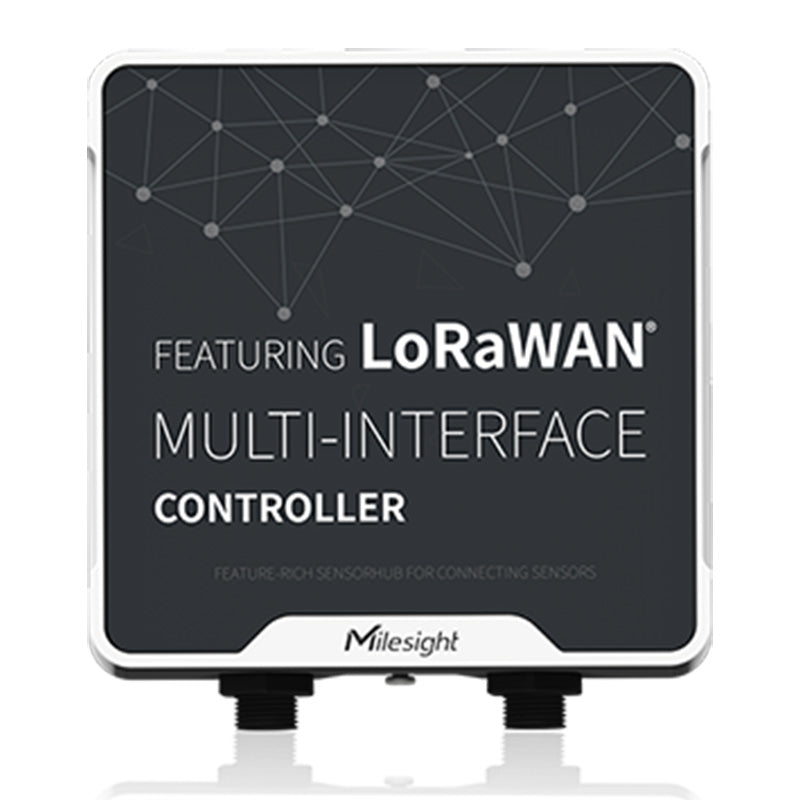

Milesight UC502 AU915/AS923 LoraWan IoT Controller with GPIO/AI/RS232/RS485

Milesight UC502 AU915/AS923 LoraWan IoT Controller with GPIO/AI/RS232/RS485

UC502-915M

$402.00 NZD
$402.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Milesight UC502 AU915/AS923 Battery Powered LoraWan Controller with GPIO/AI/RS232/RS485
Milesight UC502 AU915/AS923 LoraWan IoT Controller with GPIO/AI/RS232/RS485. The Milesight UC502 is a AU915/AS923 LoRaWAN controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports and so on, which simplify the deployment and replacement of LoRaWAN® networks.

UC501 can be easily and quickly configured by NFC or wired USB port. For outdoor applications, it is equipped with an IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments. It is also powered by a 19000mAh replaceable Li-SoCl2 battery.

This sensor is perfect for multiple use cases including smart agriculture, smart industrial monitoring and smart cities. You can use this unit for retro-fitting existing sensors to send over LoRaWan, including gas, water or flow meter monitoring.



. .

Features
  • Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485 interfaces
  • Long transmission distance up to 11km with line of sight
  • Waterproof design including IP67 case and M12 connectors
  • Solar powered with rechargable
  • Quick wireless configuration via NFC
  • Compliant with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution
Details
Manufacturer's Code UC502-915M
Frequency AU915/AS923
Tx Power 20dbm
Sensitivity -147dBm @300bps
Mode OTAA/ABP
Interface type M12 A-Coded Male
IO Ports 2 x GPIO
Logic Level Low: 0~0.9V, High: 2.5~3.3V
Work Mode Digital input, digital output, pulse counter (only support on GPIO2)
Serial Port 1 × RS232 or RS485 (Switchable)
Baud Rate 300~230400 bps
Protocol Transparent (RS232), Modbus RTU (RS485)
Analog Inputs 2 × Analog input
Resolution 12 bit
Input Range 4~20mA or 0~10V (Switchable)
Power Output 2 × 3.3 V, 2 × 5/9/12 V (Switchable)
Operating Temperature -20°C to +60°C
Ingress Protection IP67
Dimension 120.1 × 120.1× 55.4 mm (4.73 × 4.73 × 2.18 in)
Power Supply 19000mAh replaceable Li-SoCl2 battery
Mounting Wall or Pole Mounting
Details
Included 2 × Data Cable, Mounting screws, Screwcaps, Warranty Card
