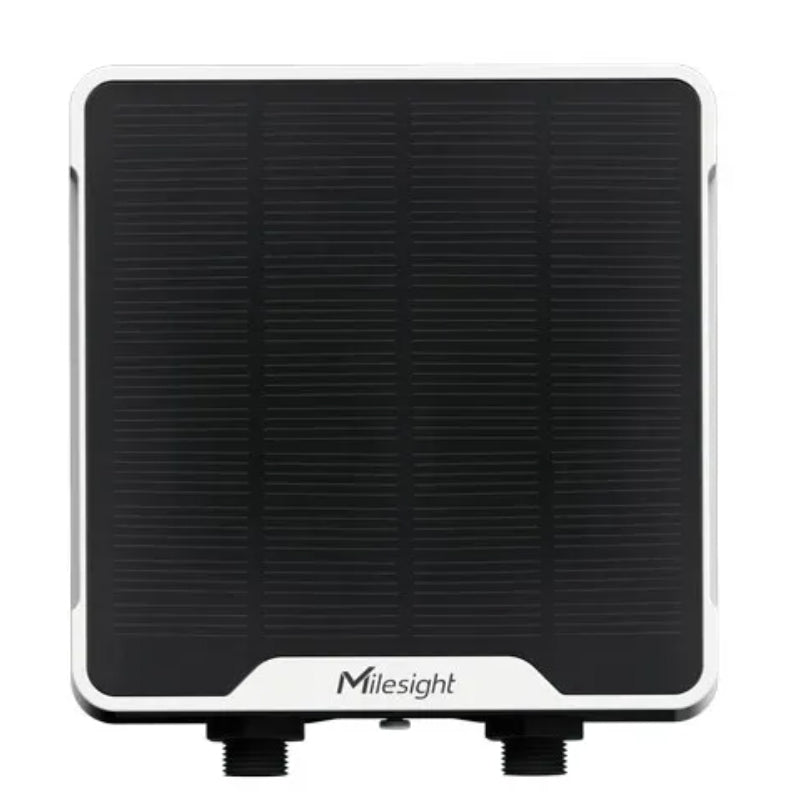

Milesight UC501 AU915/AS923 Solar Powered LoRaWan IoT Controller with GPIO/AI/RS232/RS485

Milesight UC501 AU915/AS923 Solar Powered LoRaWan IoT Controller with GPIO/AI/RS232/RS485 The Milesight UC501 is a LoRaWAN® IoT controller used for data acquisition from multiple sensors. It contains different I/O interfaces such as analog inputs, digital inputs, digital outputs, serial ports and so on, which simplify the deployment and replacement of LoRaWAN® networks.. For outdoor applications, it provides solar power supply and is equipped with an IP67-rated enclosure and M12 connectors to protect itself from water and dust in harsh environments..... Features Easy to connect with multiple wired sensors through GPIO/AI/RS232/RS485 interfaces Long transmission distance up to 11km with line of sight Waterproof design including IP67 case and M12 connectors Solar powered with rechargable Quick wireless configuration via NFC Compliant with standard LoRaWAN® gateways and network servers Quick and easy management with Milesight IoT Cloud solution Details Manufacturer's Code UC501-915M Frequency AU915/AS923 Tx Power 20dbm Sensitivity - Mode OTAA/ABP Interface type M12 A-Coded Male IO Ports 2 x GPIO Logic Level Low: 0~0.9V, High: 2.5~3.3V Work Mode Digital input, digital output, pulse counter (only support on GPIO2) Serial Port 1 × RS232 or RS485 (Switchable) Baud Rate 300~230400 bps Protocol Transparent (RS232), Modbus RTU (RS485) Analog Inputs 2 × Analog input Resolution 12 bit Input Range 4~20mA or 0~10V (Switchable) Power Output 2 × 3.3 V, 2 × 5/9/12 V (Switchable) Operating Temperature - Ingress Protection IP67 Dimension 120.1 × 120.1× 55.4 mm (4.73 × 4.73 × 2.18 in) Power Connector M12 A-Coded Male Power Input Rechargeable 4900 mAh battery with solar panel Power Supply Solar powered + 2*2550mAh battery backup + 5-24 VDC Mounting Wall or Pole Mounting IoT Academy Details Included 2 × Data Cable, 1 × USB Cable, Mounting screws, Screwcaps, Warranty Card

Key features

• 147dBm @300bps
• 20°C to +60°C
• UC501 can be easily and quickly configured by NFC or wired USB port
• This sensor is perfect for multiple use cases including smart agriculture, smart industrial monitoring and smart cities
• You can use this unit for retro-fitting existing sensors to send over LoRaWan, including gas, water or flow meter monitoring
