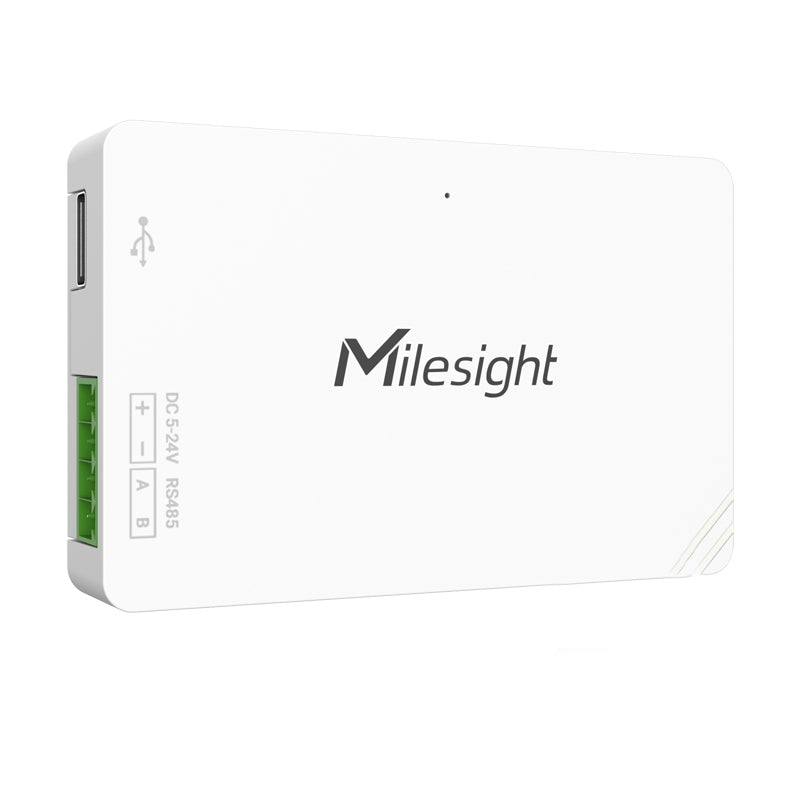

Milesight UC100 LoRaWAN AU915/AS923 to RS485 IoT controller

Milesight UC100 LoRaWAN AU915/AS923 to RS485 IoT controller

UC100-915M

$133.00 NZD
$133.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Milesight UC100 LoRaWAN AU915/AS923 to RS485 IoT controller
The Milesight UC100 is an IoT controller used for remote control and data acquisition from Modbus RS485 devices via LoRaWAN AU915/AS923 networks. It can read up to 16 Modbus RTU devices and supports Modbus transparent transmission between server and RS485 devices as a Modbus to LoRaWAN® converter. The UC100 also supports multiple trigger conditions and actions which can work autonomously even when the network drops. Combined with Milesight IoT Cloud solution, it can monitor and control remote assets via web server or mobile App easily. UC100 is widely used in indoor applications like smart metering, smart cities, building automation, etc.



. .

Features
  • support reading 16 Modbus registers, can connect up to 16 Modbus devices
  • Ultra-wide-distance transmission up to line of sight of 15 km? Multiple triggering conditions and actions
  • Embedded watchdog for device working stability
  • support Milesight LoRa D2D protocol to enable ultra-low latency and directly control without LoRaWAN® gateway
  • Compliant with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud solution


  • Easily onboard and monitor 100’s of LoRaWAN Gateways with the Scopious onboarding
Details
Manufacturer's Code UC100-915M
Technology LoRaWAN, LoRa D2D
LoRaWAN Antenna Connector Internal
Frequency AU915/AS923
Tx Power 22dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class C
Port 1 x RS485
Baud Rate 1200~115200 bps
Protocol Modbus RTU, supports up to 16 register values
Power Connector 3.5 mm Terminal Block
Power Supply 5-24 VDC by terminal block / 5 VDC Type C
Configuration Port USB-C
Color & Material White PC + ABS
Ingress Protection IP30
Operating Temperature -20°C ~ 60°C (-4? to +140?)
Relative Humidity 0% ~ 95% (non-condensing) at 25°C/77?
Dimensions 70 x 45 x 13mm
Installation Desktop, Wall Mounting
Details
Includes Sensor, QSG
