Milesight IoT

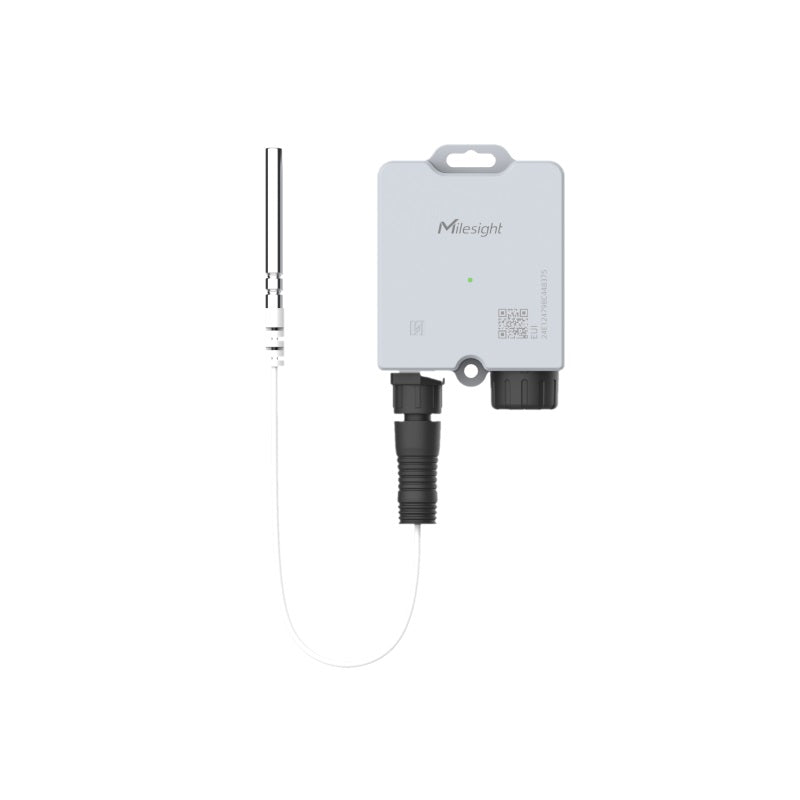

Milesight TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature IoT Sensor
Milesight TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature IoT Sensor
SKU:TS201-915M
Regular price
$156.00 NZD
Regular price
Sale price
$156.00 NZD
Shipping calculated at checkout.
* All prices exclude GST & Freight, Calculated at checkout - supply only*
In stock
Quantity
Couldn't load pickup availability
Milesight TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature Sensor -40C - 125C
Milesight TS201 LoRaWAN AS923 High Accuracy DS18B20 Temperature IoT Sensor. TS201 is a compact temperature sensor. It is equipped with high-precision sensors and an IP67 waterproof design, making it applicable for accurate temperature data detection in various harsh environments. With the low power consumption technology the TS201 can maintain a long operational life with its internal battery. Combining with Milesight LoRaWAN gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. TS201 is widely used for temperature monitoring applications like cold chain storage of food or medicine, etc.
Milesight TS201 Temperature Sensor is rugged with IP67 rating offering real-time alerts, while complying with EN12830 Standard and HACCP Requirements. It is specially designed for various application scenarios like cold chain, pharmaceutical, food processing and more.
Milesight TS201 comes with a detachable sensing probe that can be calibrated independently. This ensures stable and accurate temperature sensing and monitoring, making it ideal for cold chain.
. .
Milesight TS201 Temperature Sensor is rugged with IP67 rating offering real-time alerts, while complying with EN12830 Standard and HACCP Requirements. It is specially designed for various application scenarios like cold chain, pharmaceutical, food processing and more.
Milesight TS201 comes with a detachable sensing probe that can be calibrated independently. This ensures stable and accurate temperature sensing and monitoring, making it ideal for cold chain.
. .
Features
- LED Light Status Indicator
- Rugged IP67 Rating
- Up to 2,800 Sets of Data Logging
- Comply with EN12830 Standard
- Small and Compact for Flexible Installation
- LoRaWAN Wireless Deployment
- Average Battery Life: 3 Years
- Ideal for Cold Chain and Pharmaceutical
- support Independent Calibration of Probe
| Details | |
|---|---|
| Manufacturer's Code | TS201-915M |
| Protocol | LoRaWAN |
| Frequency | US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 22dBm (915MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Connector Type | Type 1 × 5-Pin M12 A-Coded Male Connector |
| Measuring Range | -40°C ~ 125°C |
| Accuracy | ± 0.5°C(-10°C ~ 85°C), ± 2°C(-40°C ~ -10°C, 85°C ~ 125°C) |
| Resolution | 0.1°C |
| Cable Length | 1.5 m |
| Cable Material | TPE |
| LED Indicator | 1 × Status Indicator |
| Configuration | Mobile App (via NFC) |
| Advanced Feature | Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm |
| Power Supply | 1 × 2700 mAh ER14505 Li-SOCL2 Battery |
| Battery Life | Around 3 Years (25°C, 10 min Interval, SF10), Around 9 Years (25°C, 10 min Interval, SF7) |
| Operating Temperature | TS201 Device: -30°C ~ 55°C (-22°F ~ 131°F), Sensor Cable: -40°C ~ 125°C (-40°F ~ 257°F) |
| Relative Humidity | 0% to 95% (Non-condensing) |
| Ingress Protection | IP67 |
| Dimension | 84.7 × 58 × 25 mm (3.33 × 2.28 × 0.98 in) |
| Installation | Wall Screw Mounting, Cable-tie Mounting, Magnetic Mounting (Opt.? |
| Details | |
|---|---|
| Contains | 1 x TS201 and detachable sensing probe, 1 battery, Mounting kit |
