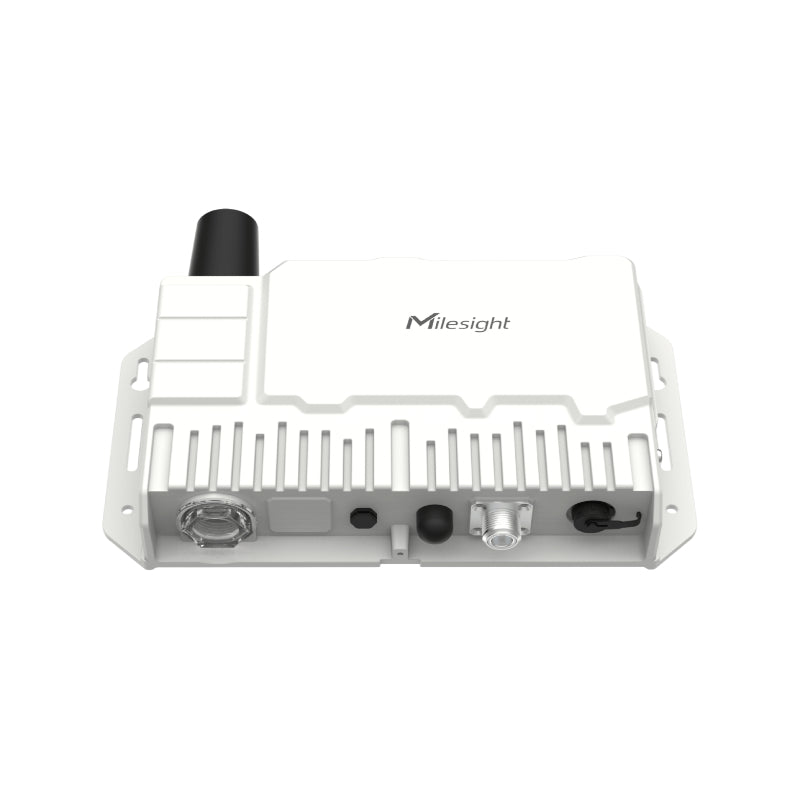

Milesight SG50-L08GL-915M Solar Powered Gateway 45Watt Solar Panel Version

Milesight SG50-L08GL-915M Solar Powered Gateway 45Watt Solar Panel Version

SG50-L08GL-915M-45W

$2,143.00 NZD
$2,143.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Milesight SG50 Industrial AS923 LoRaWAN gateway with 45w Solar power and Cellular Backhaul
The Milesight SG50-PN:45W is a robust 8-channel Outdoor LoRaWAN AU915/AS923 IoT gateway. Adopting the SX1302 chip and a high-performance quad-core CPU, the SG50 supports connection with more than 2000 nodes. It also has line of sight up to 15 km and can cover about 2 km in urban environments, which is ideally suited to smart buildings, smart industries and many other remote outdoor applications. The SG50 supports not only multiple back-haul backups with Cellular and Wi-Fi, but also has integrated mainstream network servers (such as TTI, ChirpStack, etc.), and a built-in network server and Milesight IoT Cloud for easy deployment. These gateways are also compatible with Scopious IoT.

SG50 uses a 45W standard solar panel to capture solar energy, simultaneously powering the device and recharging the internal battery in ample sunlight. It dynamically adjusts the charging current according to battery temperature to optimize solar energy usage and extend battery life.

Battery Life estimation: Up to 4 Days Without Sunlight (100 Nodes Connection with 10 min Report Interval)



. .

Features
  • Quad-core industrial processor with big memory
  • NXP Quad-Core Processor
  • Semtech SX1302 LoRa Chip
  • 4g Cellular Backhaul
  • Multiple Backhaul Connectivity options
  • Embedded Network Server
  • IP67 Rated
  • Compatible with Multiple Network Servers
  • supports Listen Before Talk (LBT)
  • Milesight Cloud compliant
  • supports 2000+ end devices
  • 45 Watt Panel
Details
Antenna Connector N-Female External Connector (Antenna Included)
Lora Frequency AU915 or AS923 (Default)
Network 4G LTE (CAT 1)/GSM
Bands LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66
LED Indicators 1 × SYSTEM, 1 × LTE, 1 × Wi-Fi
Battery Life 4 Days without Sunlight
Power Consumption Typical 0.8W
Ingress Protection IP67
Weight 1.275 kg (Without Batteries), 1.755 kg (With Batteries)
Dimension 250 × 157.5 × 46mm
Installation Wall or Pole Mounting
Operating Temperature -30°C to +70°C
Battery Size 3.6V, 25000mAh Backup Batteries
Solar panel Wattage 45Watts
Details
Includes 1 x SG50 Cellular, 1 x Battery Pack, 1 x LoRaWAN® Antenna, 1 x Antenna Coaxial Cable, 1 x Antenna U-strap/bolt Kit, 1 × Mounting Bracket Kit and hardware, 1 × 45 Watt Solar Panel(With M12 Power Cable), 1 × Solar Panel Bracket Kit
