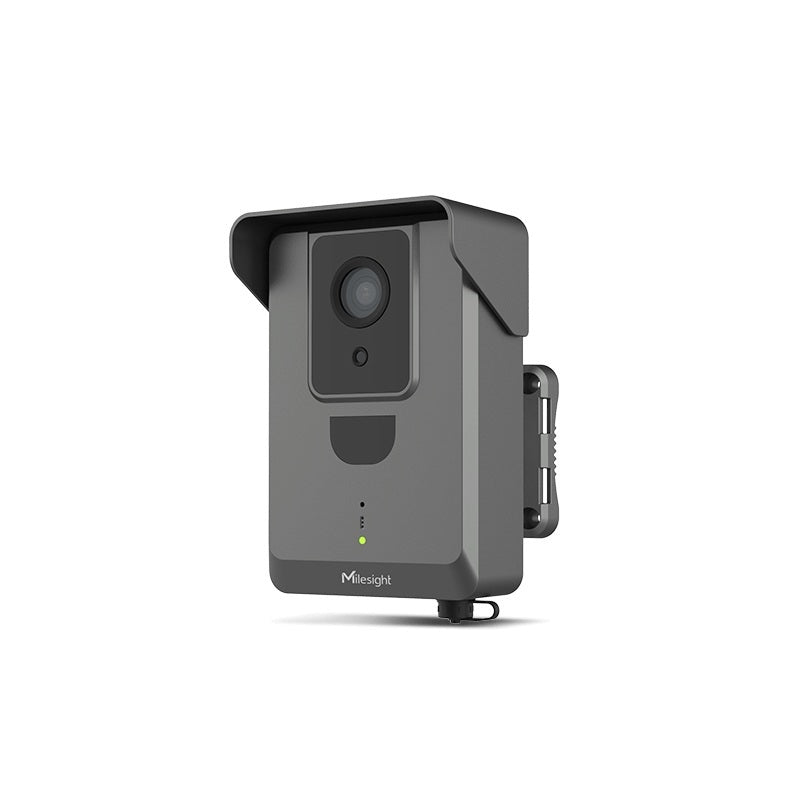

Milesight SC311 X5 4G LTE Sensing IoT Camera
Milesight SC311 X5 4G LTE Sensing IoT Camera. X5 Sensing Camera is a cutting-edge AIoT device that leverages active sensing to enable intelligent and versatile applications. It comes equipped with a highly advanced image sensor and customizable capturing modes that can deliver high-quality images for a range of scenarios. The X5 also features embedded low-consumption radar and PIR sensors which provide greater sensitivity. Additionally, the camera has temperature and sound sensors that enables environmental sensing.
The X5 features wireless connectivity and simple configuration options for easy integration into specific environments. The low-consumption mode and optional solar panel extend its operational life and increase cost-effectiveness. With IP66-rated protection and anti-theft design, the X5 opens up a wealth of potential applications.
X5 Sensing Camera supports simple configuration via Wi-Fi, and facilitates remote management and data transmission via standard MQTT(s) and HTTP protocols to Milesight AIoT Sensing Platform and other platforms.
Perfect for smart buildings, smart city deployments or industrial use-cases.
. .
The X5 features wireless connectivity and simple configuration options for easy integration into specific environments. The low-consumption mode and optional solar panel extend its operational life and increase cost-effectiveness. With IP66-rated protection and anti-theft design, the X5 opens up a wealth of potential applications.
X5 Sensing Camera supports simple configuration via Wi-Fi, and facilitates remote management and data transmission via standard MQTT(s) and HTTP protocols to Milesight AIoT Sensing Platform and other platforms.
Perfect for smart buildings, smart city deployments or industrial use-cases.
. .
Features
- Accurate and Fast Multi-Active Sensing Mechanism
- Camera and Temperature/Sound Sensors in One
- Wireless Deployment By 4G Transmission & Solar Energy
- Full HD 1920*1080/4K Resolution with Supplement Light
- Flexible Customized Capture Settings
- Impressive Usability with Low Power Consumption
- Robust IP66 Rated Waterproof Design
- Compatible with Milesight AIoT Sensing Platform
| Details | |
|---|---|
| Image Sensor | 1/2.8? Progressive Scan CMOS |
| Day/Night Mode | Day/Night/Auto |
| Lens | 2.8mm |
| Field of View | 100° |
| Max. Resolution | 1920 × 1080 Pixels |
| Image Settings | Brightness/Contrast/Saturation/Sharpness |
| Picture Format | JPEG |
| Capture Mode | Radar & PIR Trigger Capture, Sound Trigger Capture, Temperature Trigger Capture, Alarm-in Capture, Interval Capture, Timed Capture, Debug Capture |
| Capture Rate | ? 95% |
| Capture Distance | 6m (Optimal) |
| Capture Distance | ?10m |
| Nighttime Illumination Distance | Up to 10m |
| Radar & PIR | Radar Frequency Range: 5.725GHz-5.875GHz, Radar Tx Power: -4dBm, PIR Detection Area: 105°Horizontal, 105 ° Vertical |
| Sound Sensor | Range: 30dBA ~ 120dBA, Accuracy: ± 3dB (0°C to +45°C), Resolution: 1dB |
| Temperature Sensor | Range: -20°C ~ 60°C, Accuracy: ± 0.3°C (0°C to + 60°C), ± 0.6°C(-20°C to 0°C), Resolution: 0.1°C |
| Cellular | 4G LTE, AU: B1/B2/B3/B4/B5/B7/B8/B28/B66 |
| SIM Slot | 1 x Nano- 4FF SIM Slot |
| Protocol | HTTP/MQTT(s) |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4GHz (AP Mode for Configuration) |
| Bluetooth | Bluetooth® 5.3 ( Device Wake-up) |
| GPS | Built-in High-accuracy GPS Module |
| Alarm I/O | 44927 |
| Serial Port | 1 x RS485 |
| USB | 1 × Type-C (USB 2.0) for Power Supply and Debug |
| Button | 1 x Power Button, 1 x Reset Button, 1 x Wi-Fi Button |
| LED Indicator | 1 × Status Indicator |
| Storage | 1 × microSD/SDHC/SDXC Card Slot, support local storage up to 256G |
| Solar Power Input | 1 x MC4 Connector |
| Power Supply | 1. Solar Power via MC4 Connector Solar Power Requirement: Power ? 35W, OCV < 22V, 2. 7.2V, 6500mAh Cold-weather Performance Rechargeable Lithium-ion Batteries, 3. 5V / 1A by Type-C Port |
| Battery Life | Full Function Capture Mode; Triggering Upload: Up to 2.4 Days, Timing Upload: Up to 6.5 Days; Low Power Timed Capture Mode; Triggering Upload: Up to 372.2 Days, Timing Upload: Up to 738.3 Days |
| Battery Health | The Battery's Capacity will reduce to 70% after 500 Times of Accumulative Charging and Discharging |
| Power Consumption | Full Function Capture Mode; Standby Status: 62mW, Capture Status: 1.1W (Daytime), 2.7W (Nighttime with IR On); Low Power Timed Capture Mode; Standby Status: 1.7mW, Capture Status: 1.6W (Daytime), 3.9W (Nighttime with IR On) |
| Operating Temperature | -20°C ~ +60°C |
| Color & Material | Charcoal Grey, ABS + PC (Flame Retardant) |
| Ingress Protection | IP66 |
| Rain Cover Movement Distance | 10mm |
| Dimension | 175 x 111 x 63.2mm (Without Rain Cover) |
| Details | |
|---|---|
| Included | Camera, 3-Axis Ball Mounting Bracket x 1 Screw of Bracket x 1, Multi-Interface Cable (0.5m) × 1, USB Type-C Charging Cable x 1, SIM Card Ejector Tool x 1, QSG, Warranty Card |
