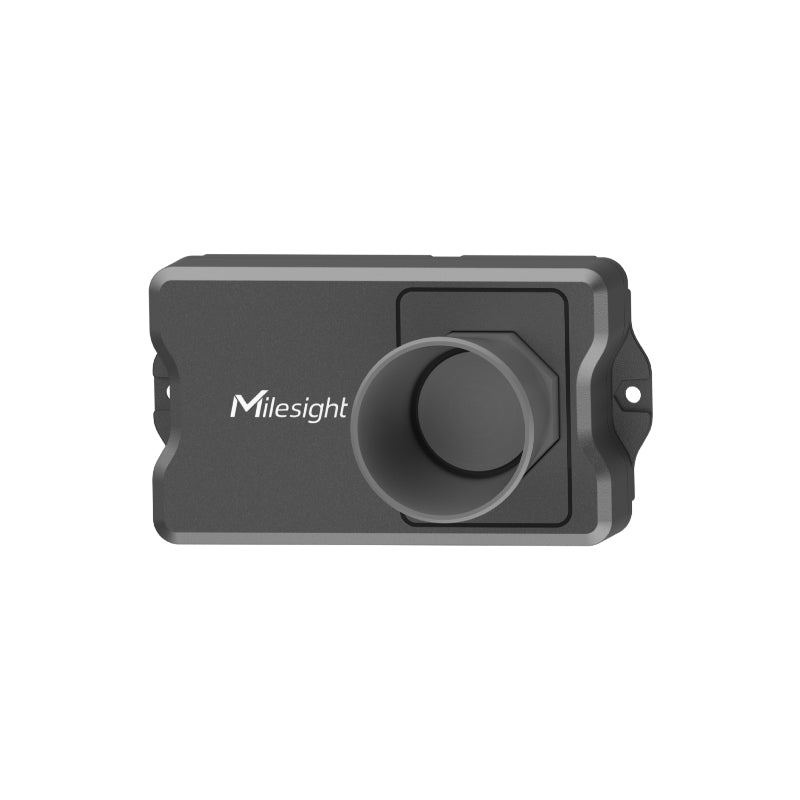

Milesight NB-IoT/CatM1 Cellular EM400-UDL Ultrasonic 10 Metre Distance Sensor with IP67 Case

Milesight NB-IoT/CatM1 Cellular EM400-UDL Ultrasonic 10 Metre Distance Sensor with IP67 Case

EM400-UDL-N03GL-W100

$1,170.00 NZD
$1,170.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
Milesight NB-IoT/CatM1 Cellular EM400-UDL Ultrasonic 1000 cm Distance Sensor with IP67 Case
Milesight CatM1 Cellular EM400-UDL Ultrasonic 10 Metre Distance Sensor with IP67 Case. EM400-UDL is a versatile product among EM400 series because of its detection range, resolution, and accuracy, is designed to cater to the demands of professional applications. Equipped with prolonged battery life and robust IP67 rated enclosure, EM400-UDL is the perfect fit for professional and demanding applications.

Leveraging ultrasonic distance detection, EM400-UDL ensures a stable and reliable performance while detecting different solid or liquid mediums. Featuring non-contact distance measurement, the probe of EM400-UDL will remain unaffected or contaminated by the medium detected, and deliver highly accurate measurement.

Perfect for smart buildings, smart city deployments or industrial use-cases.



. .

Features
  • Non-Contact Distance Measurement
  • Value-added Temperature and Tilt Monitoring
  • Two Pre-set Modes for Seamless User Experience
  • Long-Lasting up to 10 Years Battery Life
  • Rugged and Reliable IP67 Rated Enclosure
  • IP67 Rated
  • 3-axis accelerometer to detect the device position
Details
Manufacturer's Code EM400-UDL-N03GL-W050
Application Mode TCP/UDP/MQTT/AWS/Milesight IoT Cloud
Detection Range 50 - 1000cm
Detection Accuracy ±1% FS (- 30°C ~ 65°C)
Resolution 1mm
Temperature Range -40° - 125°C
Resolution 0.1°C
GNSS Positioning Resolution 0.000001
Cellular Bands Cat M1:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85, Cat NB2:B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/B66/B71/B85
Sim Slot 1 Micro SIM 3FF
Configuration Mobile APP(NFC)
Power Supply 2 x 9000 mAh ER26500 Li-SOCL2 Batteries
Battery Life TCP/UDP—Around 10 Years, MQTT/AWS—Around 5 Years
Operating Temperature -30°C to +70°C
Ingress Protection IP67
Dimension 118 × 65 × 80 mm
Material and Colour ABS + PC (Flame Retardant), Black gray
Mounting On the Flat Surfaces with Screws
Details
Contains Sensor, QSG, Mounting Screws, Fixing screw, Warranty Card
