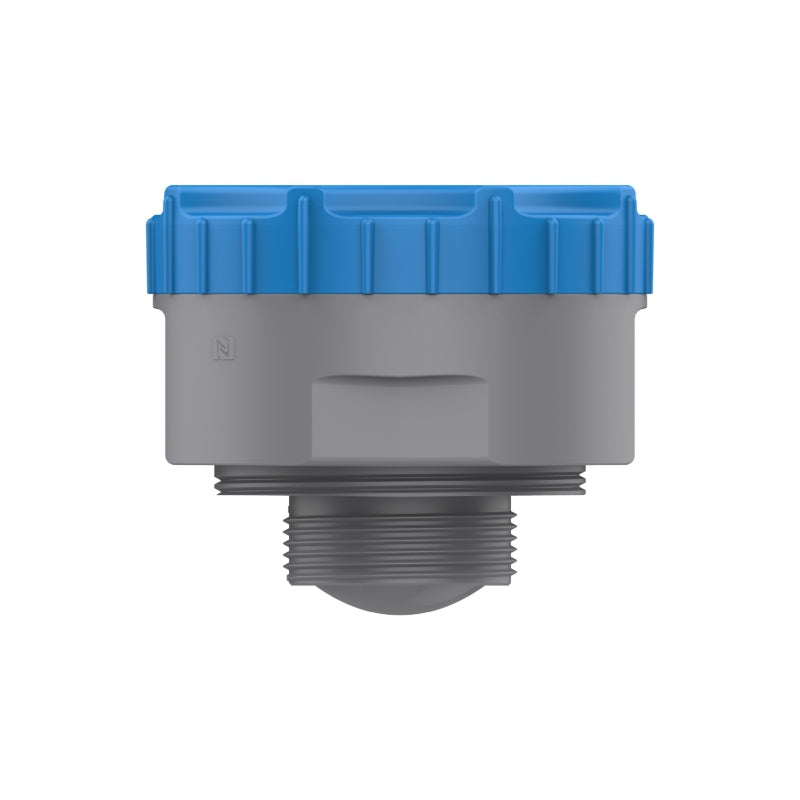

Milesight LoRaWAN Smart Radar Distance and Level Detection IoT Sensor

Milesight LoRaWAN Smart Radar Distance and Level Detection IoT Sensor

EM410-RDL-915M

$727.00 NZD
$727.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Milesight LoRaWAN AU915/AS923 Smart Radar Distance and Level Detection Sensor
Milesight LoRaWAN AU915/AS923 Smart Radar Distance and Level Detection IoT Sensor. The Milesight EM410-RDL is a non-contact Radar Distance/Level Sensor that adopts Millimeter Wave Radar technology. By measuring millimeter-wave signals at higher frequencies, it provides more stable performance over longer distances, and is less affected by environmental conditions. It can detect the distance between the sensor and liquid of various types, unaffected by temperature, dust, condensate etc. With IP68 waterproof and sealed enclosure, it can withstand the worst environment, while maintaining the measurement accuracy, and does not require routine maintenance. The EM410-RDL can be used in sewers, rivers, impounding reservoir, storage tanks and other locations that require distance measurements and level.

Perfect for smart buildings, smart city deployments or industrial use-cases and Smart Agri.



. .

Features
  • 8° Radar beam angle can be focused on the target fluid, enabling accurate measurement of
  • liquid level
  • Wide measuring range of 0.3m to 12m with small blind zone
  • Not affected by dust, condensation, temperature, acoustic noise, etc
  • Non- invasive liquid level monitoring, can detect hazardous or non-hazardous liquids
  • Built-in 3-axis accelerometer sensor to monitor device tilt status
  • support to check radar-echo curve and one-click diagnostic to calibrate the distance
  • support blind zone alarm when the ranging results are within the blind zone
  • Adopt PVDF material, offering excellent corrosion resistance, wear resistance and
  • compressive strength for harsh environments
  • IP68 waterproof design, resistant in fresh water to a maximum depth of 1m for up to 48 hours
  • Thread design for common tank installation without extra accessories needed
  • Store up to 2,000 historical records locally and support retransmission to prevent data loss
  • Easy configuration via NFC and Bluetooth
Details
Manufacturer's Code EM410-RDL-915M
Technology Millimeter Wave Radar
Target Liquids or Smooth Surface Solid
Radar Frequency Band 60GHz
Detection Angle 8°
Detection Distance 0.3m - 12m
Accuracy Up to ± 2mm
Resolution 1mm
Device Position Status Normal/Tilt
Frequency US915/AU915/KR920/AS923-1&2&3&4
Tx Power 20 dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Antenna Internal Antenna
LED Indicator 1 × LED indicator (Internal)
Configuration Mobile App via NFC or Bluetooth
Power Supply 1 × 19000 mAh ER34615 Li-SOCL2 Battery
Battery Life Around 7 Years (15-min collection Interval+1440-report interval, 25°C)
Operating Temperature -40°C ~ 70°C
Relative Humidity 0 ~ 100% (non-condensing)
Ingress Protection IP68 (1m underwater, 48 hours)
Dimensions 100 × 92.2 mm
Weight 400g
Color & Material Blue + Grey, PVDF
supported Tank Thread G1 ½”, G2 ½”
Installation Wall Bracket Mounting, Pole Bracket Mounting, Tank Threaded
Details
Contains Sensor, QSG, Mounting Bracket, Mounting Screws, Thread Cap, Spirit Level, Warranty Card
