Milesight IoT

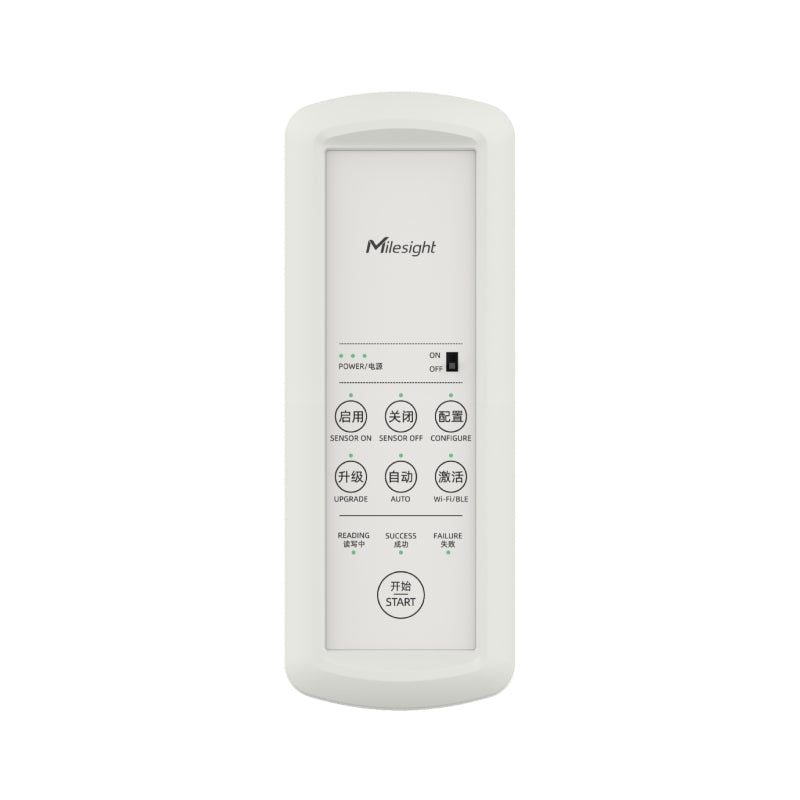

Milesight LoRaWAN Sensor Configuration Tool

Milesight LoRaWAN Sensor Configuration Tool

SCT01

$156.00 NZD
$156.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Milesight LoRaWAN Quick Deploy Sensor Configuration Tool
The Milesight Sensor Configuration Tool is a portable configuration tool/device for NFC configuration of Milesight sensors. As a professional NFC reading and writing tool, the SCT01 features a straightforward panel with a large NFC area and clearly stated buttons, making it easy for users without any technical background to configure sensors, smoothly on the spot. With a built-in battery and Type-C port, it can work for 6 hours and supports charging via a Type-C power bank.



. .

Features
  • Compatible with all Milesight devices with NFC feature
  • Easy to read and write to devices with a large NFC area
  • Equips with a buzzer and rich indicators to know the device status and configuration resultsvisibly
  • Simple operational panel with clear buttons design for easily configurations even for non-technical users
  • Built-in Bluetooth for easy tool configuration and template import, logs export, etc.
  • supports storage of 1 firmware file to upgrade devices in bulk
  • Built-in rechargeable lithium battery that works for 6 hours
  • supports real-time data backup
Details
Product Code SCT01
Bluetooth BLE 4.0, distance: 1.5m
NFC supports ISO/IEC 14443A Protocol, Reading Distance: 1-3cm
Slide Switch On/Off
Buttons 7 x Buttons for Sensor Power On/Off, Configuration, Upgrade, etc.
LED Indicator 3 x Power, 3 x Configuration Status, 6 x Button Status
Buzzer To indicate configuration status
USB 1 x USB 2.0 Type-C Port for Sensor Configuration Tool Power & Charge
Memory 16 MB, support to store 50 configuration files and 1 firmware file
Power supply Built-in 2000 mAh Chargeable Battery or 5V by USB Type-C
Battery Life Around 6 Hours (standby mode: Around 1 month)
Operating Temperature -20C - 60C
Relative Humidity 0-95% (Non-condensing)
Ingress Protection IP30
Colour and Material White, Plastic (HB Flame-retardant)
Dimensions 160 × 60 × 26.5 mm
Weight 141g
Details
Contains 1 x SCT01 Configuration Tool
View full details
