• Milesight LoRaWAN IoT Residential Gas Detector
1 1

Milesight IoT

Milesight LoRaWAN IoT Residential Gas Detector

Milesight LoRaWAN IoT Residential Gas Detector

GS101-915M

$208.00 NZD
$208.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

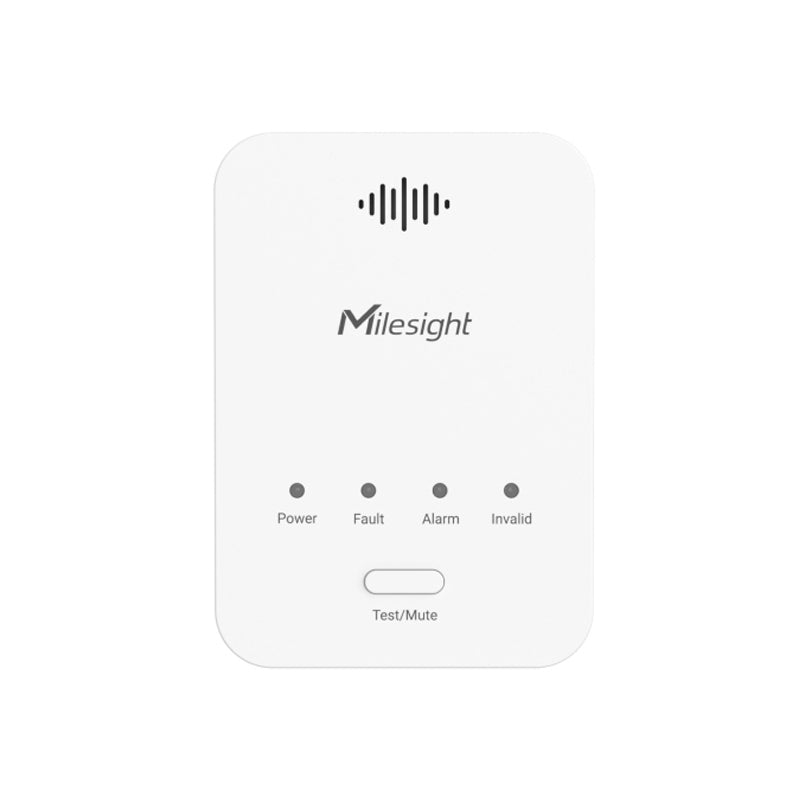

Milesight LoRaWAN IoT Residential Gas Detector
The Milesight GS101 is a LoRaWAN® IoT residential gas detector to detect the natural gas leak and send alarms. When the concentration caused by a gas leak reaches the preset threshold, the detector will trigger both LED light alarm and buzzer sound alarm, it also supports controlling outputs to close the gas valve and open the vent fans to prevent potential accidents. Apart from local alarms, GS101 can also report the normal status of the device and alarm messages remotely by the use of LoRaWAN® technology. Integrating with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can monitor all the sensor data and control the device remotely and visually. This sensor is also compatible with Scopious IoT.



. .

Features
  • Built-in semiconductor gas detecting sensor with 5-year life expectancy with no calibration needed
  • High sensitivity gas leak detection and support 8% LEL alarm threshold
  • Equipped with buzzer and light indicators to indicate the device powered, faulty, alarmed, and invalid status
  • Equipped with a test button to test the device’s normal or abnormal status
  • Equipped with outputs for controlling external appliances such as gas valves and vent fans
  • Built in NFC for easy configuration
Details
Model GS101-915M
Technology LoRaWAN®
Frequency AU915/KR920/AS923
Tx Power 22 dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class C
Detecting Gas Methane (CH4)
Detection Principle Semiconductor Sensor
Warm-up Time About 180s
Alarm Level 8% LEL
Alarm Type Sound, Light
Alarm Volume 85 dBA @1 Meter
Working Life 5 Years (In Clear Air)
Output Signal 1 × Relay Output: normally open, max 250 VAC/10A, 1 × Solenoid Valve Output: 12V, 100ms Pulse Output
Button 1 × Test/Mute/Reset/Reboot Button
LED Indicators 1 × Power (Green), 1 × Fault (Yellow), 1 × Alarm (Red), 1 × Invalid(Yellow)
Configuration Mobile App via NFC
Historical Records Storage Alarm Records, Alarm Dismissed Records, Device Fault Records, Device Fault Recovered Records, Device Power On Records, DevicePower Off Records, Device Invalid Records
Power Connector DC Jack Connector
Power Supply 12VDC, 1A
Operating Temperature -10°C to +55°C
Relative Humidity 0% to 95% (non-condensing)
Ingress Protection IP30
Dimension 120 × 85 × 32.5 mm
Material & Color PC+ABS (Flame Retardant), White
Installation Wall Mounting
Details
Contains Gas Detecting Sensor, PSU, Wall mounting Kit, QSG, Warranty Card
