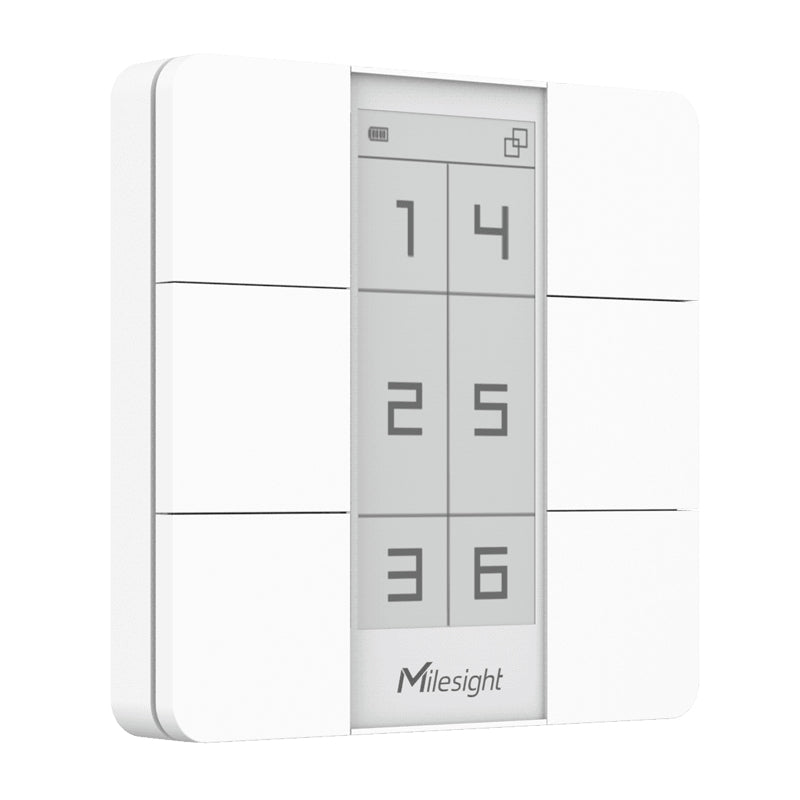

Milesight LoRaWAN IoT AS923 6 Button Smart Scene Panel With E-Ink Display

Milesight LoRaWAN IoT AS923 6 Button Smart Scene Panel With E-Ink Display

WS156-915M

$222.00 NZD
$222.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Milesight LoRaWAN AS923 6 Button Smart Scene Panel With E-Ink Display
Milesight LoRaWAN IoT AS923 6 Button Smart Scene Panel With E-Ink Display. The Milesight WS156 LoRaWAN IoT Smart Scene Panel gives a multi button control panel that can activate different pre-defined scenes with one-press. Without any additional cabling the WS156 can be installed anywhere and used to control devices via LoRaWAN® or the Milesight LoRa D2D communication protocol. Besides, it is equipped with a user-defined E-ink screen to suit different scenes. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution the WS156 can be linked to control other Milesight devices without any development. The WS156 can be widely used for wireless control in smart offices, smart homes, etc.



. .

Features
  • Equipped with a programmable E-ink screen for flexible display
  • Up to 6 scenes settable, each scene can consist of multiple devices
  • Equipped with NFC for one-touch configuration, supports card emulation mode
  • supports Milesight LoRa D2D protocol to enable ultra-low latency and direct control
  • Compliant with standard LoRaWAN® gateways and network servers
  • Compliant with Milesight IoT Cloud
  • Easy installation
Details
SKU WS156-915M
Technology LoRaWAN®, LoRa D2D
Frequency AU915/AS923
Tx Power 16 dBm
Sensitivity -137dBm
Mode OTAA/ABP Class A
Interface Display 2.9-Inch Black & White E-Ink Screen, 128 × 296 Pixels
Scene Button 6 Buttons
Configuration NFC
Advanced Features LoRa D2D Controller, Screen Display Customization
Power Supply 2 × 590 mAh CR2450 Lithium Coin Cell Batteries
Battery Life Over 3 years (1080 min interval + 20 presses per day)
Ingress Protection IP30
Color & Material White, PC + ABS (Flame-retardant)
Operating Temperature -10°C to +50°C (E-Ink Screen: 0°C - 50°C)
Relative Humidity ? 90% (Non-condensing)
Dimensions 86 × 86 × 14 mm (3.39 × 3.39 × 0.55 in)
Installation Desktop, 3M Tape Mounting
Details
Contains Sensor, screw pack, mounting sticker, warranty card
