Milesight LoRaWAN Capacitive Level Sensor

Milesight LoRaWAN Capacitive Level Sensor

EM300-CL-915M

$180.00 NZD
$180.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

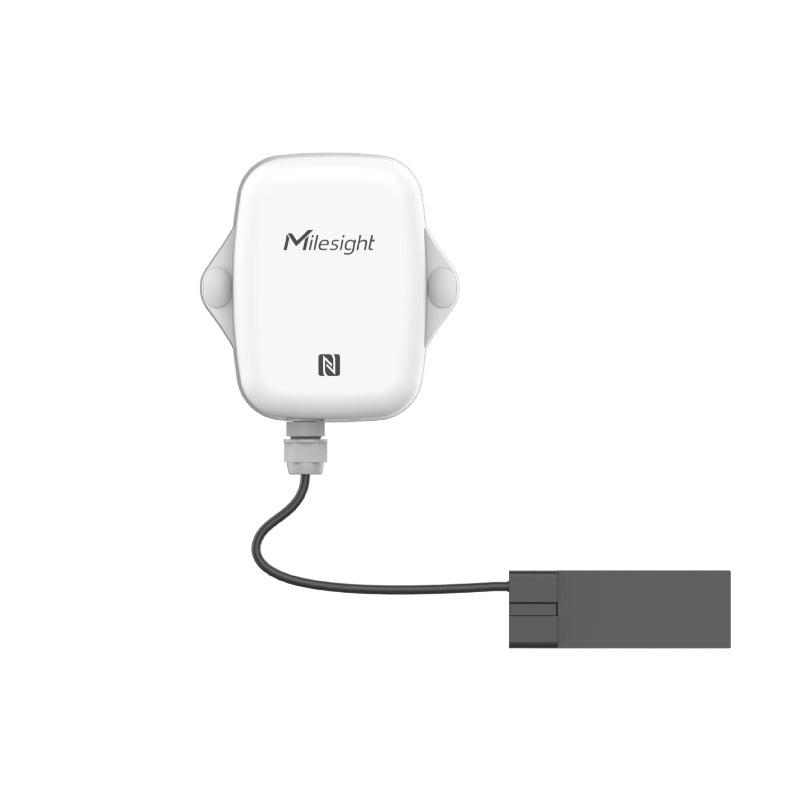

Milesight LoRaWAN Capacitive Level Sensor
EM300-CL is a LoRaWAN® non-contact liquid level sensor, which relies on a capacitive sensing principle. It is mainly used to monitor hand wash in restrooms and sending out alarms when there is insufficient hand wash left. An alarm will be triggered when the hand wash level approaches the electrode detection sheet, signaling hand wash insufficiency. It can be seamlessly integrated with containers of different shapes and sizes to alert and assure handwash is replenished on time, promoting high levels of smart hygiene and cleaning management system.



. .

Features
  • High sensitivity real-time liquid level status monitoring, high stability, timely alarm
  • Strong anti-interference ability and high accuracy based on electrode pad with 2 electrode plates
  • Non-contact liquid level detection for hygiene purposes
  • The minimalist and lightweight electrode pad design allows for convenient installation
  • IP67 Ingress protection
  • A built-in 4000mAh replaceable battery that can work for 10 years without replacement
  • Equipped with NFC for easy configuration
Details
SKU EM300-CL
Wireless Transmission Technology LoRaWAN®
Frequency AU915/AS923
Tx Power 20dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Detector Principle Capacitive Level Sensor
Lead Length 1m
Compatibility Insulating Non-metallic Containers (Plastic, Glass, Acrylic, etc.)
Power On & Off NFC, Power Button (Internal)
Configuration NFC Configuration via Mobile App
Power Supply 1 × 4000 mAh ER18505 Li-SOCL2 Battery (extendable to 2 batteries)
Battery Life 1 >10 years (Trigger 3 Alarms per Day, 25?)
Operating Temperature -20°C to +60°C
Relative Humidity 0% to 95% (non-condensing)
Transceiver ABS + PC, White
Ingress Protection Transceiver: IP67, Electrode Detection Sheet: IP30
Dimension Transceiver: 105.6 × 85.2 × 27 mm, Electrode Detection Sheet: 55 x 50 x 0.2mm
Weight 110g (with 1 battery)
Installation Wall Screw Mounting, 3M Tape Mounting
Details
Contains Sensor, QSG, Warranty Card
