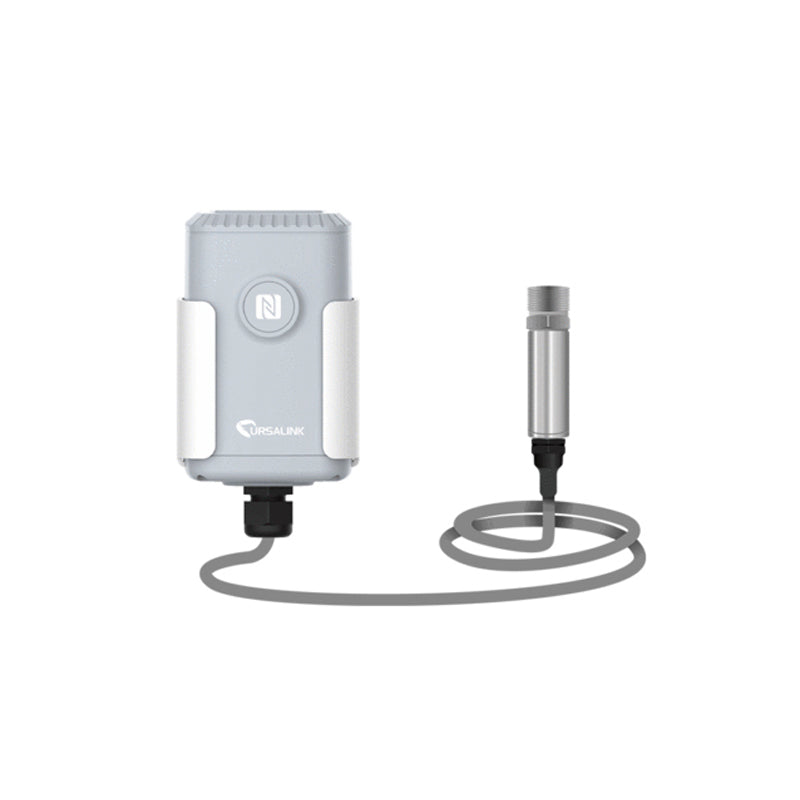

Milesight LoRaWAN AU915/AS923 Outdoor Pipe Pressure IoT Sensor

Milesight LoRaWAN AU915/AS923 Outdoor Pipe Pressure IoT Sensor

EM500-PP-915M-G12M-4842

$647.00 NZD
$647.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Milesight LoRaWAN AU915/AS923 Outdoor Pipe Pressure Sensor with Updated Pipe Sensor
The EM500-PP pipe pressure IoT sensor is a long range wireless sensor compatible with standard LoRaWAN AU915/AS923 protocol. Combined with advanced LoRa technology and 19000mAh battery make it a low-power consumption product with years-long use life. It is designed to measure the pressure of water/oil/gas from a 1/2” pipe connection and it is the fundamental component of a leak detection system.

The EM500-PP-915-G1/2M-4842 is an Outdoor IP66 rated Pipe pressure sensor, used for pressure monitoring in pipelines and tanks.
Great for many applications including smart city, Smart farming / Agriculture.



. .

Features
  • Robust IP66 rated enclosure
  • Configuration via NFC
  • LoRaWAN AU915/AS923
  • Ursalink Cloud compliant
  • Low power consumption
  • 1/2” pipe connection
Details
Manufacturer's Code EM500-PP-915M-G1/2M-4842
Frequency AU915/AS923
Tx Power 20dBm
Sensitivity -147dBm @300bps
Mode OTAA/ABP Class A
Antenna Integrated Ceramic Antenna
Pressure Type Gauge Pressure
Range 0~1600kPa (16Bar)
Accuracy ±0.5%FS
Resolution 1kPa (0.01Bar)
Overload 150%FS
Pressure Connection 1/2” Male
Cable Length 1.5m
Operating Temperature -30°C to +70°C (Transceiver)/-10°C to +70°C (Pipe Pressure Sensor)
Dimension 105.4 × 71× 69.5 mm (Waterproof connector and sensor not included)
Power Input 19000 mAh Li-SOCL2 battery
Mounting Pole, DIN rail, wall
IP Rating IP67(Transceiver)/IP65(Pipe Pressure Sensor)
Configuration Mobile APP or PC software via NFC or USB Type-C
Details
Contents Pipe Pressure sensor, Pole/Wall Mounting kit included
