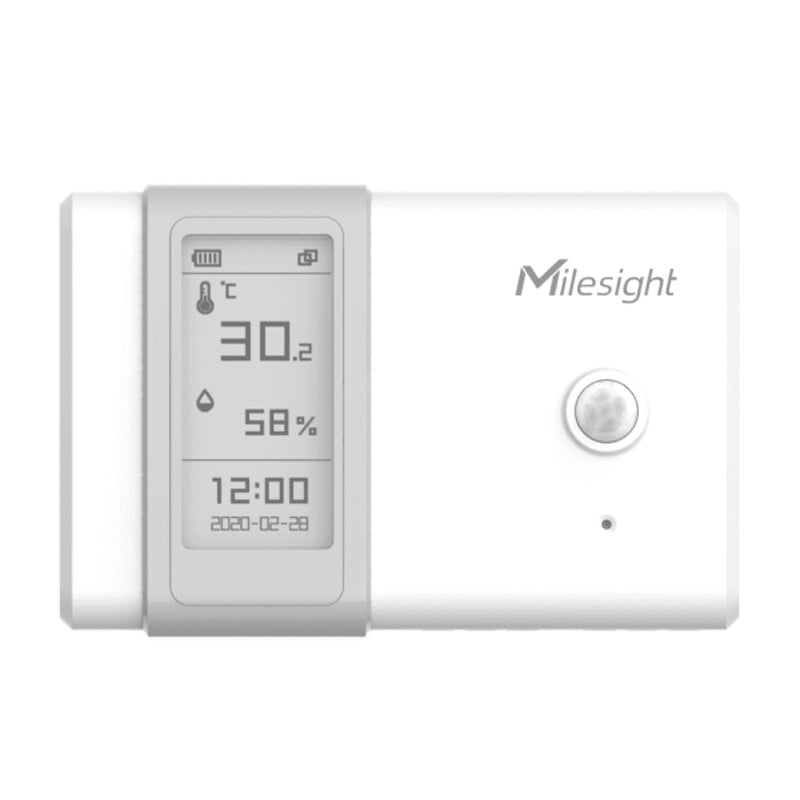

Milesight LoRaWAN AU915/AS923 Ambience Monitoring IoT Sensor

Milesight LoRaWAN AU915/AS923 Ambience Monitoring IoT Sensor

AM104-915m

$75.00 NZD
$75.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Milesight LoRaWAN AU915/AS923 Ambience Monitoring IoT Sensor - Temp, Humidity, PIR and Light
The Milesight AM100 Series consists of multiple smart LoRaWAN AU915/AS923 IoT sensors that are built specifically for indoor ambient measurements. It has a clean and modern design that makes it discrete in indoor ambience. The AM104 measures the following: Temp, Humidity, PIR, Light.



. .

Features
  • Robust LoRa connectivity for indoor or HVAC environments
  • Integrated multiple sensors
  • Configuration via NFC
  • Visual display via E-Ink screen
  • LoRaWAN v1.0/v1.0.2
  • Ursalink Cloud compliant
  • Low power consumption (about 1 year battery life) - Standard AA alkaline battery
  • IoT for next-generation environmental monitoring
Details
Manufacturer's Code AM104-915m
Frequency AU915/AS923
Tx Power 20dBm
Sensitivity -147dBm @300bps
Mode OTAA/ABP Class A
Temperature Range -40degC to + 70degC
Temperature Accuracy ±0.3degC from 0degC to + 70degC, ±0.6degC from -40degC to 0degC
Humidity Range 0% to 100% RH
Humidity Accuracy ±3% RH from 10% to 90%, ±5% RH below 10% and above 90%
Operating Temperature -40°C to +70°C
Relative Humidity 0% to 100% (non-condensing)
PIR Detection Area 94 ° Horizontal, 82 ° Vertical
PIR Detection Distance 5m
Light Range 60000 lux (Visible + IR, IR)
Light Accuracy ±30%
Dimension 105 × 70.4 × 21.2 mm (4.1 × 2.8 × 0.8 in)Power Input
Details
Contains Sensor, 2 x Alkaline Batterys, Mounting Screws, Wall mounting template, Warranty Card, Quick Start Guide
