Milesight LoRaWAN AS923 Portable Smart Socket

Milesight LoRaWAN AS923 Portable Smart Socket

WS523-10A-AU-915M

$208.00 NZD
$208.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock

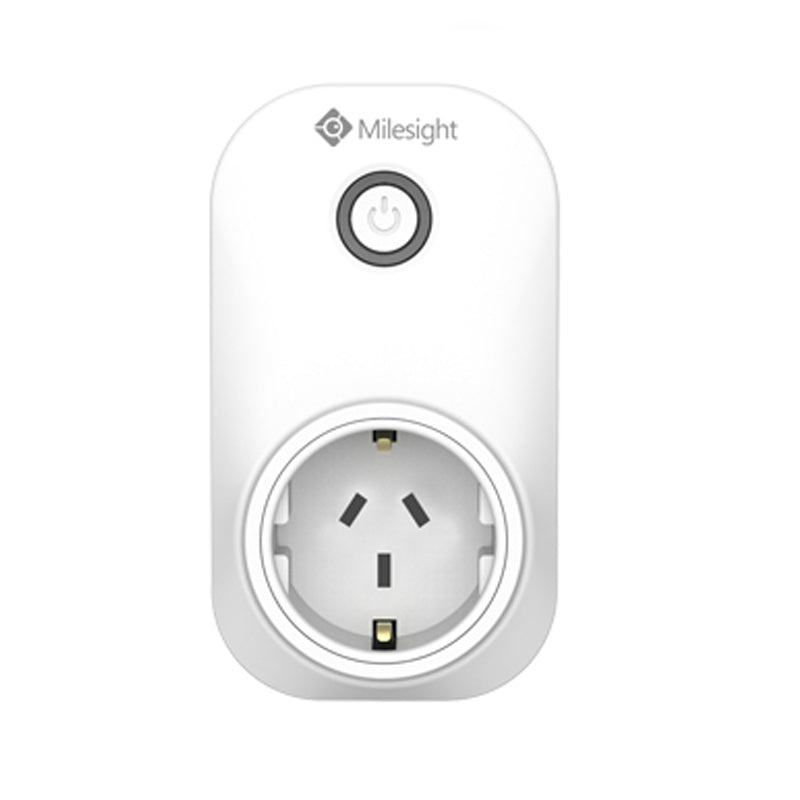

Milesight LoRaWAN AS923 Portable Smart Socket
The Milesight WS523 is a LoRaWAN based smart portable socket for monitoring and control of electrical appliances. Adopting most of international socket standards, WS52x can be used for turning electrical devices on and off locally or remotely and measuring power consumption data of things plugged into it. It can even send overcurrent alarms. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, the WS523 can be monitored and controlled via webpage or mobile App remotely and triggered by other Milesight sensors.



. .

Features
  • Plug and play without any wiring
  • Turn devices on/off and create on/off schedules remotely
  • Collect current, voltage, electrical consumption with support for overload protection
  • Ultra-wide-distance wireless transmission up to line of sight of 15 km
  • Equipped with NFC for one touch configuration and supports card emulation mode
  • Functions well with standard LoRaWAN® gateways and network servers
  • Compliant with Milesight IoT Cloud
Details
Manufacturer's Code WS523-10A-AU-915M
Frequency AU915/AS923
Tx Power 22dBm
Sensitivity -137dBm
Mode OTAA/ABP Class C
Socket & Plug Type AU
Operating Voltage 100~250 VAC, 50~60 Hz
Max Load Capacity 10A (16A Optional), 250 VAC
Measurement Voltage(VAC), Current(A), Power Factor(%), Power Meter(kWh)
Software Configuration NFC
Power Control Button or Remote Control
Advanced Features Schedule Switch, Button Lock, Overcurrent Protection/Alarm
LED Indicator 1
Button ON/OFF, Reset
Material White Polycarbonate
Operating Temperature -10°C to +60°C
Relative Humidity 10% to 90% (non-condensing)
Dimensions 110 × 62 × 35 mm
Details
Contains LoRa Portable Socket, QSG, warranty card
