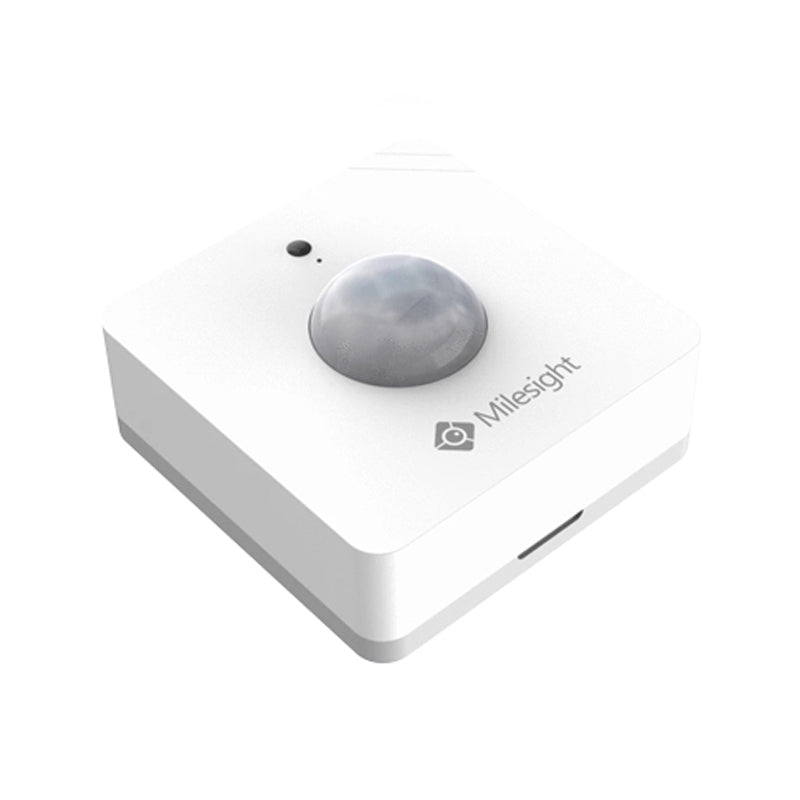

Milesight LoRaWAN AS923 PIR and IoT Light Sensor
The Milesight WS202 is a LoRa IoT based PIR sensor based on passive infrared technology to detect motion or occupancy. The WS202 can detect whether there is movement within the range of 6-8 m and send the changes via a LoRaWAN® network. The WS202 is also equipped with a light sensor which can link PIR detection results to trigger scenes. With its compact size and powerful battery, the WS202 is easy to install anywhere. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can get notified of alarms or occupancy of rooms and trigger other sensors or appliances easily via webpage or mobile App remotely. The WS202 can be widely used in smart homes, smart offices, schools, warehouses, etc.



. .

Features
  • Occupancy or motion detection based on passive infrared and Fresnel Lens
  • Easy to install
  • Built-in light sensor, combines PIR sensor to achieve triggers
  • Ultra-wide-distance wireless transmission up to 15 km with line of sight
  • Equipped with NFC for one touch configuration, supports card emulation mode
  • Functions well with standard LoRaWAN® gateways and network servers
  • Compliant with Milesight IoT Cloud
Details
Manufacturer's Code WS202-915M
Frequency AU915/AS923
Tx Power 22dBm
Sensitivity -137dBm @ 300bps
Mode OTAA/ABP Class A
Detection Area 120 ° Horizontal, 100 ° Vertical
Detection Distance Maximum 8 m
Configuration NFC Configuration via Mobile App
Power Supply 1 × 1650 mAh ER14335 Li-SOCl2 battery
Battery Life >3 years (30 triggers per day)
Operating Temperature -30°C to +60°C
Relative Humidity ?90% (non-condensing)
Ingress Protection IP30
Dimension 50 × 50 × 23.8 mm
Material Anti-flaming Polycarbonate
Color White
Installation On the flat surfaces with screws or 3M tapes
Details
Contains LoRa PIR sensor, QSG, Warranty Card, Mounting Screws, 3M mounting tape
