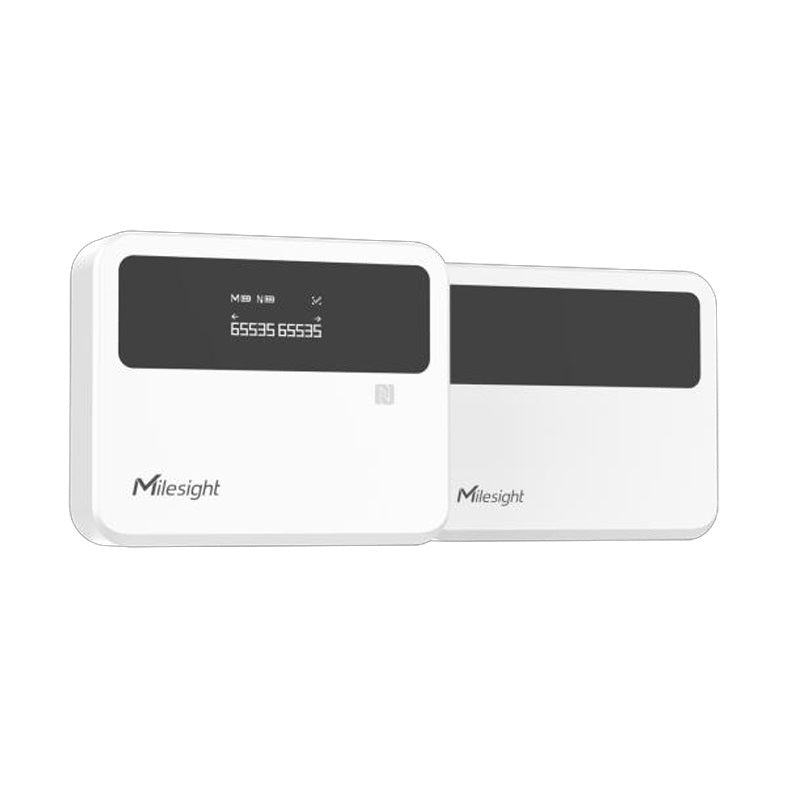

Milesight LoRaWAN AS923 IR Breakbeam IoT People Counter

.. Equipped with two devices, the principle is that the target blocks the infrared beam in the defined area for counting, so it is not affected by the ambient temperature and the color of the target clothes.. As a Milesight D2D controller, the VS360 seamlessly communicates with other Milesight D2D agent devices, establishing more possible connections and paving the way for smoother operations..... Features Bi-Directional People Counting Leveraging Infrared Beams Strong Environmental Adaptability Cost-Effective Accurate Performance 100% Privacy Protection (GDPR Compliant) Long Battery Life up to 3 Years Wireless Deployment Details Manufacturer's Code VS360-915M Technology IR Breakbeam Installation Height 0.7m ~ 1.2m Detection Range 1.2m ~ 3 m Detection Rate1 High Traffic Period Mode: Up to 90% (Single Person: Up to 99%), Low Traffic Period Mode: Up to 85% (Single Person: Up to 99%) Bi-directional Counting support Protocol LoRaWAN, Milesight D2D Frequency US915/AU915/KR920/AS923-1&2&3&4 Tx Power 22 dBm (915 MHz) Sensitivity - Mode OTAA/ABP Class A Screen 1 × OLED Screen for Master Device, 1 × LED Indicator for Node Device Button 1 × Power Button for Both devices, 1 × Reset Button (Internal for Master Device) Configuration NFC Configuration via Mobile App (Master Device) Advanced Feature Hibernate Mode, Data Storage, Data Retransmission, Data Retrievability, Milesight D2D Controller Power Supply 2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries for per device Battery Life Master device: Around 3 Years, (10-min Report Interval, 12 Working Hour per Day, 25°C), Node device: High Traffic Period Mode: Around 3 Years, Low Traffic Period Mode: Around 4 Years, (12 Working Hour per Day, 25°C) Operating Temperature - Relative Humidity 0% - 95% (Non-condensing) Ingress Protection IP30 Dimension 76 x 62 x 20 mm ( 2.99 x 2.44 x 0.79 in) Material & Colour PC (Flame Retardant), Black/White Installation Wall Mount IoT Academy Details Contains 1 x Master device and 1 x Node Device, 2 x2700 mAhER14505 Li-SOCl2 Replaceable Batteries, Mounting Kit Key features 137dBm 10°C ~ 60°C Milesight LoRaWAN AS923 IR Breakbeam IoT People Counter VS360-915M Milesight LoRaWAN AS923 IR Breakbeam People Counter The VS360 is a people counting sensor that is based on IR Breakbeam technology Adjusting the current of the node device reduces range and power consumption which extends the battery life

Key features

• With easy configuration and wireless detection, the VS360 facilitates simple deployment and connectivity
• Perfect for knowing the number of people and triggering other sensors or appliances easily
