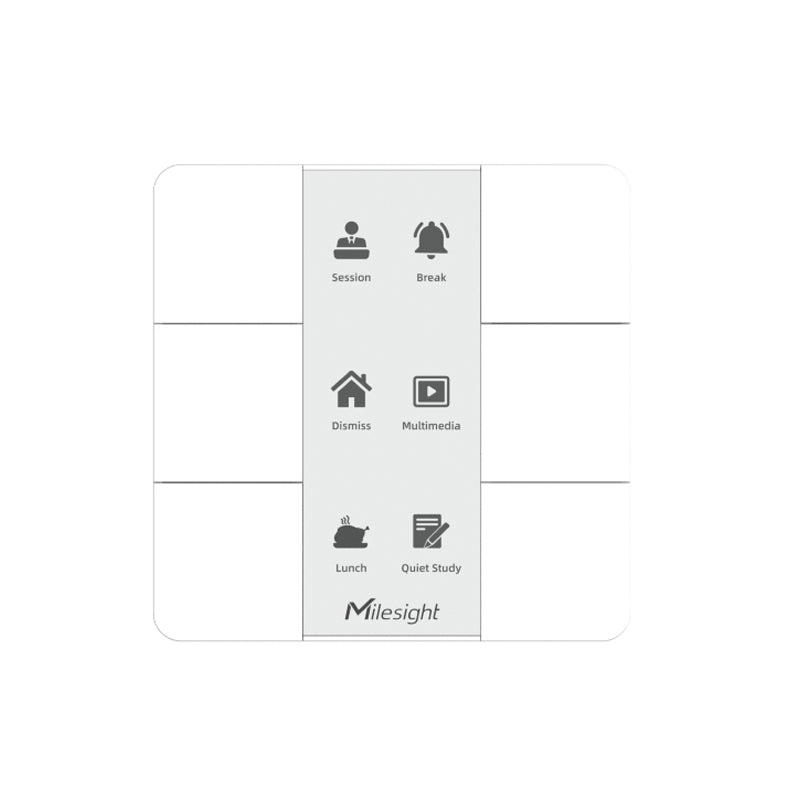

Milesight LoRaWAN AS923 IoT 6 Button Smart Scene Panel
The Milesight WS136 LoRaWAN AU915/AS923 IoT Smart Scene Panel gives a multi button control panel that can activate different pre-defined scenes with one-press. Without any additional cabling the WS136 can be installed anywhere and used to control devices via LoRaWAN® or the Milesight LoRa D2D communication protocol. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution the WS136 can be linked to control other Milesight devices without any development. The WS136 can be widely used for wireless control in smart offices, smart homes, etc



. .

Features
  • Up to 6 scenes settable, each scene can consist of multiple devices
  • Equipped with NFC for one-touch configuration, supports card emulation mode
  • supports Milesight LoRa D2D protocol to enable ultra-low latency and direct control
  • Compliant with standard LoRaWAN® gateways and network servers
  • Compliant with Milesight IoT Cloud
  • Easy installation
Details
Product Code WS136-915M
Technology LoRaWAN®, LoRa D2D
Frequency AU915/AS923
Tx Power 16 dBm
Sensitivity -137dBm
Mode OTAA/ABP Class A
Scene Button 6 Buttons
Configuration NFC
Advanced Features LoRa D2D Controller
Power Supply 2 × 590 mAh CR2450 Lithium Coin Cell Batteries
Battery Life Over 3 years (1080 min interval + 20 presses per day)
Ingress Protection IP30
Color & Material White, PC + ABS (Flame-retardant)
Operating Temperature -10°C to +50°C (E-Ink Screen: 0°C - 50°C)
Relative Humidity ? 90% (Non-condensing)
Dimensions 86 × 86 × 14 mm (3.39 × 3.39 × 0.55 in)
Installation Desktop, 3M Tape Mounting
Details
Contains Sensor, screw pack, mounting sticker, warranty card
