MIlesight LoRaWAN AS923/AU915 VS132 3D ToF People Counting IoT Sensor

MIlesight LoRaWAN AS923/AU915 VS132 3D ToF People Counting IoT Sensor

VS132-915M

$1,622.00 NZD
$1,622.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock
MIlesight LoRaWAN AS923/AU915 VS132 3D ToF People Counting IoT Sensor

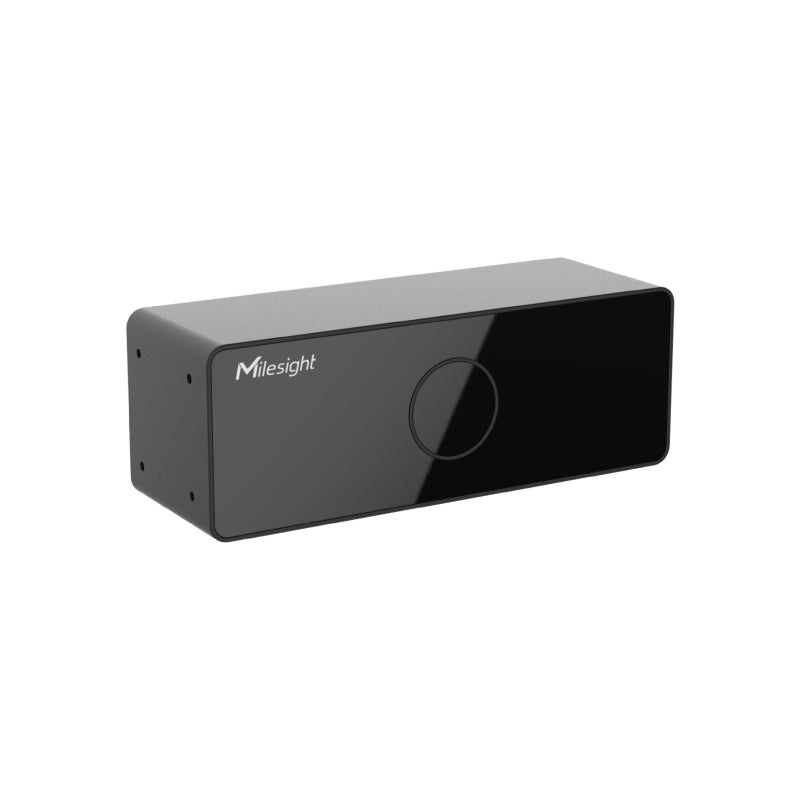

The Milesight VS132 is a LoRaWAN IoT 3D ToF people counting sensor designed to count the number of people entering and exiting. It uses the most advanced Time-of-Flight technology, the VS132 only obtains depth maps instead of images to protect privacy and provide a high level of accuracy. Up to 99.5%. Cooperating with a Milesight LoRaWAN® gateway and the Milesight IoT Cloud solution, it allows users to monitor the flow of people and trigger linkage to control other devices via browser or mobile App remotely. With easy installation, the VS132 has great use in entrances or corridors of retail stores, malls, offices, subways, etc.

Perfect for smart buildings, smart city deployments or industrial use-cases.



. .

Features
  • Up to 99.5% accuracy basing on advanced 3D Time-of-Flight technology
  • Obtain depth map without images capturing, free from privacy concerns
  • Effective in low-light or complete darkness environments
  • Bi-directional Counting
  • Smart U-turn counting to filter redundant counting of people wandering the area
  • Store a million data records locally
  • DC or PoE power supply optional
  • Exquisite design for multiple installation scenarios
  • Equipped with Wi-Fi and Ethernet port for web GUI configuration
  • Acquire people counting data either from LoRaWAN® or Ethernet port (HTTP Post, CGI)
  • Functions well with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud and Milesight DeviceHub
Details
Manufacturer's Code VS132-915M
Frequency AU915/AS923
Tx Power 22dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
ToF FoV 92.5 ° Horizontal, 67 ° Vertical
Detection Range 0.5 - 3m
Installation Height ? 3m
Accuracy 99.5%
Resolution 1mm
Local Storage 1,000,000 data records
Advanced Setting Entrance and exit area customization
Wi-Fi Interface IEEE 802.11 b/g/n, 2.4GHz, only support configuration
Ethernet Port 1 × RJ45 10/100 Mbps Ethernet Port (PoE PD)
Power Input 2-pin 5.08 mm Terminal Block
Power Supply 12 VDC, 2A by Terminal Block, 1 × 802.3 at PoE input
Power Consumption Typical 7.5 W, max 28 W
Operating Temperature -10°C ~ +60°C
Storage Temperature -20°C ~ +60°C
Relative Humidity 0 ~ 95% (Non-condensing)
Color & Material Black, Aluminum Alloy
Weight 296 g
Dimension 140 × 50 × 50 mm
Installation Ceiling Mounting, Wall Mounting, Embedded Mounting
Details
Contains Sensor, QSG, Mounting Screws, Fixing screw, Warranty Card
