Milesight LoRaWAN AS923/AU915 Smart Light Controller

Milesight LoRaWAN AS923/AU915 Smart Light Controller

WS558-915M PN LN

$302.00 NZD
$302.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock

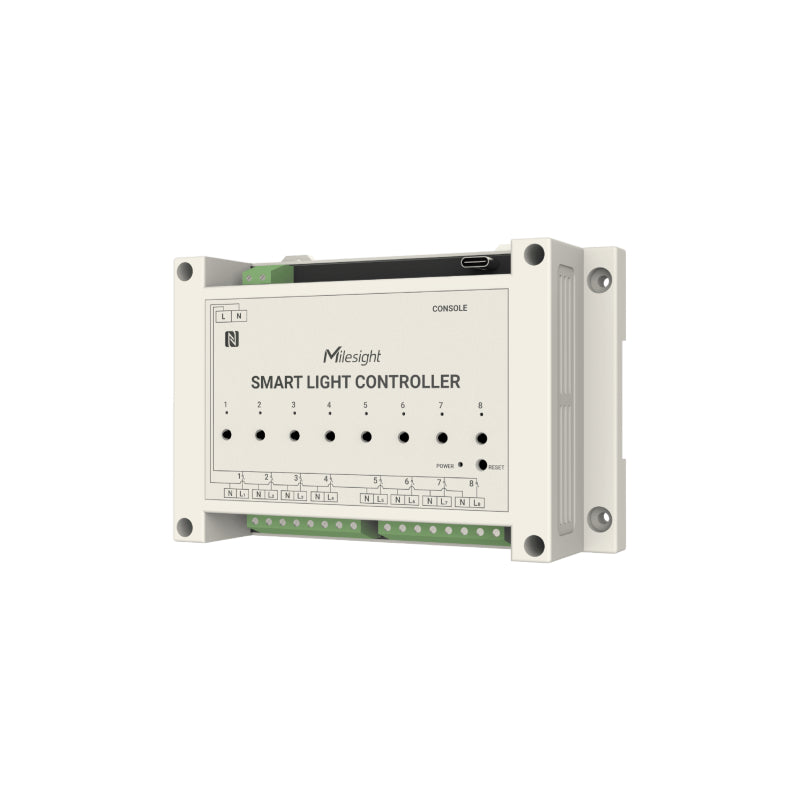

Milesight LoRaWAN AS923/AU915 Smart Light Controller
Milesight WS558 LN is a LoRaWAN® Smart Light Controller that allows occupants to centrally control the lights on eight circuits. With remote and time-based ON/OFF, WS558 enables to improve the overall efficiency of electricity consumption in buildings such as offices, shopping malls, hospitals and schools.

WS558 is a LoRaWAN® Smart Light Controller for monitoring and controlling lights locally or remotely. With 2 circuit typesand8switches, it fits different rooms without the needofre-wiring,reducing the renovation costs. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, WS558canbe monitored and controlled via webpage or mobile Appremotelyand triggered by other Milesight sensors. Besides, WS558supportsMilesight D2D communication protocol, which can set up connection quickly and be controlled without gateway. WS558 can be widely used for wireless control of indoor lights, fans, heaters, machines, etc.



. .

Features
  • Centralized control of 8 lighting circuits and each circuit can be controlled respectively
  • More lights connected to one controller, fewer switch panels, lower wiring costs
  • Set timers and schedules to make lights function automatically
  • Up to 18 hours turn-off delay
  • Remote control from a smartphone anywhere
  • Milesight D2D protocol enables the communication among Milesight LoRaWAN® node devices without a LoRaWAN® gateway.
  • The power consumption measurement
  • In case of any power failure, the present settings will be saved
Details
Input Voltage 100~240 VAC, 50~60 Hz
Outputs 8 Active Outputs
Capacitive & Inductive Load Maximum 5A per output, total 16A
Resistive Load Maximum 10A per output, total 16A
Electrical Measurement Stats Voltage, Current , Power Factor, Power, Power consumption
Protocols LoRaWAN®, Milesight D2D
Frequency AS923, AU915
Tx Power 22 dBm 915 MHz
Sensitivity -137dBm
Lora Class OTAA/ABP Class C
Configuration options NFC, USB Type-C or Downlink
Switch Control Local Press or Remote Control
Advanced Features Multicast, Remote Schedule, Overcurrent Protection, Milesight D2D
Operating Temperature -20°C to +60°C
Relative Humidity ? 95% (Non-condensing)
Dimensions 145 × 90 × 40 mm
Installation options Wall Mounting, DIN Rail Mounting
Details
Contents Lighting Controller, Warranty Card, QSG, DIN Rail Mount, Wall Screws
