Milesight LoRaWAN AS923/AU915 Smart Current Transformer CT310 With 3 Phase 1000A Current Capacity
CT310 is a LoRaWAN Smart Current Transformer for monitoring energy consumption and analyzing usage remotely. CT310 provides multiple current options to suit different energy monitoring applications and supports sending threshold alarms. Its compact size enables quick and safe installation in any indoor space without de-energizing Circuits, thereby simplifying the installation and saving costs. Compliant with Milesight LoRaWAN gateway and Milesight Development Platform solution, CT310 can be conveniently monitored via webpage remotely. CT310 is widely used for energy monitoring in smart buildings, machine failure detection and prevention, etc.

Perfect for smart buildings, smart city deployments or industrial use-cases.



. .

Features
  • Report the RMS current and accumulated current data by minutes
  • High measuring accuracy with a sampling frequency of up to 3.3 kHz
  • Self-powered, free from batteries or external wires
  • Utilize a sampling rate of up to 1s for real-time monitoring and quick alarm response
  • Non-invasive clamp design ensures easy and safe installation without the need for power
  • de-energizing
  • Enable simultaneous detection of three phases with a significantly wide optional detection range of either 500A or 1000A
  • Compliant with standard LoRaWAN® gateways and network servers
  • Equipped with LED indicator to indicate working status and alarms
Details
Frequency AU915/AS923
Tx Power 20dBm
Sensitivity -137dBm @300bps
Detection Parameter RMS Current
Sampling Frequency 3.3 kHz
Working Frequency 50~60Hz
Rated Primary Current 1000 Arms
Start Current 60 Arms
Ingress Protection IP30
Accuracy ±1 %
Resolution 1 mA
Temperature Sensor Measuring range: -20°C ~ 100°C
Antenna Connector 1 × 50 ? SMA Connector (Center PIN: SMA Female)
Transceiver Dimensions 38 × 39.7 × 16mm
CT Clamp Dimensions 97.9 × 119 × 60mm
CT Clamp Wire Max Wire Dia ? 51 mm(?2.01in)
Insulation Voltage 3kVac(r.m.s)(1mA/1min)
Extension Cable Length 100Cm
Operating Temperature -20°C~70°C
Details

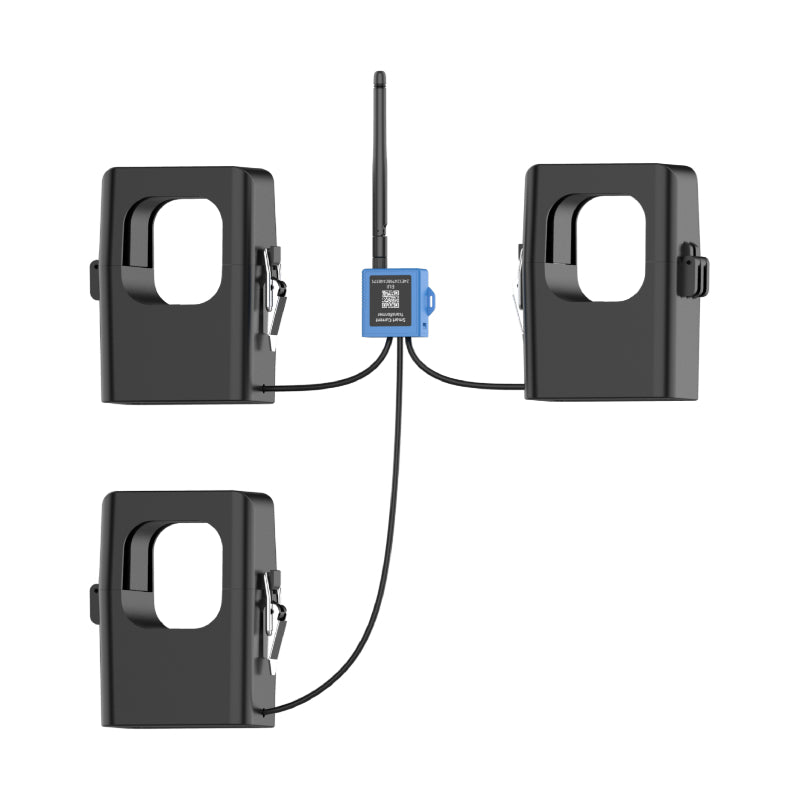

Contains CT310 Sensor, 3 x CT Clamps, LoRa Antenna, USB-C Temperature Probe, Warranty card, QSG
