MIlesight LoRaWAN AS923/AU915 IoT Tilt Sensor with IP67 Case

MIlesight LoRaWAN AS923/AU915 IoT Tilt Sensor with IP67 Case

EM320-TILT-915M

$189.00 NZD
$189.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

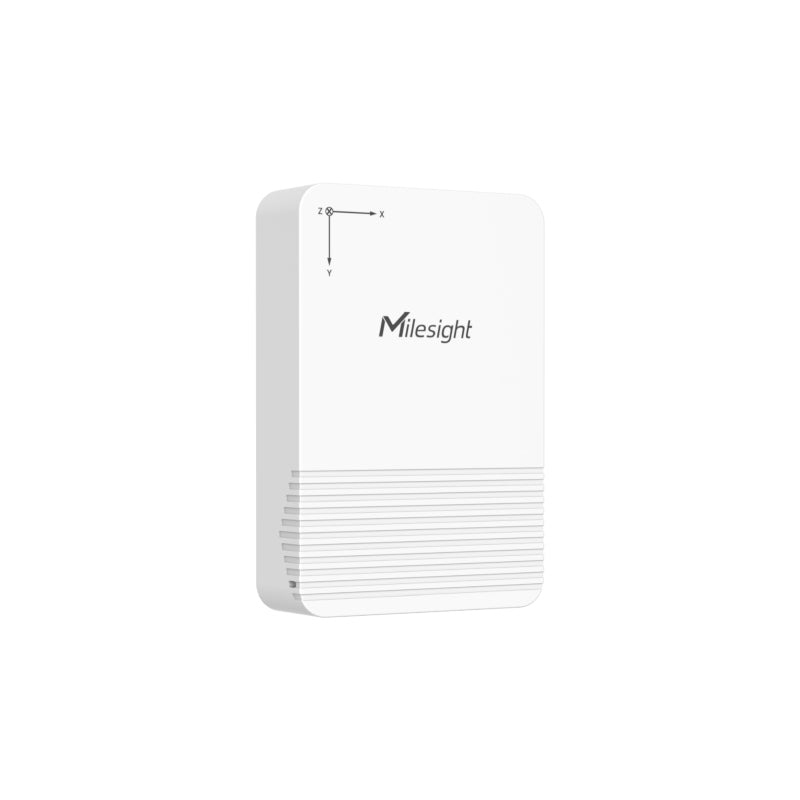

MIlesight LoRaWAN AS923/AU915 Tilt IoT Sensor with IP67 Case
The Milesight EM320-TILT is a LoRaWAN IoT tilt sensor for angle measurements and asset movement detection. With a compact size and 3-axis accelerometer, the EM320-TILT can be installed on or alongside objects easily, to measure its X, Y, Z tilt angles. In addition, the EM320-TILT supports customizing initial position to detect movement based on angle changes and send threshold alarms. Compliant with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can know the angles and tilt threshold alarms in real-time via browser or mobileapp remotely. EM320-TILT can be widely used in tree monitoring, pole lean detection, landslide monitoring, etc.

Perfect for smart buildings, smart city deployments or industrial use-cases.



. .

Features
  • Built-in MEMS accelerometer sensor to measure the 3-axis angles of any objects
  • Flexible threshold condition settings, suitable for different kinds of applications
  • Easy to install, suitable for various types of objects as trees, poles, grounds, etc. ? IP67 waterproof enclosure for outdoor applications
  • Anti-theft design on back cover to secure firm and sturdy installation
  • Ultra-wide-distance wireless transmission up to line of sight of 15 km
  • Equipped with NFC for one touch configuration
  • Function well with standard LoRaWAN IoT gateways and network servers
Details
Manufacturer's Code EM320-TILT-915M
Frequency AU915/AS923
Tx Power 22dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Axis Measurement X, Y and Z
Range - 90° to +90°
Accuracy ± 1°
Resolution 0.01°
Configuration Mobile APP(NFC)
Power Supply 2 × 2700 mAh ER14505 Li-SOCL2 Batteries
Battery Life >5 years
Operating Temperature -30°C to +60°C
Ingress Protection IP67
Dimension 85 × 58 × 18 mm
Material and Colour ABS + PC, White
Mounting Wall
Details
Contains Sensor, QSG, Mounting Screws, Fixing screw, Warranty Card
