Milesight IoT

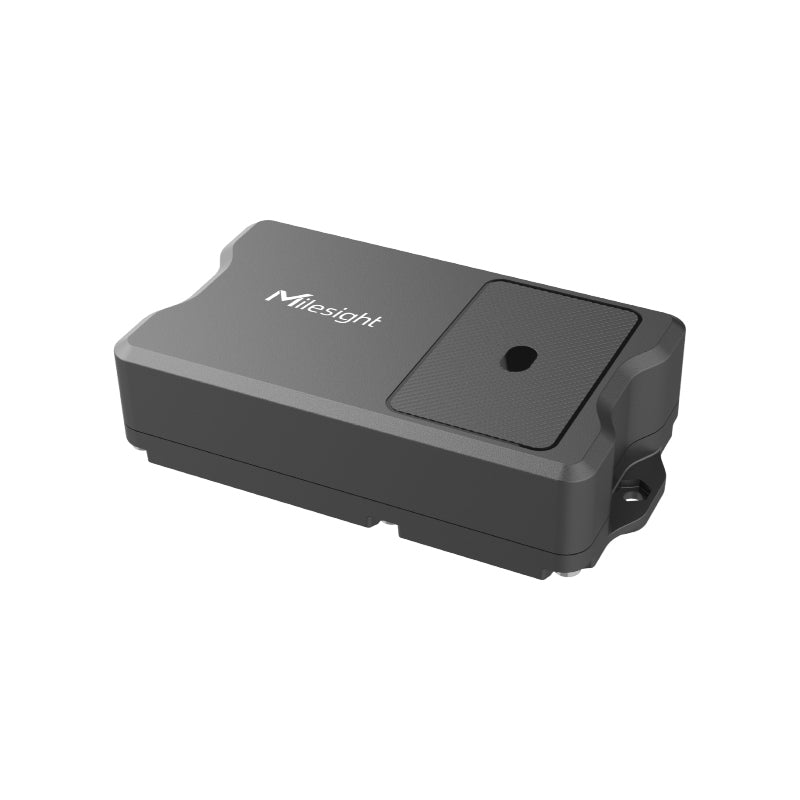

MIlesight LoRaWAN AS923/AU915 EM400-TLD ToF Laser Distance IoT Sensor

MIlesight LoRaWAN AS923/AU915 EM400-TLD ToF Laser Distance IoT Sensor

SKU:EM400-TLD-915M

Regular price $288.00 NZD
Regular price Sale price $288.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock

Quantity
MIlesight LoRaWAN AS923/AU915 EM400-TLD ToF Laser Distance IoT Sensor with IP67 Case
MIlesight LoRaWAN AS923/AU915 EM400-TLD ToF Laser Distance IoT Sensor. EM400-TLD is a highly specialized product among the EM400 Series, which is designed for small & mini trash bins, boasts a range of powerful features, including the ability to detect overflowing garbage, the status of the garbage bin lid, and trash combustion. With pre-set modes that save users from configuration, EM400-TLD is the ideal solution for smart waste management, providing a long-lasting performance that customers can rely on. EM400-TLD employs time-of-flight (ToF) to detect and measure the distance to objects, ensuring almost no blind spots and a stable performance. Leveraging ToF technology, EM400-TLD can effectively monitor the fill level of small & mini trash bin with high accuracy and alert users to empty trash in time.

Perfect for smart buildings, smart city deployments or industrial use-cases.



. .

Features
  • 3-in-1 Sensor Specialized for Smart Waste Management (Fill Level, Device Position, and Combustion)
  • High Accuracy and Almost No Blind Spot
  • Two Pre-set Modes for Seamless User Experience
  • Long-Lasting up to 10 Years Battery Life
  • Rugged and Reliable IP67 Rated Enclosure
  • IP67 Rated
  • 3-axis accelerometer to detect the device position
Details
Manufacturer's Code EM400-TLD-915M
Frequency AU915/AS923
Tx Power 20dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
ToF FoV 27°
Detection Range 2 - 350cm
Detection Accuracy ±2 cm (- 20°C ~ 70°C)
Resolution 1mm
Temperature Range -40° - 125°C
Resolution 0.1°C
Configuration Mobile APP(NFC)
Power Supply 2 x 9000 mAh ER26500 Li-SOCL2 Batteries
Battery Life Around 10 years (standard mode-10 min interval, bin mode-20mininterval, 25°C)
Operating Temperature -30°C to +70°C
Ingress Protection IP67
Dimension 118 × 65 × 30 mm
Material and Colour ABS + PC (Flame Retardant), Black gray
Mounting Flat Surface
Details
Contains Sensor, QSG, Mounting Screws, Fixing screw, Warranty Card
