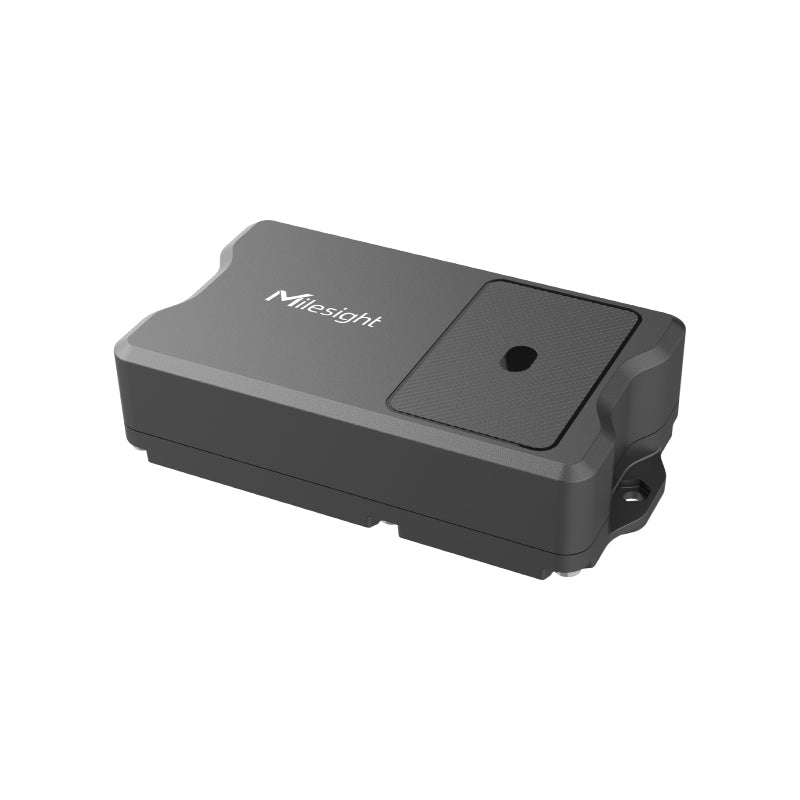

Milesight LoRaWAN AS923/AU915 EM400-MUD ToF Laser Distance IoT Sensor

Milesight LoRaWAN AS923/AU915 EM400-MUD ToF Laser Distance IoT Sensor

EM400-MUD-915M

$336.00 NZD
$336.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock
Milesight LoRaWAN AS923/AU915 EM400-MUD Multifunctional Ultrasonic Distance IoT Sensor with IP67 Case
EM400-MUD is a versatile device among EM400 series, that are equipped with multiple application modes catering to a variety of scenarios such as smart waste management, smart parking and other distance / level measurement applications. EM400-MUD constitutes a powerful solution with its various modes, extended battery life, and robust build, providing a cost-effective and reliable option to enhance efficiency.

Leveraging ultrasonic distance detection, EM400-UDL ensures a stable and reliable performance while detecting different solid or liquid mediums. Featuring non-contact distance measurement, the probe of EM400-UDL will remain unaffected or contaminated by the medium detected, and deliver highly accurate measurement.

The EM400 MUD come from factory with 3 Preset Usage modes Standard, Bin Mode and Parking lot Mode each designed to cater for the specific needs of each application

Perfect for smart buildings, smart city deployments or industrial use-cases.



. .

Features
  • Non-Contact Distance Measurement
  • Three Pre-set Modes for Seamless User Experience
  • Standard Mode/Parking Lot Mode (LoRaWAN version)/Bin Mode
  • Ultrasonic Distance Detection with Small Blind Spots
  • Long-Lasting up to 10 Years Battery Life
  • Rugged and Reliable IP67 Rated Enclosure
  • IP67 Rated
  • 3-in-1 Sensor For Powerful Performance
  • Ultrasonic Distance Sensor, 3-axis Accelerometer and NTC Thermistor
Details
Manufacturer's Code EM400-MUD-915M
Frequency AU915/AS923
Tx Power 16dBm
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Detection Range 3 - 450cm
Detection Accuracy ±1 cm (- 15°C ~ 60°C)
Resolution 1mm
Temperature Range -40° - 125°C
Resolution 0.1°C
Configuration Mobile APP(NFC)
Power Supply 2 x 9000 mAh ER26500 Li-SOCL2 Batteries
Battery Life Around 10 years (standard mode-10 min interval, bin mode-20 min interval, 25°C)
Operating Temperature -30°C to +70°C
Ingress Protection IP67
Dimension 118 × 65 × 80 mm
Material and Colour ABS + PC (Flame Retardant), Black gray
Mounting On the Flat Surfaces with Screws
Details
Contains Sensor, QSG, Mounting Screws, Fixing screw, Warranty Card
