• MIlesight LoRaWAN AS923/AU915 DS3604 IoT E-Ink Display
1 1

Milesight IoT

MIlesight LoRaWAN AS923/AU915 DS3604 IoT E-Ink Display

MIlesight LoRaWAN AS923/AU915 DS3604 IoT E-Ink Display

DS3604-915M

$331.00 NZD
$331.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Low stock

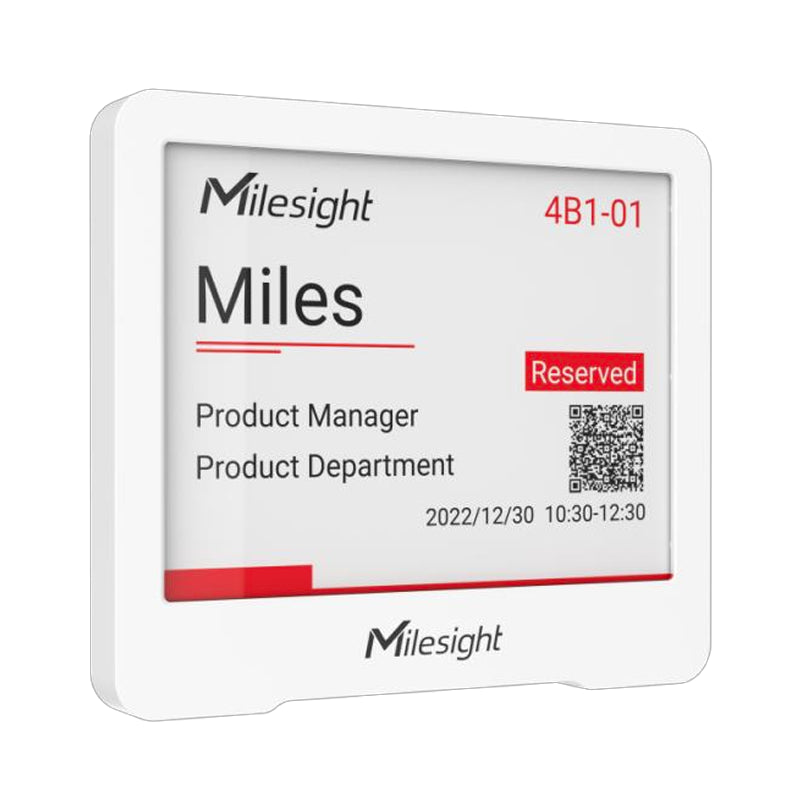

Milesight LoRaWAN AS923/AU915 DS3604 IoT E-Ink Display
Milesight LoRaWAN AS923/AU915 DS3604 IoT E-Ink Display. E-Ink digital paper is a form of ink made from micro-particles in a thin film layer. The e-ink display is bistable, which allows the image on the e-ink screen to be retained even when all power is removed. Pre-customized Templates Are Flexible for Different Scenarios, such as Workplace, Hotel, Hospital, Retail Store, Etc. Up to 150 Languages Including English, Spanish, French, Japanese, Portuguese, Chinese (Simplified & Traditional), etc. (Exclude Hebrew, Arabic & Thai).

Perfect for smart buildings, smart city deployments or industrial use-cases.



. .

Features
  • Bigger E-ink Screen Featuring Red/White/Black Color Display
  • Customized Templates in Multiple Modules and Languages
  • Low Power Consumption with up to 5 Years Battery Life with 3 × 590mAh CR2450 Lithium Batteries
  • Open API and a LoRaWAN Button Enable Various Applications
  • support Local and Remote Control for Bulk Deployment
  • Flexible, Shatterproof and Light 4.2 Inches Screen
  • Bi-stable EPD (E-ink Display) Black, White and Red Colors
  • 400 × 300 Pixels Display with Near 180° Viewing Angle
Details
Manufacturer's Code DS3604-915M
Frequency AU915/AS923-1&2&3&4
Technology LoRaWAN®
Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137dBm
Mode OTAA/ABP Class A/Class B ( Default OTAA Class B)
E-ink Screen 4.2-inch Black & White & Red E-Ink Screen
Resolution 400 x 300 Pixels
DPI 119
Viewing Angle 180°
Refresh Rate 16s (10 – 40°C)
Display Character Latin alphabet, English alphabet, Cyrillic alphabet, Greek alphabet, Chinese character, Japanese character, and Hangul
Display Languages support Displaying up to 150 Languages Including English, Chinese (Simplified & Traditional) , Spanish, French, Japanese, Portuguese, etc. (Exclude Hebrew, Arabic & Thai)
Button 1 x Reset Button (Internal) + 1 x Screen Button
Buzzer 1 x Buzzer
Configuration NFC Configuration via Mobile App
Power Supply 3 × 590mAh CR2450 Lithium Batteries
Battery Life Around 5 Years (Class A Mode + 1 Screen Refresh per Day) Around 1 Year (Class B Mode + 12 Screen Refreshes per Day)
Operating Temperature 0°C to +40°C (0? to +104?)
Operating Humidity 0% to 95% (non-condensing) below 25°C/77?
Ingress Protection IP30
Color & Material White, ABS + PC
Dimension 99 × 87 × 10.5 mm (3.90 × 3.43 × 0.41 in)
Installation 3M Tape Mounting, Wall Screw Mounting
Details
Contains Sensor, QSG, Mounting Screws, Fixing screw, Warranty Card
View full details
