Milesight LoRaWAN 9 in 1 Indoor Ambience Monitoring LoRaWAN IoT Sensor (HCHO Version)

Milesight LoRaWAN 9 in 1 Indoor Ambience Monitoring LoRaWAN IoT Sensor (HCHO Version)

AM319-HCHO-915M

$788.00 NZD
$788.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Milesight LoRaWAN 9 in 1 Indoor Ambience Monitoring Sensor - Temp, Humidity, PIR, Light, TVOC, Barometric Pressure, CO2, HCHO (Formaldehyde), PM2.5 and PM10165

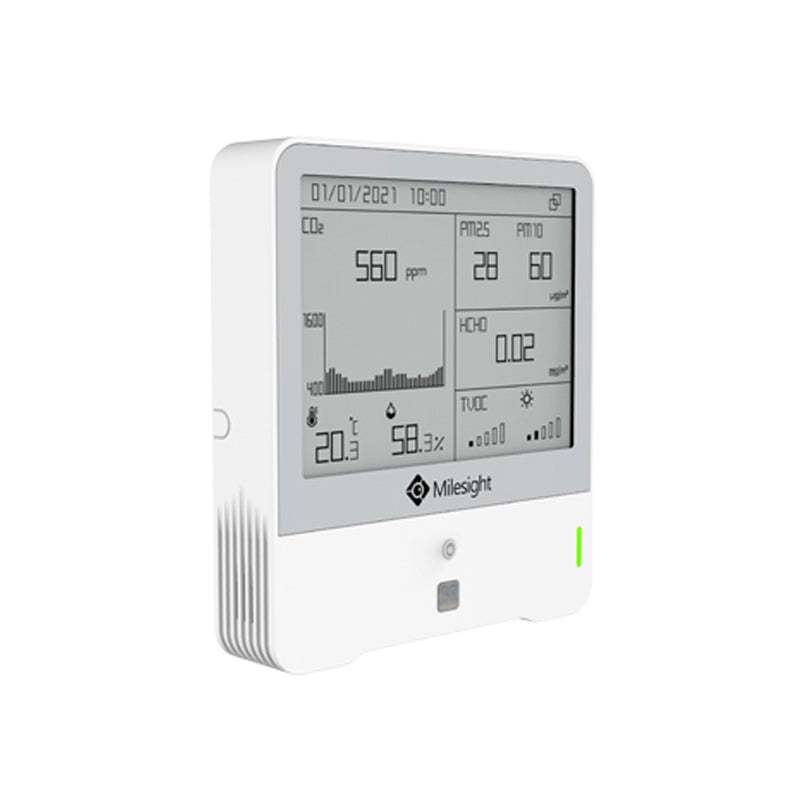

The Milesight AM319 is a compact indoor ambience monitoring LoRaWAN IoT sensor for measurement of temperature, humidity, light, CO2 concentration, HCHO level, TVOC, barometric pressure, PM2.5, PM10 and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. AM300 series is widely used for business offices, stores, classrooms, hospitals, homes, etc.



. .

Features
  • Integrated with multiple sensors: humidity, temperature, CO2, light, barometric pressure, PM2.5, PM10, etc.
  • Multiple display modes and clear emoticon to easily understand the comfort levels via screen
  • Equipped with traffic LED and buzzer to indicate device status and threshold alarms
  • support more than 20,000 data records store locally
  • Compliant with standard LoRaWAN IoT gateways and network servers
  • Perfect device for Environmental Monitoring for Business, Education and Homes
Details
Model AM319-HCHO-915M
Frequency AU915 or AS923
Tx Power 22dBm
Sensitivity -137dBm @300bps
Work Mode Class C
Temperature Range -40°C - 85°C
Accuracy ± 1°C
Resolution 0.1°C
Humidity Range 0% - 100% RH
Accuracy ± 3%
Resolution 0.5% RH
PIR Detection Area 80 ° Horizontal, 55 ° Vertical
Detection Range 5 m
Status Vacant/Occupied
Light Range 0-60000 Lux (display as 6 levels, 0-5)
TVOC Range 0-500 (IAQ Index)
Accuracy ±15 %
Barometric Pressure Range 300 - 1100 hPa (-40°C - 85°C)
Accuracy ±0.6 hPa
Resolution 0.1 hPa
Carbon Dioxide (CO2) Range 400 - 2000 ppm
Accuracy ±50 ppm or ±5 % of reading
Resolution 1 ppm
PM2.5 & PM10 Range 0 - 1000 ?g/m3
Accuracy 0-100(±10?g/m3), 100-1000(±10 %)
Resolution 1 ?g/m3
Formaldehyde (HCHO) Range — 0 - 6 mg/m3
Accuracy ±10 %
Resolution 0.01 mg/m3
Display 4.2-inch Black & White E-Ink Screen
Buttons 1 × Power Button + 1 × Reset Button
LED & Buzzer 1 × Traffic Light Status Indicator + 1 × Buzzer
Power Supply 5V/1A by Type-C Port
Operating Temperature -20°C - 60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity 10% - 90% (non-condensing)
Ingress Protection IP30
Dimension 100.8 × 114 × 22 mm
Installation Wall Mounting
Details
Contains QSG, power adaptor, USB cable, Mounting bracket, Mounting screws
