Milesight AM307-915M LoRaWAN 7 in 1 Indoor Ambience Monitoring IoT Sensor - Temp, Humidity, PIR, Light, TVOC, Barometric Pressure and CO2

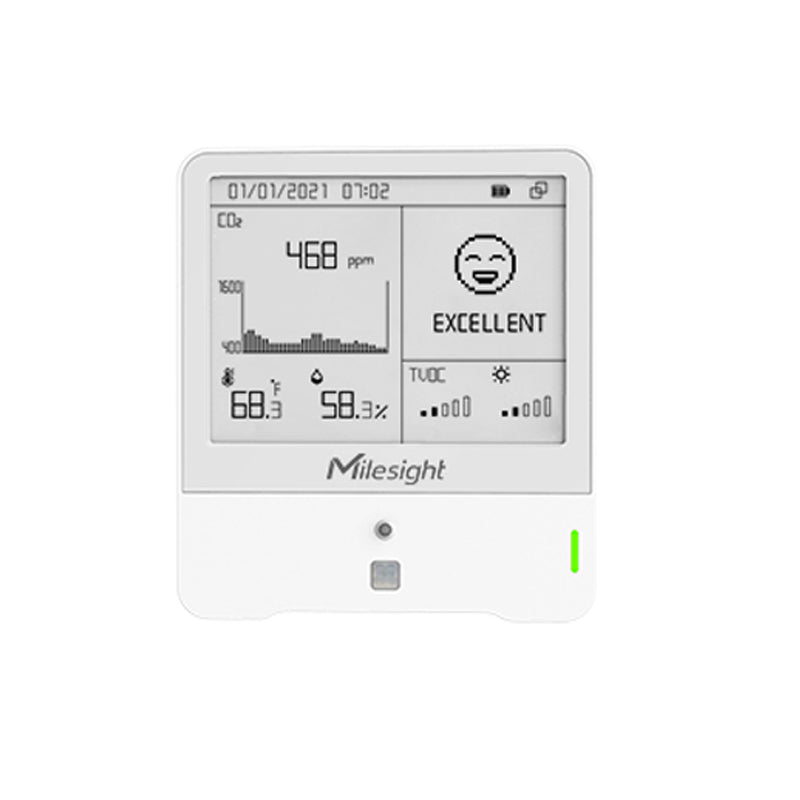

The Milesight AM307 is a compact indoor ambience monitoring IoT sensor for measurement of temperature, humidity, light, CO2 concentration, TVOC, barometric pressure, and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. The AM307 series is widely used for business offices, stores, classrooms, hospitals, homes, etc.



. .

Features
  • Integrated with multiple sensors: humidity, temperature, CO2, light, barometric pressure,
  • Multiple display modes and clear emoticon to easily understand the comfort levels via screen
  • Equipped with traffic LED and buzzer to indicate device status and threshold alarms
  • support more than 20,000 data records store locally
  • Compliant with standard LoRaWAN® gateways and network servers
  • Perfect device for Environmental Monitoring for Business, Education and Homes
Details
Model AM307-915M
Frequency AU915 or AS923 switchable
Tx Power 22dBm
Sensitivity -137dBm @300bps
Work Mode Class A
Temperature Range -40°C - 85°C
Accuracy ± 1°C
Resolution 0.1°C
Humidity Range 0% - 100% RH
Accuracy ± 3%
Resolution 0.5% RH
PIR Detection Area 80 ° Horizontal, 55 ° Vertical
Detection Range 5 m
Status Vacant/Occupied
Light Range 0-60000 Lux (display as 6 levels, 0-5)
TVOC Range 0-500 (IAQ Index)
Accuracy ±15 %
Barometric Pressure Range 300 - 1100 hPa (-40°C - 85°C)
Accuracy ±0.6 hPa
Resolution 0.1 hPa
Carbon Dioxide (CO2) Range 400 - 5000 ppm
Accuracy ±30 ppm or ±3 % of reading
Resolution 1 ppm
Display 4.2-inch Black & White E-Ink Screen
Buttons 1 × Power Button + 1 × Reset Button
LED & Buzzer 1 × Traffic Light Status Indicator + 1 × Buzzer
Power Supply 4 × 2700 mAh ER14505 Li-SOCl2 battery
Operating Temperature -20°C - 60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity 10% - 90% (non-condensing)
Ingress Protection IP30
Dimension 100.8 × 114 × 22 mm
Installation Wall Mounting
Details
Contains 4 x AA Batteries, Mounting bracket, Mounting screws, warranty, QSG.
