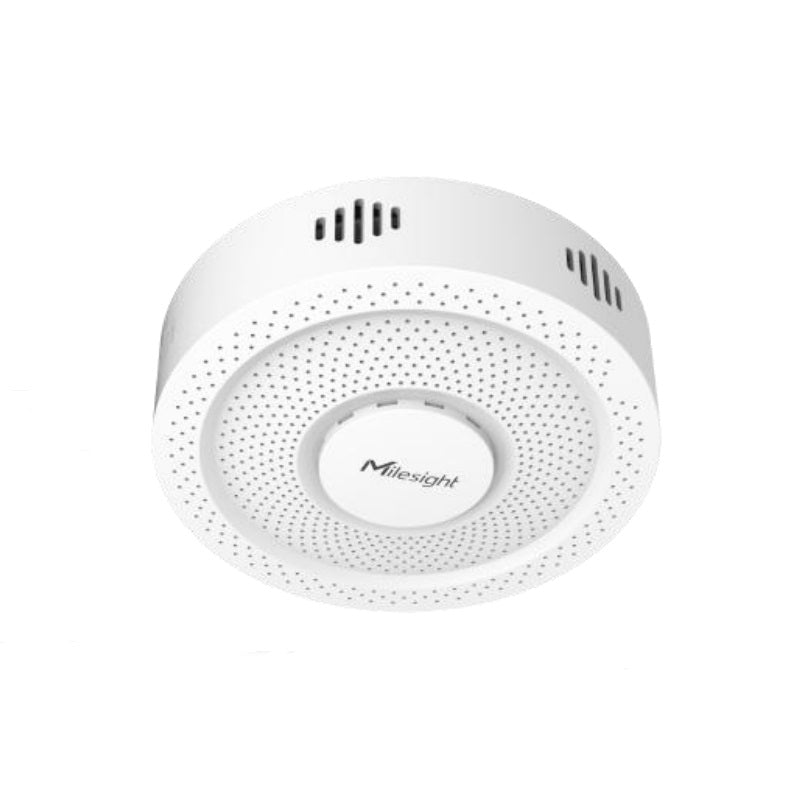

Milesight GS601 AU915/AS923 LoRaWAN IoT Room Based Vape Sensor

Milesight GS601 AU915/AS923 LoRaWAN IoT Room Based Vape Sensor

GS601-915M

$534.00 NZD
$534.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Milesight GS601 AU915/AS923 LoRaWAN IoT Room Based Vape Sensor
Milesight GS601 AU915/AS923 LoRaWAN IoT Room Based Vape Sensor. GS601 is a LoRaWAN vape detector designed to identify vaping and smoking events and send alerts. Equipped with a suite of powerful embedded sensors, GS601 simultaneously measures temperature, humidity, TVOC, and PM parameters.

When environmental changes reach the preset thresholds, the detector activates both the LED light alarm and buzzer sound alarm. In addition to local alerts, GS601 can also remotely report the air quality status and alarm messages via LoRaWAN technology. By integrating with Milesight LoRaWAN® gateway and Milesight Development Platform, users can visually monitor all sensor data and manage the device remotely.

GS601 seamlessly blends into various installation environments, making it ideal in restrooms, changing rooms, classrooms, stairwells, apartments and other locations.



. .

Features
  • Multi-Sensor Integration
  • Real-Time Status Alerts
  • Resilient Against Environmental Interference
  • Adjustable Buzzer Hibernation Duration
  • Instant Flame Alarming
  • Anti-Tamper & Theft Protection
  • Equipped with a vibration sensor to detect acts of vandalism or tampering
  • LoRaWAN IoT compliant
  • Weed/Marijuana Detection Including vape and smoked ones
Details
Product Code GS601
Technology LoRaWAN®
Frequency RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power 16dBm (868MHz)/22dBm(915MHz)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class C
Temperature Operating Principle Digital CMOSens technology (MEMS): Range -20°C ~ 60°C; Accuracy ± 0.2°C; Resolution 0.1°C
Humidity Operating Principle Digital CMOSens technology (MEMS): Range 0% ~ 100% RH; Accuracy ± 2% RH; Resolution 0.5% RH
Vape Index Operating Principle Laser Scattering: Range 0 ~ 100; Accuracy ±10; Resolution 1
TVOC Operating Principle MOX (MEMS): Range 0 ~ 2000 ?g/m3: Accuracy 20 ?g/m3 ±15% of readings (1 ~ 500 ?g/m3); Resolution 1 ?g/m3
PM1.0 & PM2.5 & PM10 Operating Principle Laser Scattering: Range 0 ~ 1000 ?g/m3; PM1.0&PM2.5 Accuracy 0~100 ug/m3: ±10 ug/m3, 100~1000 ug/m3: ±10 % of measured value; PM10 Accuracy 0~100 ug/m3: ±25 ug/m3, 100~1000 ug/m3: ±25 % of measured value; Resolution 1 ?g/m3
Button 1 × Reset Button
LED & Buzzer 1 × Status/Alarm Indicator + 1 × Buzzer (70dB@1m)
Configuration Mobile App via NFC
Power Supply 5V/1A by Type-C Port (included)
Operating Temperature -5°C ~ 45°C
Relative Humidity 0 ~ 95% (non-condensing)
Ingress Protection IP30
Dimension ? 128 × 40 mm (? 5.04 × 1.57 in)
Installation Ceiling Mounting
Details
Included 1 x GS601 Vape Sensor, 1 x USB-C power supply and cable, 1 x Wall/Ceiling Mount
