Milesight GS301 AU915/AS923 LoRaWAN IoT Bathroom Gas/Odour Detector

Milesight GS301 AU915/AS923 LoRaWAN IoT Bathroom Gas/Odour Detector

GS301-915M

$1,123.00 NZD
$1,123.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

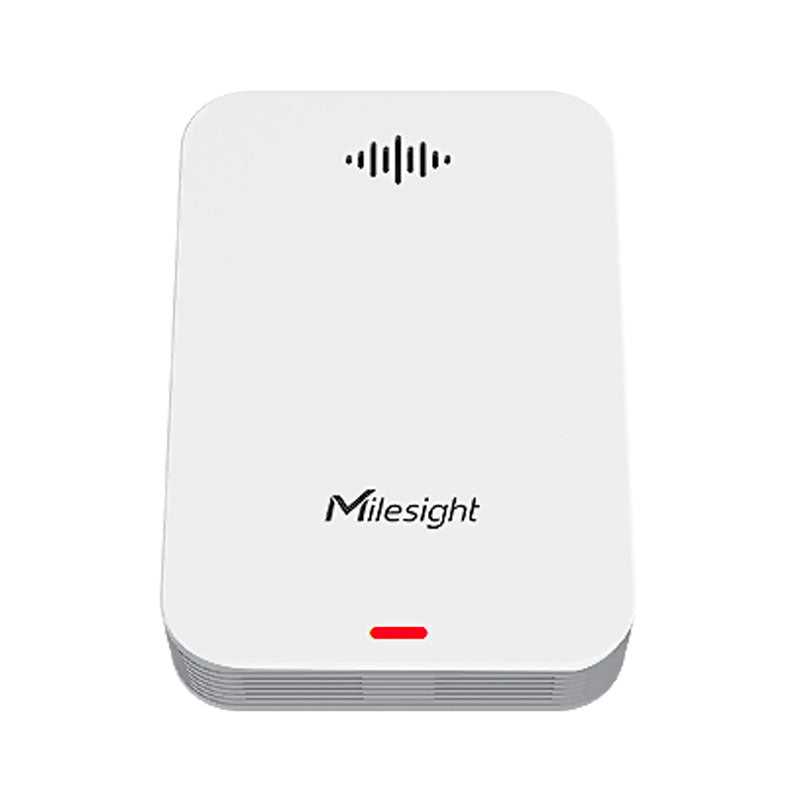

Milesight GS301 LoRaWAN IoT Bathroom Odour Detector including ammonia (NH3) and hydrogen sulfide (H2S) gas
The Milesight GS301 is a 4-in-1 LoRaWAN US915/AU915/AS923 IoT bathroom odour detector, used to detect ammonia (NH3) and hydrogen sulfide (H2S) gas according to their electrochemical principles. The Milesight GS301 is also able to detect temperature and humidity to allow users to be fully aware of the environment of bathrooms. When the NH3 or H2S gas concentration reaches the preset threshold, the detector will trigger both LED light alarm and buzzer to notify people to ventilate the area, which is an important part of smart bathroom solutions. Apart from local alarms, GS301 can also report the sensor data and alarm messages remotely by the use of LoRaWAN® technology. Integrating with Milesight LoRaWAN® gateways and Milesight IoT's Cloud solution, users can monitor all sensor data and control the device remotely and easily. Moreover, the GS301 supports Milesight D2D (Device 2 Device) to enable ultra-low latency control without gateways. This sensor is also compatible with Scopious IoT.



. .

Features
  • Built-in high accuracy electrochemical gas detection sensor with more than a 3-year life expectancy
  • supports LoRaWAN IoT US915/AU915/AS923-1&2&3&4
  • Built-in multiple sensors including NH3, H2S, temperature and humidity
  • Built-in batteries to achieve wireless power supply and decrease the installation cost
  • Equipped with buzzer and LED indicator to indicate threshold alarms
  • Damp proof coating inside the device to ensure device will work well in various conditions
  • supports Milesight's D2D protocol to enable ultra-low latency and direct ventilation control without gateways
  • Built-in NFC for easy configuration
  • Compatible with standard LoRaWAN® gateways and network servers
Details
Model GS301-915M
Protocol LoRaWAN, Milesight D2D
Frequency US915/AU915/AS923-1&2&3&4
Tx Power 22 dBm
Sensitivity -137dBm
Mode OTAA/ABP Class A
Ammonia (NH3) Detection Principle Solid Polymer Electrochemical
Range 0 ~ 10 ppm
Accuracy ± 5% (-40 - 35°C)
Long-term Stability 1 % accuracy drift per month
Resolution 0.01 ppm
Hydrogen Sulfide (H2S) Detection Principle Solid Polymer Electrochemical
Range 0-5 ppm
Accuracy ± 5% (-40 - 35°C)
Long-term Stability 1 % accuracy drift per month
Resolution 0.01 ppm
Temperature Range -40 - 85°C
Accuracy ± 0.2°C
Resolution 0.01°C
Humidity Range 0 - 100%RH
Accuracy ± 2%
Resolution 0.5%RH
LED & Buzzer 1 × Status/Alarm Indicator + 1 × Buzzer
Button 1 × Reset/Reboot Button
Configuration Mobile App via NFC
Advanced Feature Milesight D2D Controller
Power Supply 4 x 4000 mAh ER18505 Li-SOCl2 Replaceable Batteries
Sensor Life 3 Years
Battery Life Around 3 Years (10 min interval)
Operating Temperature -40°C - 55°C
Relative Humidity 0% - 95% (non-condensing)
Ingress Protection IP30
Dimension 120 × 85 × 32.5 mm
Material & Color PC+ABS (Flame Retardant), White
Installation Wall Mounting
Details
Contains GS301 sensor, QSG and mounting screws
