Milesight FT101 LoRaWAN AU915/AS923 IoT Field Tester

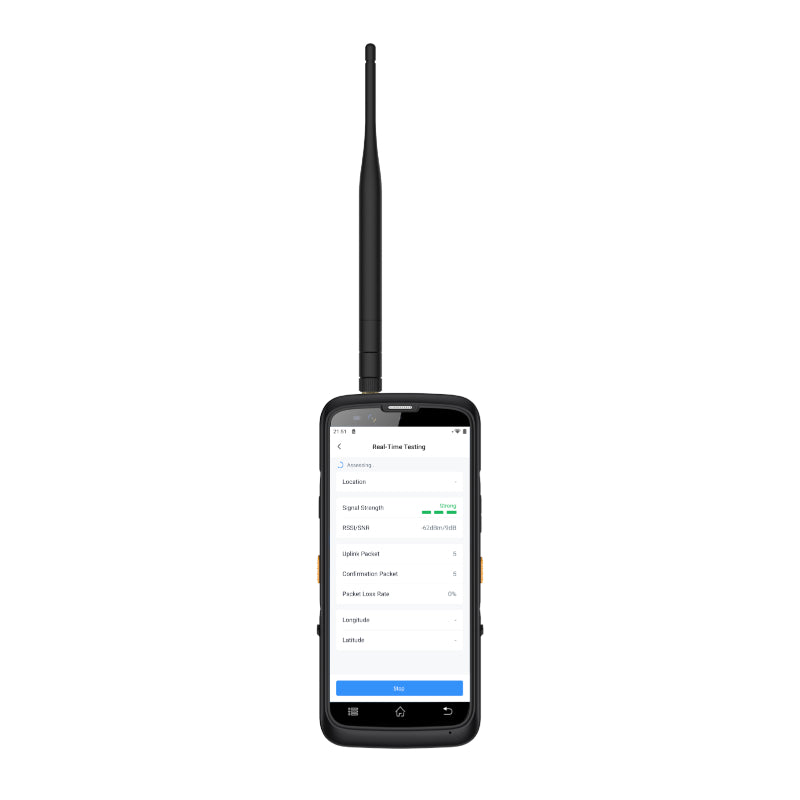

Milesight Field Tester FT101 is a portable LoRaWAN® network testing device. With different kinds of antennas, it can support global LoRaWAN® frequencies to record the signal status and packet loss rate to monitor the network status from field and verify the coverage of different LoRaWAN® gateways, to optimize the best places to deploy LoRaWAN® network devices. Equipped with a 5.72-inch touchscreen display, users are able to operate the signal test procedure and monitor the real-time network status friendly. With a built-in battery and type-C port, it can work for 8 hours and support type-C power bank charge to bring the device everywhere easily.





. .

Features
  • Real-Time Network Signal Testing and Analysis
  • 5.72 Inch HD Touch Screen
  • Full Frequency Band Testing Capability
  • Records Signal Test Results with GPS Location
  • Seamless Report Export and Data Analysis
  • Long-lasting Battery Life
  • Compliant with standard LoRaWAN® gateways and network servers
  • Quick and easy device management with Milesight IoT Cloud or the Scopious Network
Details
Model FT101-915M
Frequency AU915 or AS923 switchable
Tx Power 22dBm
Sensitivity -137dBm @300bps
Work Mode OTAA Class A
Screen 5.72-inch TP LCD Touch Screen
Resolution 1440 x 720 Pixels
CPU Octa-core MTK6762, 2 GHz
Memory 4GB RAM + 64GB ROM
Operating System Android 12
Wi-Fi Standard 802.11b/g/n 2.4GHz
NFC support ISO/IEC 14443A Protocol, Reading Distance: 1-3cm
Cellular Bands B1/B3/B5/B7/B8/B20
GNSS GPS/Glonass/Beidou/Galileo
Rear Camera 13MP, Autofocus with Flashlight
Battery Life Around 8 Hours (Standby Mode: >300h)
Battery Size 4300mAh Lithium-iron Chargeable Battery
Operating Temperature -10°C ~ +50°C
Relative Humidity 0 ~ 95% (Non-condensing)
Dimension 178 × 83 × 17 mm
Weight 242g (Without Antenna)
Details
Contains FT101 Android Field Tester, AU/NZ Charger, Warranty card, Quick Start guide
