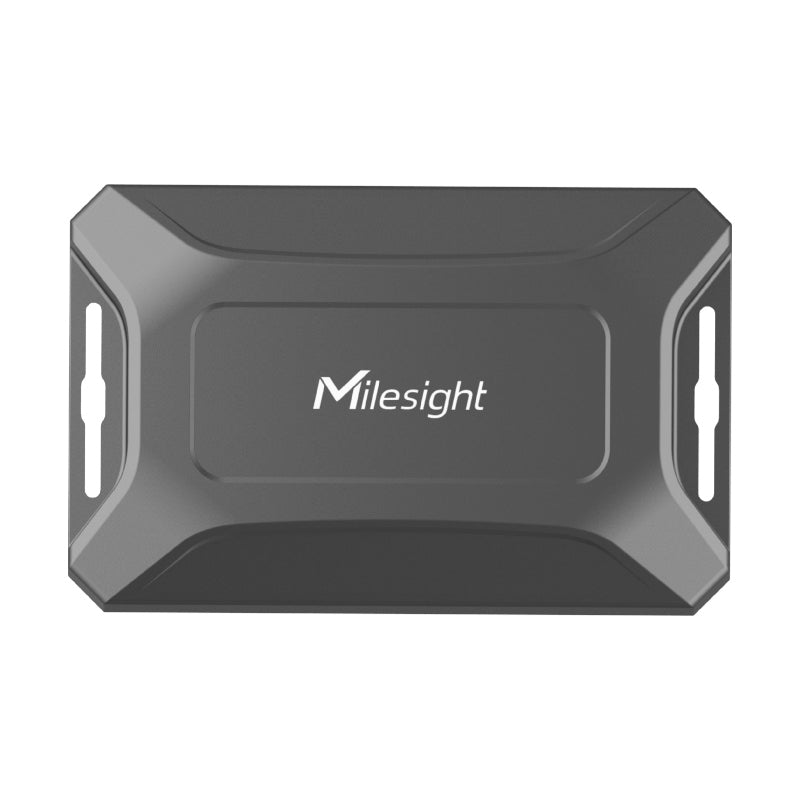

Milesight AT101 LoRaWAN AU915/AS923 IoT Asset Tracker

Milesight AT101 LoRaWAN AU915/AS923 IoT Asset Tracker

AT101-915M

$316.00 NZD
$316.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Milesight AT101 LoRaWAN AU915/AS923 IoT Asset Tracker with GNSS and Wi-Fi Positioning, 3-axis accelerometer and Temperature Sensor
Milesight AT101 LoRaWAN AU915/AS923 IoT GNSS/Wi-Fi Asset Tracker with 3-axis accelerometer and Temperature Sensor. The Milesight AT101 is an exceptional outdoor tracker that utilizes GNSS and Wi-Fi AP MAC Address Scanning to provide highly accurate positioning data. Additionally, it has tilt and temperature sensors for more extensive data collection and applications in various scenarios. The device is designed with IP67 and IK09 ratings to cater to different environments. The AT101 collaborates with Milesight LoRaWAN® gateway and mainstream LoRaWAN® network servers with low power consumption, allowing it to operate for over 15 years with twice-daily reports. By integrating with Milesight LoRaWAN® gateway, Milesight IoT Cloud os the Scopious Network, users can remotely and visually manage all sensor data.



. .

Features
  • Equipped with high-accurate GNSS positioning and cooperate with Wi-Fi positioning
  • Built-in 3-axis accelerometer sensor to monitor device tilt status and movement
  • Equipped with NTC temperature sensor enabling environmental detection
  • IP67 and IK09 rating protections for harsh environment application
  • Built-in replaceable batteries and works for up to over 15 years without replacement
  • Anti-theft design
  • UV protection suitable for outdoor environments.
  • supports Geofencing for targeted messaging to secure the assets and area
  • Switchable modes - motion tracking, periodic tracking, and timing tracking
  • Local Storage for 1000 historical records and supports retransmission to prevent data loss
  • Built-in NFC and Bluetooth for easy configuration
  • Compliant with standard LoRaWAN® gateways and network servers
  • Quick and easy management with Milesight IoT Cloud or the Scopious Network
Details
Model AT101-915M
Frequency AU915 or AS923 switchable
Tx Power 20dBm
Sensitivity -137dBm @300bps
Work Mode OTAA/ABP Class A
GNSS Position Accuracy(CEP) 5.0m (Direct Line of Sight)
Resolution Longitude/Latitude: 0.0001, Altitude: 1m
Time To First Fix Cold Start: 37s Average, Hot Start: 1s Average
Sensitivity Tracking: -167dBm, Reacquisition: -160 dBm, Cold Start: -148dBm, Hot Start: -159 dBm
Wi-Fi Positioning Indoor asset location using Wi-Fi access point scanning (device doesnot connect to Wi-Fi)
Wi-Fi Parameters BSSID, RSSI
Wi-Fi Standard 802.11b/g/n 2.4GHz
Device Motion Status Normal/Tilt
Temperature Range -40 ~ 125°C
Resolution 0.1°C
Operation Power On & Off NFC, Power Button (Internal)
Configuration NFC, Bluetooth® 5.3
Power Supply 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Battery Life(25°C) Twice Daily Location Updates - 15+ Years, Tenth Daily Location Updates - 8+ Years, Hourly location updates – 4+ Years
Operating Temperature -30°C ~ +70°C
Relative Humidity 0 ~ 95% (Non-condensing)
Material & Color PC, Black
Ingress Protection IP67
Impact Protection IK09
Dimension 110 × 70 × 30 mm
Weight 202g (Batteries are Included)
Installation Wall Screw Mounting, 3M Tape Mounting, Cable-tie Mounting
Details
Contains AT101 Tracker, Mounting kit, 3M tape, Warranty card, Quick Start guide.
