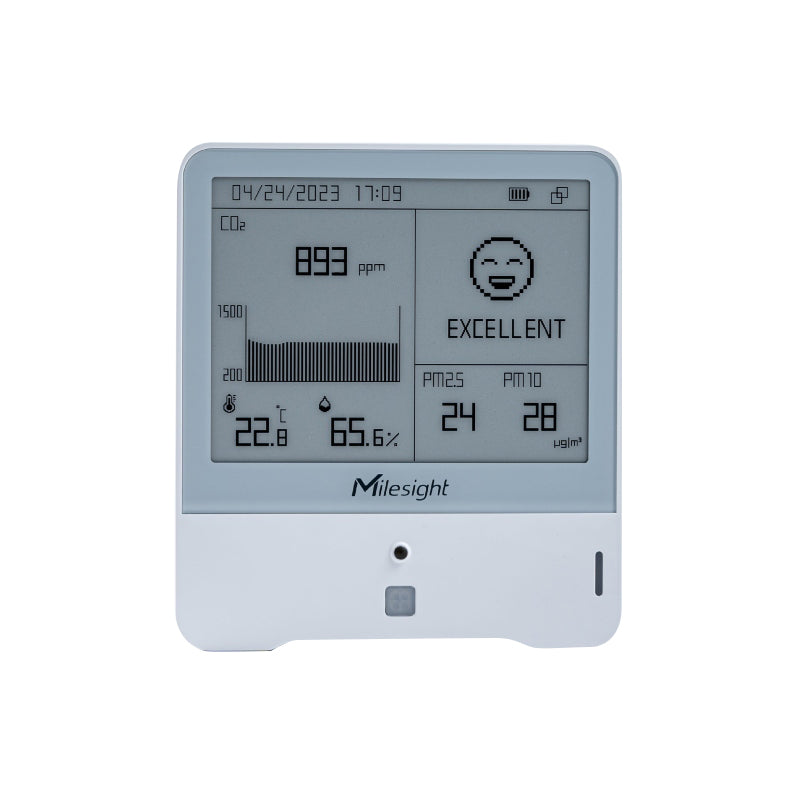

Milesight AM308-915M LoRaWAN 8 in 1 Indoor Ambience Monitoring IoT Sensor with Particle Matter 2.5 and 10

Milesight AM308-915M LoRaWAN 8 in 1 Indoor Ambience Monitoring IoT Sensor with Particle Matter 2.5 and 10

AM308-915M

$929.00 NZD
$929.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock
Milesight AM308-915M LoRaWAN 8 in 1 Indoor Ambience Monitoring IoT Sensor - Temp, Humidity, Light, Motion, CO2, TVOC, Barometric Pressure, PM2.5 and PM10
The Milesight AM308-915M is a compact indoor ambience monitoring IoT sensor for measurement of temperature, humidity, light, CO2 concentration, HCHO level, TVOC, barometric pressure, PM2.5, PM10 and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. AM300 series is widely used for business offices, stores, classrooms, hospitals, homes, etc.



. .

Features
  • Integrated with multiple sensors: humidity, temperature, CO2, light, barometric pressure,
  • Multiple display modes and clear emoticon to easily understand the comfort levels via screen
  • Equipped with traffic LED and buzzer to indicate device status and threshold alarms
  • support more than 20,000 data records store locally
  • Compliant with standard LoRaWAN® gateways and network servers
  • Indoor Ambiance Sensor (Temp, Hum, Light, Motion, CO2, TVOC, Pressure, PM2.5, PM10)
  • Perfect device for Environmental Monitoring for Business, Education and Homes
Details
Model AM307-915M
Frequency AU915 or AS923 switchable
Tx Power 22dBm
Sensitivity -137dBm @300bps
Work Mode OTAA/ABP Class A
Temperature Range Digital CMOSens® technology (MEMS) -20°C - 60°C, Accuracy ± 1°C, Resolution 0.1°C
Humidity Digital CMOSens® technology (MEMS), Range 0% - 100% RH, Accuracy ± 2%, Resolution 0.5% RH
Motion Passive infrared (PIR), Detection Range 80 ° Horizontal, 55 ° Vertical, Range 5 m, Status Vacant/Occupied
Light Photodiode, Range 0-60000 Lux (display as 6 levels, 0-5)
TVOC MOX (MEMS), Range
Barometric Pressure Piezoresistive absolute pressure sensor (MEMS), Range 260 - 1260 hPa, Accuracy ±0.5 hPa, Resolution 0.1 hPa
Carbon Dioxide (CO2) Nondispersive Infrared (NDIR), Range 400 - 5000 ppm, Accuracy
PM2.5,PM10 Range Laser Scattering, Range 0 - 1000 ?g/m3, Accuracy
Display & Configuration 4.2-inch Black & White E-Ink Screen
Button 1 × Power Button + 1 × Reset Button
LED & Buzzer 1 × Traffic Light Status Indicator + 1 × Buzzer
Configuration 1. Mobile App via NFC, 2. PC software via NFC or USB Type-C port
Power Supply 1. 4 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries, 2. 5V/1A by Type-C Port
Battery Life4 (10 min interval) Over 1 Year
Operating Temperature -20°C - 60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity 10% - 90% (non-condensing)
Ingress Protection IP30
Dimension 100.8 × 114 × 22 mm (3.97 × 4.49 × 0.87 in)
Installation 3M Tape Mounting, Wall Screw Mounting, 86 Box Mounting
Regulatory CE, FCC
Environmental RoHS
Details
Contains 1 x AM308, Mounting screws, warranty, QSG. 4× ER14505Li-SOCl2 Batteries
