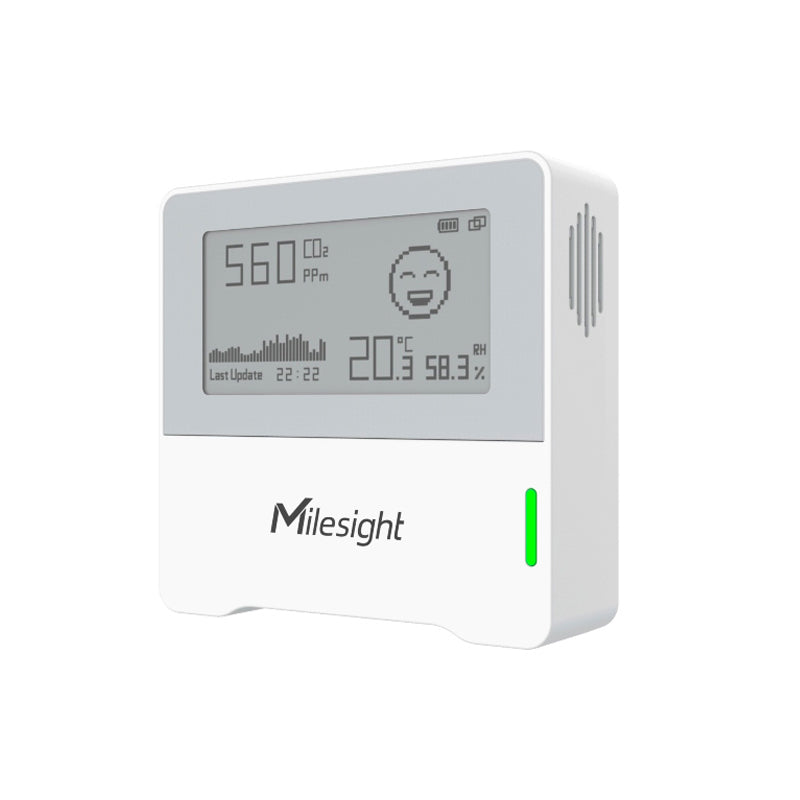

Milesight LoRaWAN IoT AM103 Indoor Ambience Monitoring Sensor - Temp, Humidity and CO2
The Milesight AM103 is a compact indoor ambience monitoring IoT sensor for measurement of temperature, humidity and CO2. These data will be shown on the E-ink screen in real-time, which allow to quantify the indoor environment and comfort. AM103 is widely used for office, store, classroom, hospital, etc. Apart from screen display, sensor data can also be transmitted using LoRaWAN®. With this low-power technology, AM103 can work for more than 3 years with 2 replaceable batteries. Combining with Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely



. .

Features
  • Integrated with multiple sensors: humidity, temperature, CO2
  • Visual data and clear emoticons to understand the comfort level easily via E-Ink Screen
  • Equipped with traffic light LED to indicate device status and threshold alarms
  • More than 3 years battery life
  • Compliant with standard LoRaWAN® gateways and network servers
  • Built-in NFC for easy configuration
  • Perfect device for Environmental Monitoring for Business, Education and Homes
Details
Model AM103
Technology LoRaWAN®
Frequency AU915/AS923-1,2,3,4
Tx Power 22 dBm (915 MHz)
Sensitivity -137dBm @300bps
Mode OTAA/ABP Class A
Temperature Range -20°C to + 70°C
Accuracy 0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C)
Resolution 0.1°C
Humidity Range 0% to 100% RH
Accuracy 10% to 90% RH (± 3%), below 10% and above 90% RH (± 5%)
Resolution 0.5% RH
Carbon Dioxide (CO2) Range 400 to 5000 ppm
Accuracy ± (30 ppm + 3 % of reading)
Resolution 1 ppm
Display AM103: 2.13-inch Black & White E-Ink Screen, AM103L: Not support
Button 1 × Power Button
LED 1 × Traffic Light Status Indicator
Configuration Mobile App via NFC
Power Supply 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries
Operating Temperature -20°C to +60°C (E-Ink Screen: 0°C - 40°C)
Relative Humidity 0% to 95% (non-condensing)
Ingress Protection IP30
Dimension 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in)
Installation Wall Mounting
Details
Contains Sensor, 2 x Batteries, QSG, Mounting pack, Mounting Sticker, Warranty Card
