Milesight

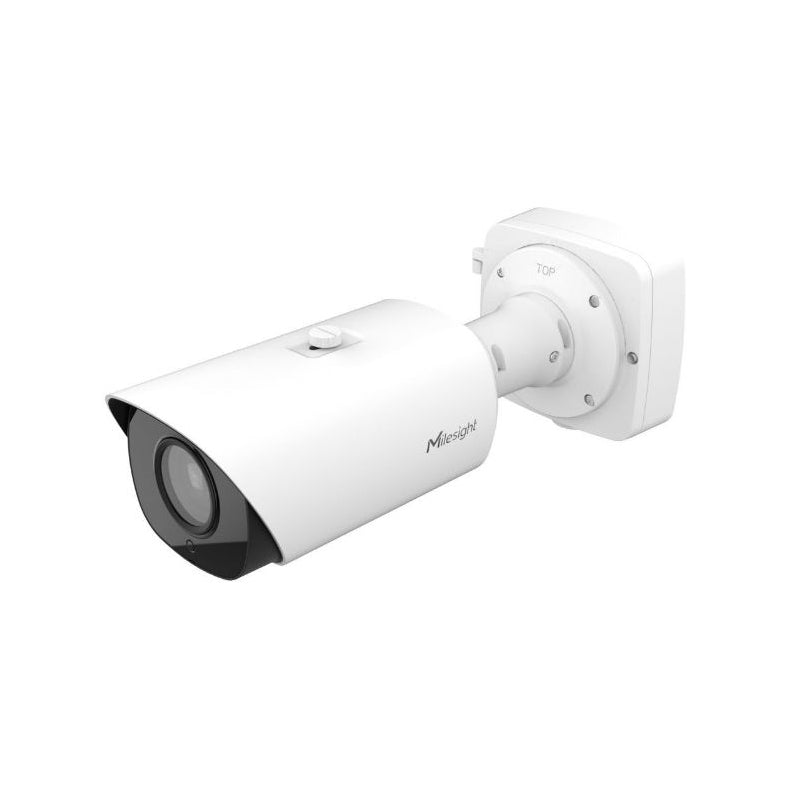

Milesight 5MP OpenVision Pro Bullet Plus Camera

Milesight 5MP OpenVision Pro Bullet Plus Camera

SKU:MS-C5366-FIPKG1

Regular price $655.00 NZD
Regular price Sale price $655.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

In stock

Quantity
Milesight 5MP OpenVision Pro Bullet Plus Camera with Network Optix VMS Server
The Milesight OpenVision Camera Series revolutionizes security by embedding Network Optix VMS Server directly into the camera itself, delivering a VMS-on-edge solution. It provides the full capabilities of a traditional backend VMS while significantly reducing hardware and operational costs. Camera as a server, no NVR and additional server needed!

High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.

The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting. The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 140m. Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.
Features
  • A fully functional Nx Witness server embedded in camera
  • support local recording with 1TB storage capability
  • Enable advanced AI analytics event and metadata for Milesight cameras
  • Data is more secure without streaming video between camera and server
  • Connect directly to Nx Cloud, enables direct communication between camera and client
  • Stay ahead with Nx's latest innovations, including Nx AI Manager and more.
  • vGRID SaferCity Platform Compliant
Details
Product Code MS-C5366-FIPKG1
Product Name 5MP OpenVision Pro Bullet Plus Camera
Min. Illumination Color: Color: 0.007Lux@F1.6 B/W: 0Lux with IR onWDR
Shutter Time 1/100000s?1s
WDR 120dB Super WDR
IR Distance Up to 65m(2.7~13.5mm)
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Lens Motorized 2.7~13.5mm@F1.6 P-Iris
Field of View H104°~H32°/D130°~D40°/V76°~V24° (2.7~13.5mm)
Mount ?14
Focus Control Auto/Manual
Iris Control Auto/Manual (P-Iris)
DORI Distance Wide: D: 51.4m, O: 20.2 m, R: 9.6 m, I: 4.4 m Tele: D: 181 m, O: 73 m, R: 36 m, I: 18 m
Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720)
Secondary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(2048*1536,1600x1200, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(2048*1536,1600x1200, 1280x720, 704x576, 640x480, 640x360, 351x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~8Mbps(CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Video Analysis Intrusion Detection,Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,Line Crossing, Loitering, Object Left, Object Removed
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog,AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & M & S & T, API
Edge Storage support microSD Card Local Storage, up to 1TB (UHS-I Micro SD, A2 standard or above); support SD Card Health Information Query
Edge VMS Single Camera Mode: support to register the maximum number of the camera - up to 1 camera (purchase the license with 1× NX channel) - total bandwidth: Up to 10Mbps Multi-camera Mode: support to register the maximum number of the camera - up to 4 cameras (purchase the license with 4× NX channel) - total bandwidth: Up to 20Mbps. *Al Mode can be enabled for both 1 and 4 camera setups. However, for external connections, only basic video streams are supported, and metadata is not supported.
Working Temperature -40?~60?
Working Humidity 0~95%(Non-condensing)
CPU Dual-core 64-bit Arm CA53 processor
Memory 2GB RAM, 4GB Flash
Power Supply PoE (802.3af) / DC 12V±20%, Dual power supply redundancy
Power Consumption Typical: 4.5W(DC), 5.5W (POE) MAX: 7.8W (With IR on, DC), 9.6W (With IR on, POE)
Housing Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance
Surge Protection 4KV
Weight 1630g
Dimensions 301mmX108mmX126mm
Warranty 3 Years
Details
Contents Warranty card, QSG
Power Supply Not Included
View full details
