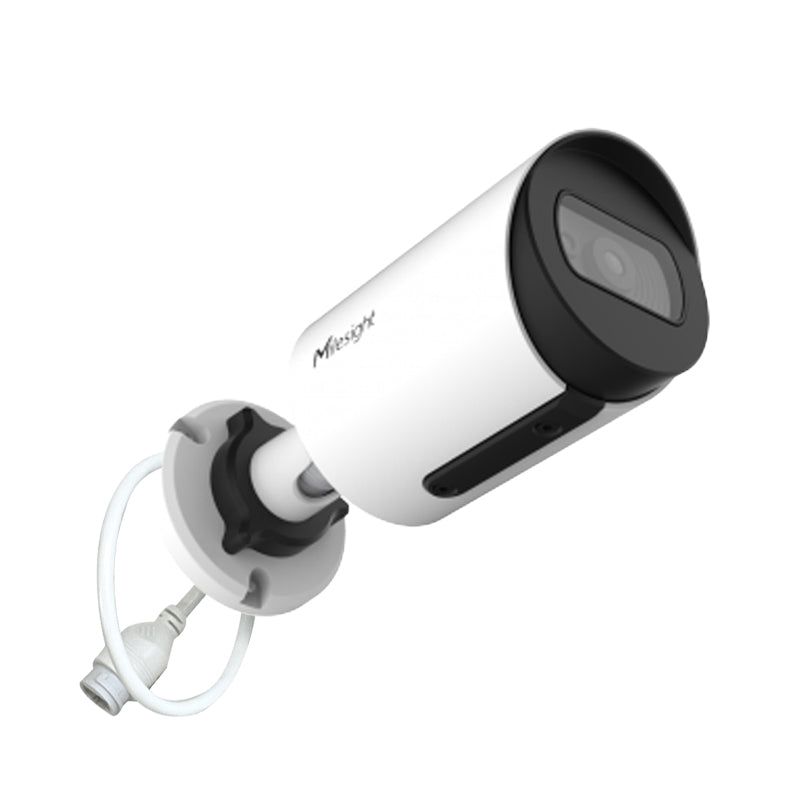

Milesight 5MP NDAA AI Color+ Vandal-proof Mini Bullet Network Camera - Cable out version

Milesight 5MP NDAA AI Color+ Vandal-proof Mini Bullet Network Camera - Cable out version

SKU:MS-C5364-UPD-CO

Regular price $288.00 NZD
Regular price Sale price $288.00 NZD
Sale Sold out
Shipping calculated at checkout.

* All prices exclude GST & Freight, Calculated at checkout - supply only*

Out of stock

Quantity
Milesight 5MP NDAA AI Color+ Vandal-proof Mini Bullet Network Camera - Cable out version
The Milesight AI Color+ Vandal-proof Mini Bullet Camera Series feature an ultra-mini size, stylish design and easy installation. The Milesight AI Weather-proof Mini Security Cameras not only aspire to protect your security with top-notch megapixel video quality, but also fit for your sleek decoration taste. These cameras are perfect for mounting under a soffit around your home or business and offer full colour viewing and recording in the dark!

Full Colour images in the dark! Combined with Built-in warm illuminator, which could deliver colorful and high resolution images in the dark or at night for the majority of monitoring scenarios, like outdoor area, parking lot, retails and so on.

Milesight NDAA AI Color+ Network Cameras are equipped with super large apertures (up to F1.0) that allow 2.2 times more light to pass through than normal cameras, as the larger aperture could let more light passes through to the sensor, which tremendously improving image exposure. In low-light scenarios, it works to guarantee full-time and excellent image performance.

Flexible and Automatic Illuminator On/Off Control: Equipped with intelligent illuminator with Max. 30m illumination distance, which could not only turn on and off the warm light, but also change the luminance of the supplement lighting automatically, achieving a flexible way for the monitoring control.

Powered by an advanced AI engine, Milesight's new generation of video analytics boasts higher accuracy with a pre-trained deep learning model and will continuously learn new algorithms automatically. Milesight cameras can intelligently filter objects to focus on detecting humans and vehicles, this feature coupled with multiple event rules (including Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering and Object Left, Object Removed) ensures access to diverse deployments, allowing a smarter and safer world.

Milesight AI Camera Series feature industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

Milesight AI Camera Series feature Super Wide Dynamic Range. Sensor-based WDR technology allows the camera to record greater scene details with true colour reproduction even under extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB. Super WDR greatly reduces noisy points in the image giving a clearer picture for fast moving objects.

Flexible storage options for recording and snapshots include NAS(support NFS, SMB/CIFS) and microSD/SDHC/SDXC Card storage up to 256G.

Milesight, as a high-tech surveillance solution provider and member of ONVIF, devotes to conform to ONVIF standards, delivering the most-advanced innovations and offering flexible choices for customers worldwide. Cameras support the following ONVIF Profiles: G & Q & S & T, API.

Milesight NDAA Compliant Products, which do not use or deploy critical components including SoCs produced by NDAA banned component vendors, are recommended for enterprises and critical applications where compliance is essential.
Features
  • Ultra Mini Size
  • Full colour image at night using white built in white LEDs!
  • Fixed 2.8mm Lens
  • IR Distance up to 30m
  • 120dB Super WDR
  • Junction Box Version
  • Suitable for outdoor applications (IP67 & IK10)
  • ONVIF Profile support for profiles G & Q & S & T, API
  • Flexible recording storage options including Network Attached Storage (NAS) and microSD Card up to 256GB
  • Intelligent Analytics: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
  • vGRID SaferCity Platform Compliant
Details
Model 2MP: MS-C2964-(R)UPD; 5MP: MS-C5364-UPD; 4K: MS-C8164-UPD
Image Sensor 1/2.8? Progressive Scan CMOS
Min. Illumination 2MP: Color: 0.001Lux@F1.0, B/W: 0Lux with White LED on; 5MP: Color: 0.002Lux@F1.0, B/W: 0Lux with White LED on; 4K: Color: 0.005Lux@F1.0, B/W: 0Lux with White LED on
WDR 120dB Super WDR
Lens 2.8mm
Mount M12
Field of View 2MP: H109°/D125°/V61°(2.8mm); 5MP: H104°/D129°/V78°(2.8mm); 4K: H108°/D125°/V60°(2.8mm)
IR Distance Up to 30m
Day/Night Mode Day/Night/Auto/Customize/Schedule
Max.Image Resolution 2MP: 1920x1080; 5MP: 2592x1944; 4K: 3840x2160
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Privacy Masking Up to 4 areas
ROI Up to 8 areas
Image Setting Brightness/Contrast/Saturation/Sharpness
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O N/A
Alarm I/O N/A
Network Storage NAS(support NFS, SMB/CIFS), ANR
Protocol IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio N/A
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Storage support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP support Yes, Voice & Video-over-IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
Working Temperature -40°C~60°C
Working Humidity 0~90%(Non-condensing)
Power Method PoE (802.3af)
Power Consumption 2MP: 3W MAX, 5W MAX (With White LED on); 5MP: 3W MAX, 5W MAX (With White LED on); 4K: 4W MAX, 6W MAX (With White LED on)
Housing Up to IP67-rated for Weather-resistant Performance; Vandal-proof IK10-rated Metal Housing
Dimensions 97mmX74mmX180mm (Junction Box Version)
Accessories A01 Pole Mount, A03 External Corner Bracket
Details
Contents Warranty card, QSG, Wall mount, mounting screws and tightening tool included
Power Supply Not included
